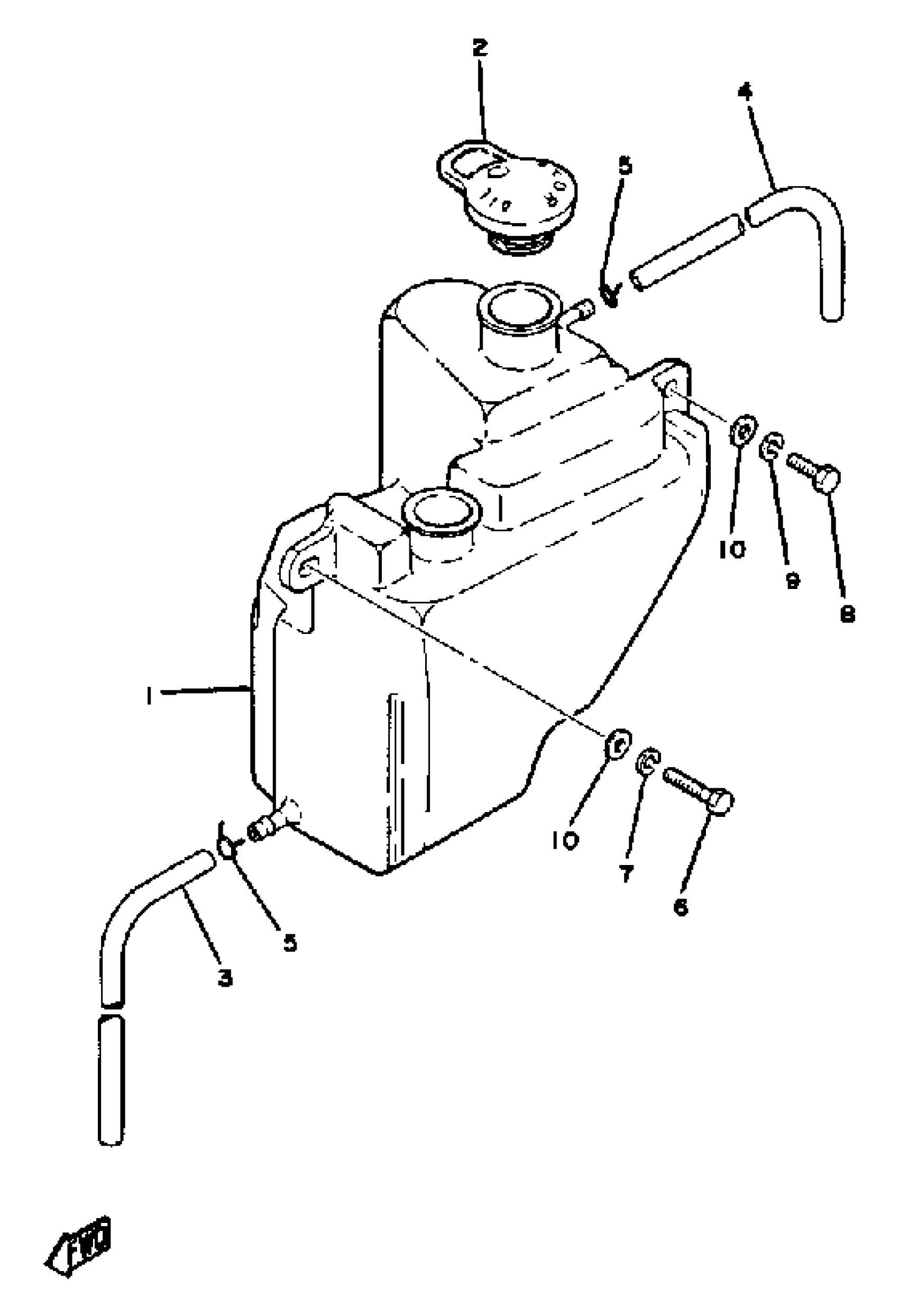

Yamaha DT100H (DT100H) 1981 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

1T9-21751-00-00

Unavailable

2

BODY, CAP

1T9-21771-01-00

Unavailable

3

HOSE (L420)

90445-092K1-00

$10.47

4

HOSE (L1500)

90445-090F6-00

$24.98

5

CLIP 101235600

90467-08003-00

$5.88

6

BOLT, HEXAGON

97017-06025-00

$2.78

7

WASHER, SPRING

92995-06100-00

$2.95

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE

90201-06380-00

$0.54
