1978 Yamaha DT100E (DT100E) Taillight Diagram

← All diagrams

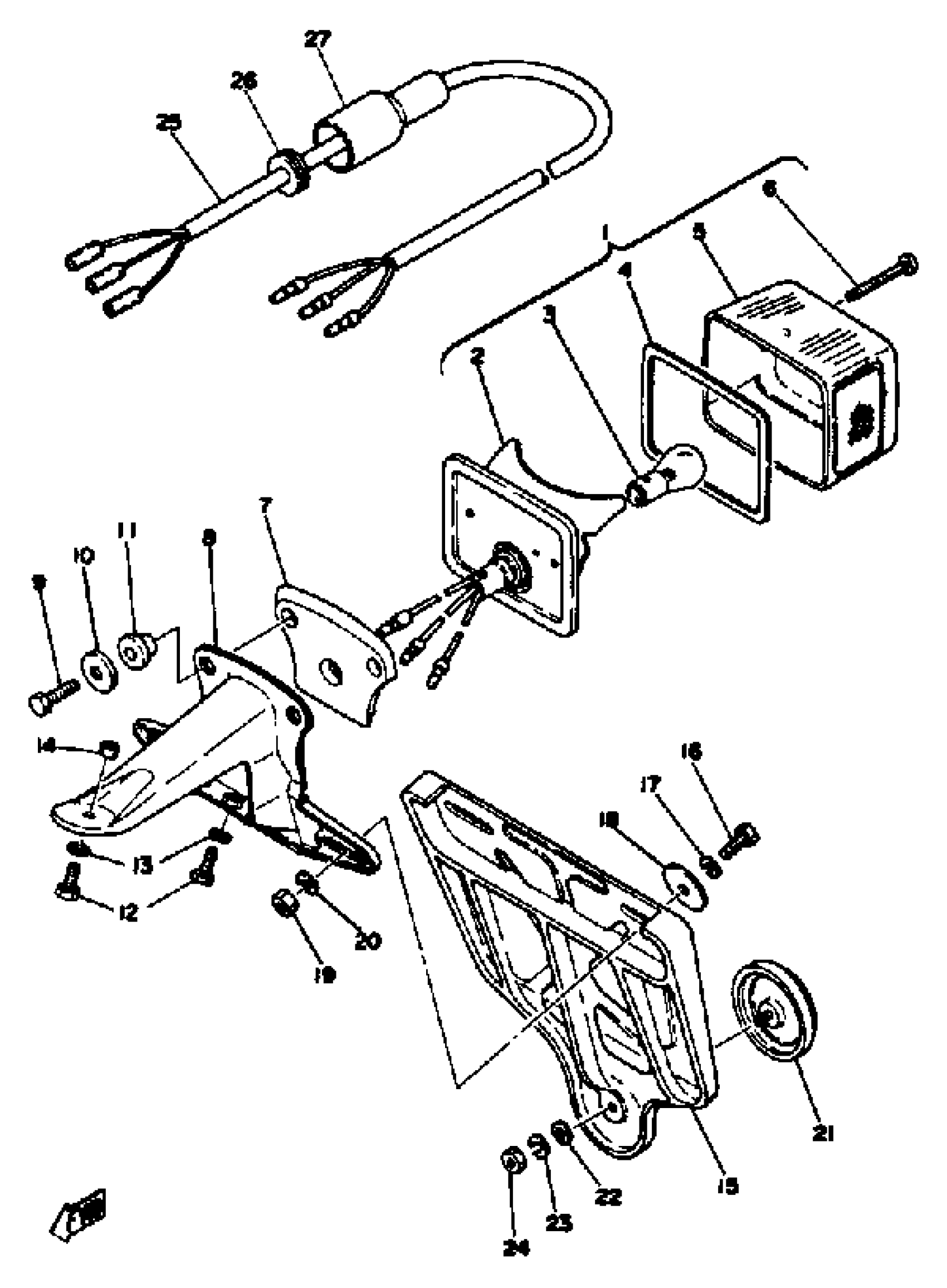

Find the part on the Taillight diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT100E (DT100E) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

1M1-84510-60-00

1
Out of stock

2

. BASE, TAILLIGHT

1M1-84511-60-00

1
Out of stock

3

. BULB

1M1-84514-60-00

1
Out of stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

5

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

6

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

7

SEAT, BASE

1M1-84512-60-00

—
Out of stock

8

BRACKET, LICENCE

(1T9-84551-60-33)

1
Out of stock

9

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

10

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

11

DAMPER

1M1-84527-60-00

1
Out of stock

12

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

BRACKET, REFLECT 1

1M1-85132-62-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER PLATE 248217570000

90201-06074-00

—

$6.29

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

REFLECTOR, REAR 1

1M1-85131-10-00

1
Out of stock

22

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

23

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

24

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

25

CORD, TAILLIGHT

1T9-84517-00-00

1
Out of stock

25

CORD, TAILLIGHT

(3A3-84517-00-00)

1
Out of stock

26

GROMMET

90480-12529-00

1
Out of stock

27

COVER, CONNECTER

(538-82599-10-00)

1
Out of stock
