1978 Yamaha DT100E (DT100E) Handle Switch Lever Diagram

← All diagrams

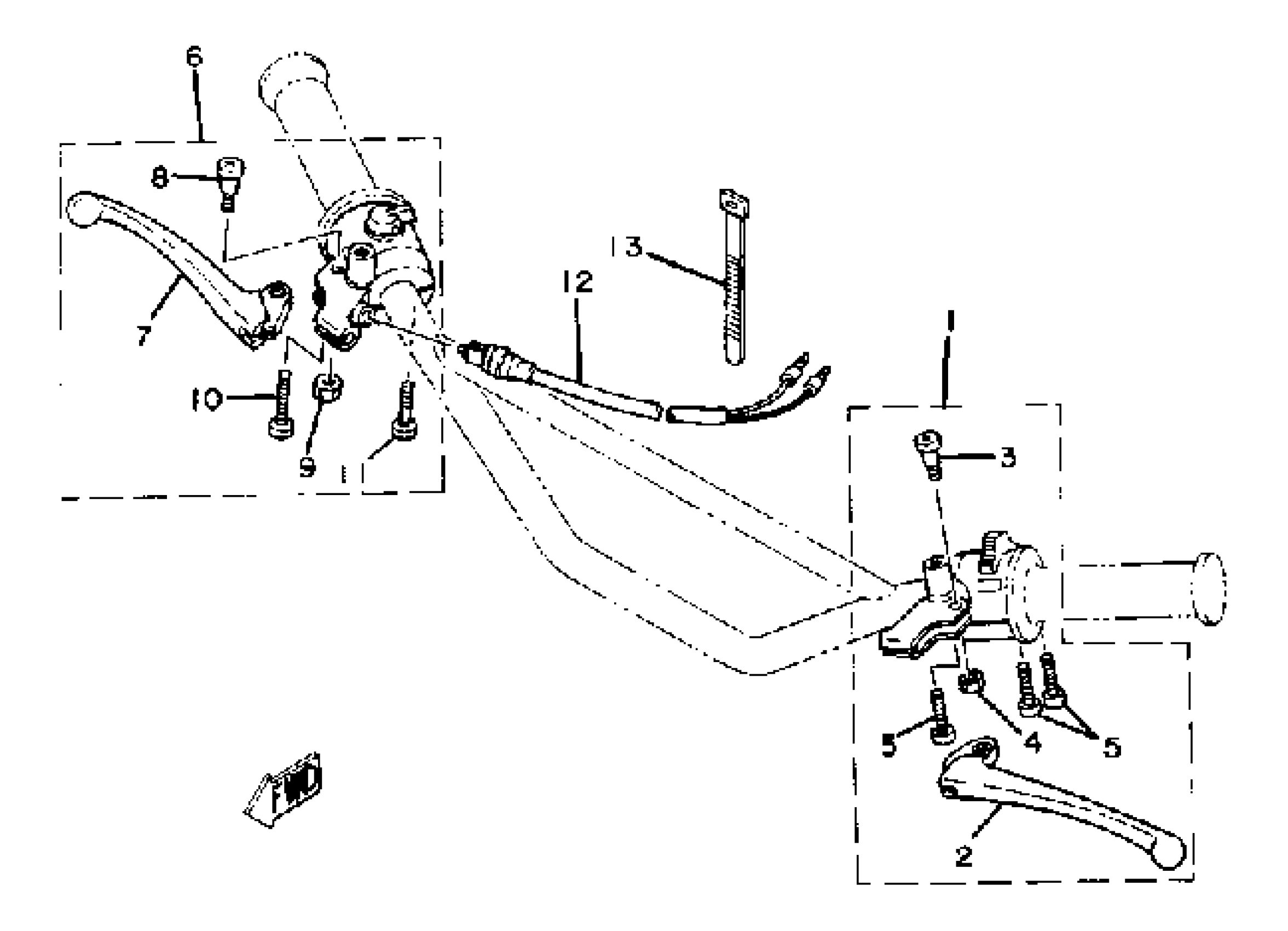

Find the part on the Handle Switch Lever diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT100E (DT100E) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSEMBLY 1

3A3-82910-00-00

1
Out of stock

2

LEVER (L.H)

137-83912-02-38

—

$23.55

In stock

3

SCREW (1E2)

90149-05120-00

1

$6.58

In stock

4

NUT, U

95617-05100-00

1

$6.68

In stock

5

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

6

LEVER HOLDER ASSEMBLY 2

1T9-82920-X0-00

1
Out of stock

7

LEVER (R.H)

2N3-83922-00-00

1

$26.28

In stock

8

SCREW (1E2)

90149-05120-00

1

$6.58

In stock

9

NUT, U

95617-05100-00

1

$6.68

In stock

10

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

13

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
