1978 Yamaha DT100E (DT100E) Meter Diagram

← All diagrams

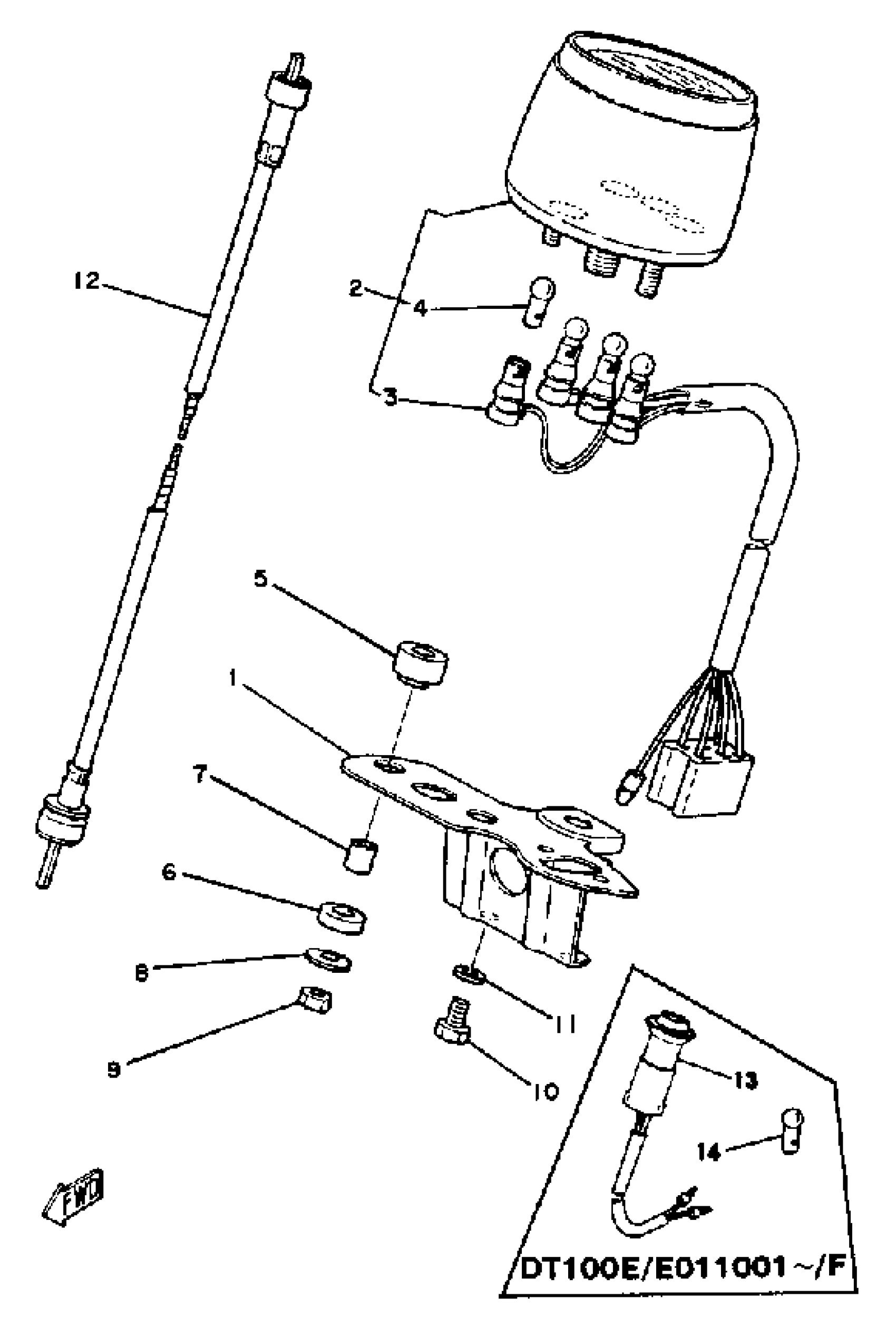

Find the part on the Meter diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT100E (DT100E) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

1T9-83519-00-98

1
Out of stock

2

SPEEDOMETER ASSEMBLY

(1T9-83510-60-00)

1
Out of stock

2

SPEEDOMETER ASSEMBLY

(3A3-83510-A0-00)

1
Out of stock

3

SOCKET CORD ASSEMBLY

(1K8-83520-00-00)

1
Out of stock

3

SOCKET CORD ASSEMBLY

(3A3-83520-00-00)

1
Out of stock

4

BULB,(6V3W)

122-83516-10-00

1
Out of stock

5

DAMPER

(1M3-83513-00-00)

1
Out of stock

6

DAMPER 2

355-83526-00-00

1

$2.25

In stock

7

COLLAR

355-83522-00-00

1
Out of stock

8

WASHER, PLATE (371)

90201-06412-00

1

$5.38

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

SPEEDOMETER CABLE

2A1-83550-10-00

1
Out of stock

13

PILOT LIGHT ASSEMBLY

1T9-84101-60-00

1
Out of stock

14

BULB,METER(6V1.5W)

104-83517-10-00

—

$7.43

In stock
