1974 Yamaha DT100A (DT100A) Headlight Meter Diagram

← All diagrams

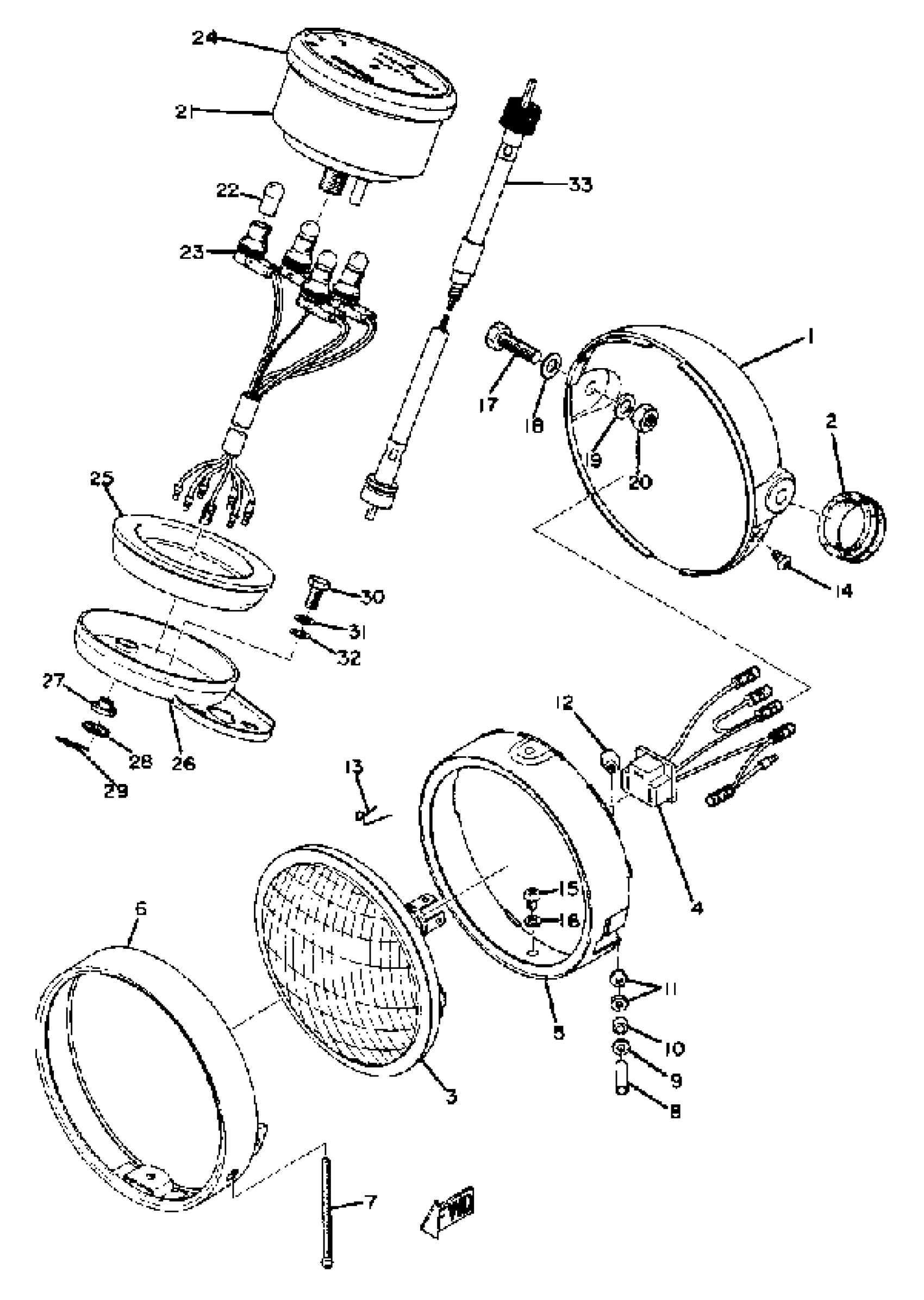

Find the part on the Headlight Meter diagram for your 1974 Yamaha DT100A (DT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT100A (DT100A) Headlight Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(437-84130-61-20)

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

LENS ASSEMBLY

437-84120-62-00

1
Out of stock

4

SOCKET, CORD

261-84312-61-00

1
Out of stock

5

RING, RETAINING

(437-84195-62-00)

1
Out of stock

6

RIM, HEADLIGHT

(437-84115-62-00)

1
Out of stock

7

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

8

COLLAR, SCREW

438-84133-60-00

1
Out of stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

10

SPACER

168-84328-60-00

1
Out of stock

11

NUT(6TA)

95307-04600-00

1

$6.69

In stock

12

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

13

SPRING, REFLECTOR SET

148-84324-00-00

1

$6.45

In stock

14

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

15

. SCREW

438-84194-60-00

1
Out of stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

BOLT (682)

97013-08025-00

—

$6.80

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT(6L2)

95333-08600-00

—

$3.20

In stock

21

SPEEDOMETER ASSEMBLY

(437-83510-31-00)

1
Out of stock

22

BULB,(6V3W)

122-83516-10-00

1
Out of stock

23

SOCKET CORD ASSEMBLY

(437-83520-30-00)

1
Out of stock

24

DAMPER

(437-83513-00-00)

1
Out of stock

25

DAMPER

(438-83592-00-00)

1
Out of stock

26

DAMPER

437-83523-00-00

1
Out of stock

27

DAMPER

437-83523-00-00

1
Out of stock

28

WASHER, SPECIAL

437-83524-00-00

1
Out of stock

29

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock
