1974 Yamaha DT100A (DT100A) Handle Wire Diagram

← All diagrams

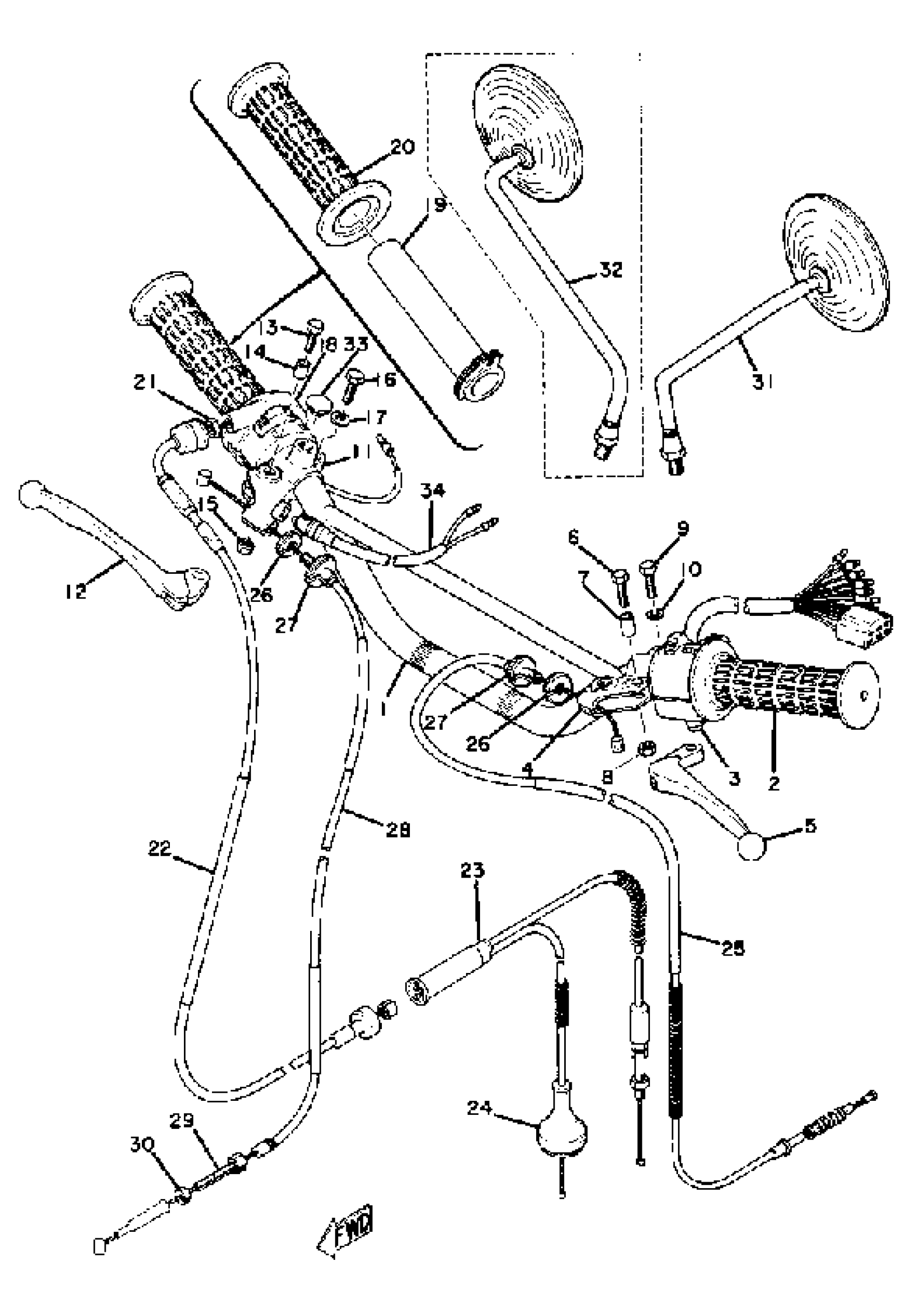

Find the part on the Handle Wire diagram for your 1974 Yamaha DT100A (DT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT100A (DT100A) Handle Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSEMBLY 1 (360-82910-00)

360-82910-02-00

1
Out of stock

1

HANDLEBAR

438-26111-00-00

1
Out of stock

2

GRIP LH

214-26241-00-00

1
Out of stock

2

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

3

SWITCH, HANDLE 4

438-83972-61-00

1
Out of stock

4

—

$24.57

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

NUT(650)

95380-06700-00

1

$6.17

In stock

9

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

11

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

12

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

13

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

14

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

SWITCH, HANDLE 1

1R6-83976-01-00

—
Out of stock

19

TUBE, GUIDE.

434-26243-00-00

—
Out of stock

20

GRIP (R.H)

1A0-26242-01-00

—
Out of stock

21

NUT, HEXAGON

90170-10038-00

—
Out of stock

22

CABLE, THROTTLE 1

437-26311-02-00

1
Out of stock

23

CABLE, THROTTLE 2

437-26312-01-00

1
Out of stock

24

. CAP, RUBBER

437-26329-00-00

1
Out of stock

25

CABLE, CLUTCH

437-26335-01-00

1
Out of stock

26

NUT

90179-08030-00

—

$3.78

In stock

27

BOLT

90123-08002-00

—

$8.93

In stock

28

CABLE, BRAKE

437-26341-01-00

1
Out of stock

28

CABLE, BRAKE

437-26341-02-00

1
Out of stock

29

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

30

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

31

MIRROR ASSEMBLY LH

341-26290-10-00

1
Out of stock

32

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock

33

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

34

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock
