1968 Yamaha DT1 (DT1) Transmission Diagram

← All diagrams

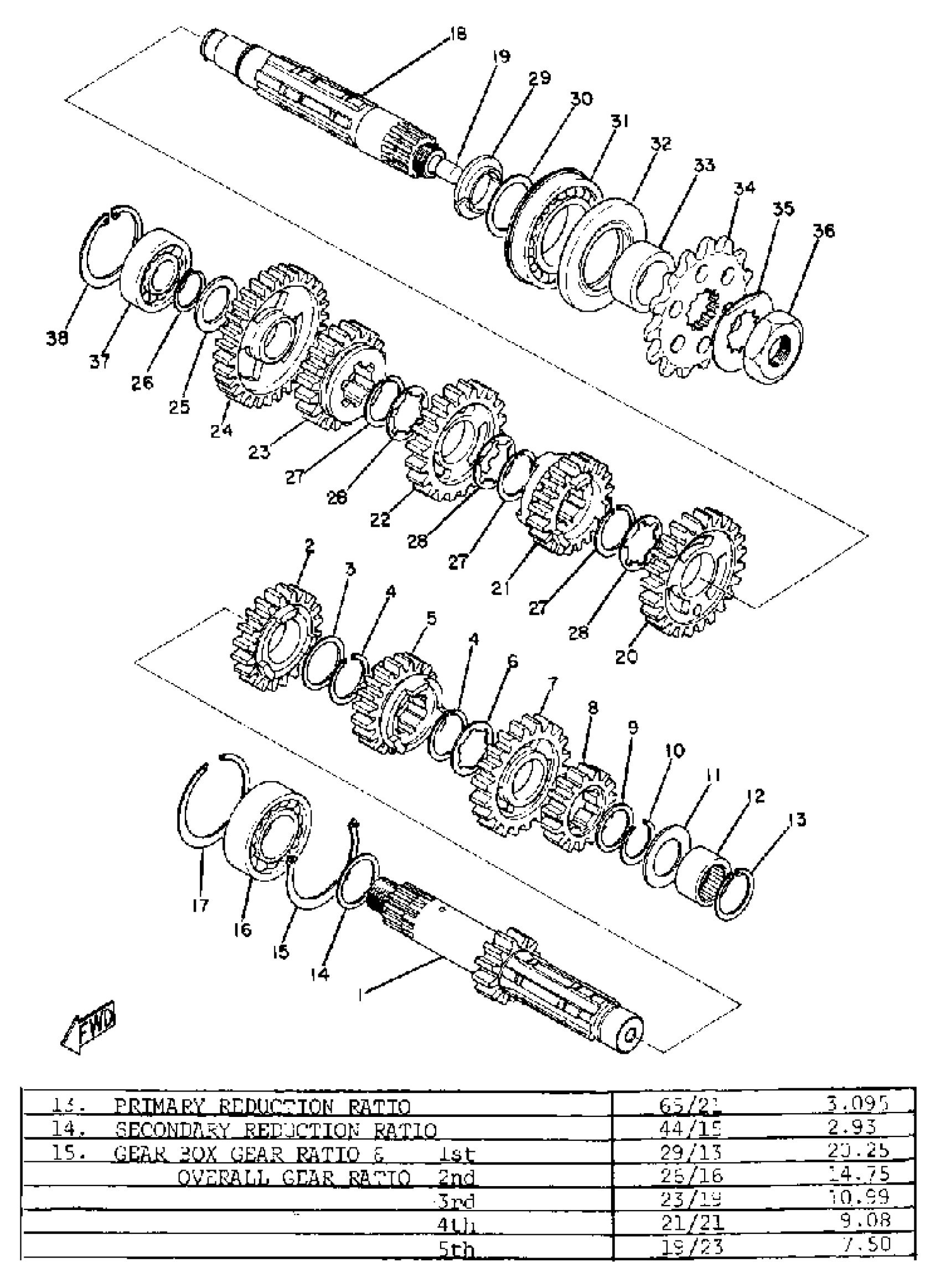

Find the part on the Transmission diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1968 Yamaha DT1 (DT1) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, 3RD PINION

(214-17131-01-00)

1
Out of stock

1

MAIN AXLE ASSEMBLY

(214-17401-00-00)

1
Out of stock

1

AXLE, MAIN

(214-17411-00-00)

1
Out of stock

1

SPROCKET, DRIVE (14T)

9383E-14215-00

1
Out of stock

2

GEAR, 4TH PINION

(214-17141-00-00)

1
Out of stock

2

DRIVE AXLE ASSEMBLY

(214-17402-00-00)

1
Out of stock

2

SPROCKET, DRIVE

4DN-17460-00-00

—
Out of stock

3

WASHER PLATE 152172260000

90201-25490-00

1
Out of stock

3

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

1
Out of stock

4

CIRCLIP (4L0)

93440-25084-00

1
Out of stock

5

GEAR,3RD PINION

214-17131-01-00

1
Out of stock

6

WASHER, SPEC''L SHAP

(90209-21080-00)

1
Out of stock

7

GEAR,3RD WHEEL

214-17231-01-00

1
Out of stock

8

GEAR, 2ND PINION

(214-17121-00-00)

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

10

CIRCLIP(1EY)

99009-19400-00

—
Out of stock

11

SHIM 1

137-17427-00-06

1
Out of stock

12

BEARING

93315-22004-00

1
Out of stock

13

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

14

SHIM 1

156-17417-00-01

1
Out of stock

14

SHIM 1 (25.1-31-0.2)

156-17417-00-02

1
Out of stock

14

SHIM 1

156-17417-00-03

1
Out of stock

15

CIRCLIP

(214-17474-00-00)

1
Out of stock

16

BEARING

93306-20503-00

1
Out of stock

17

CIRCLIP, INNER

(93450-52014-00)

1
Out of stock

18

AXLE, DRIVE

(214-17421-00-00)

1
Out of stock

19

. PLUG, BLIND

214-17481-00-00

1
Out of stock

20

GEAR, 2ND WHEEL

(214-17221-00-00)

1
Out of stock

21

GEAR, 3RD PINION

(214-17131-01-00)

1
Out of stock

22

GEAR, 3RD WHEEL

(214-17231-01-00)

1
Out of stock

23

GEAR, 4TH WHEEL

(214-17241-00-00)

1
Out of stock

24

GEAR, 1ST WHEEL

(214-17211-00-00)

1
Out of stock

25

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

26

CIRCLIP(1EY)

99009-19400-00

—
Out of stock

27

CIRCLIP (4L0)

93440-25084-00

1
Out of stock

28

WASHER, SPEC''L SHAP

(90209-21080-00)

1
Out of stock

29

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

30

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

30

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

31

BRG,R-B 6305 62MM 225G NK

93306-30504-00

—
Out of stock

32

OIL SEAL (35X62X6-371)

93102-35109-00

—
Out of stock

33

COLLAR

(90387-25193-00)

1
Out of stock

34

SPROCKET, DRIVE (13T)

9383E-13216-00

—
Out of stock

35

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

36

NUT 152174630000

90179-18020-00

—
Out of stock

37

BRG,R-B 6203 42MM 70G KY

93306-20306-00

—
Out of stock

38

CIRCLIP, INNER

(93450-40001-00)

1
Out of stock
