1968 Yamaha DT1 (DT1) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

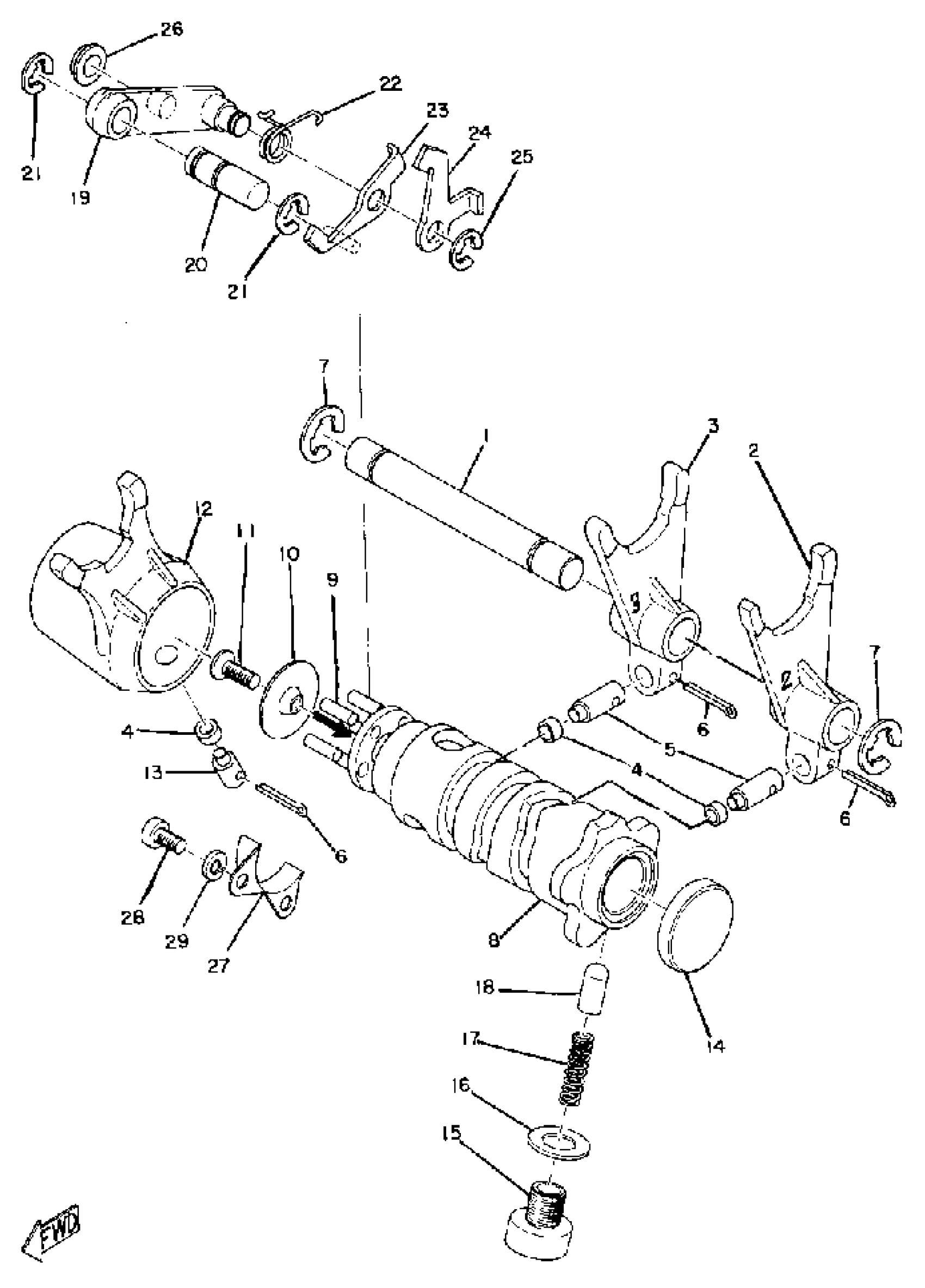

1968 Yamaha DT1 (DT1) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFTER ASSEMBLY

(214-18500-01-00)

1
Out of stock

1

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

1
Out of stock

1

CAM, SHIFT

(214-18541-02-00)

1
Out of stock

1

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

1

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

2

FORK, SHIFT 2

214-18512-00-00

1
Out of stock

2

PLATE, STOPPER

(278-18141-00-00)

1
Out of stock

3

FORK, SHIFT 3

214-18513-00-00

1
Out of stock

3

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

4

PIN,SPEC'L SHAPE

90249-05035-00

1
Out of stock

5

PIN, SPEC''L SHAPE (214-18552-00)

90249-05042-00

1
Out of stock

6

PIN, COTTER

91490-25020-00

1

$2.94

In stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

CAM, SHIFT

(214-18541-02-00)

1
Out of stock

10

PLATE, SIDE 1

214-18561-00-00

1
Out of stock

11

SCREW, FLAT HEAD

92701-05015-00

1
Out of stock

12

FORK, SHIFT 1

214-18511-00-00

1
Out of stock

13

PIN, SPEC''L SHAPE

(90249-05041-00)

1
Out of stock

14

PLUG, SPEC''L SHAPE

(90338-32031-00)

1
Out of stock

15

BOLT (59W)

90109-127A3-00

1
Out of stock

16

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

17

SPRING, COMPRESSION

90501-09050-00

1
Out of stock

18

STOPPER, CAM

137-18547-00-00

1
Out of stock

19

BRACKET

(214-18128-00-00)

1
Out of stock

20

AXLE, PAWL HOLDER

(214-18188-00-00)

1
Out of stock

21

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

22

SPRING, TORSION

90508-08007-00

1
Out of stock

23

LEVER, SHIFT 4

(214-18152-00-00)

1
Out of stock

24

LEVER, SHIFT 3

(214-18151-00-00)

1
Out of stock

25

CIRCLIP

99080-07600-00

1

$2.89

In stock

26

ROLLER, SHIFT LEVER

214-18178-00-00

1
Out of stock

27

GUIDE

214-18179-00-00

1
Out of stock

28

SCREW, PAN HEAD

(92503-05012-00)

1
Out of stock

29

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
