1968 Yamaha DT1 (DT1) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

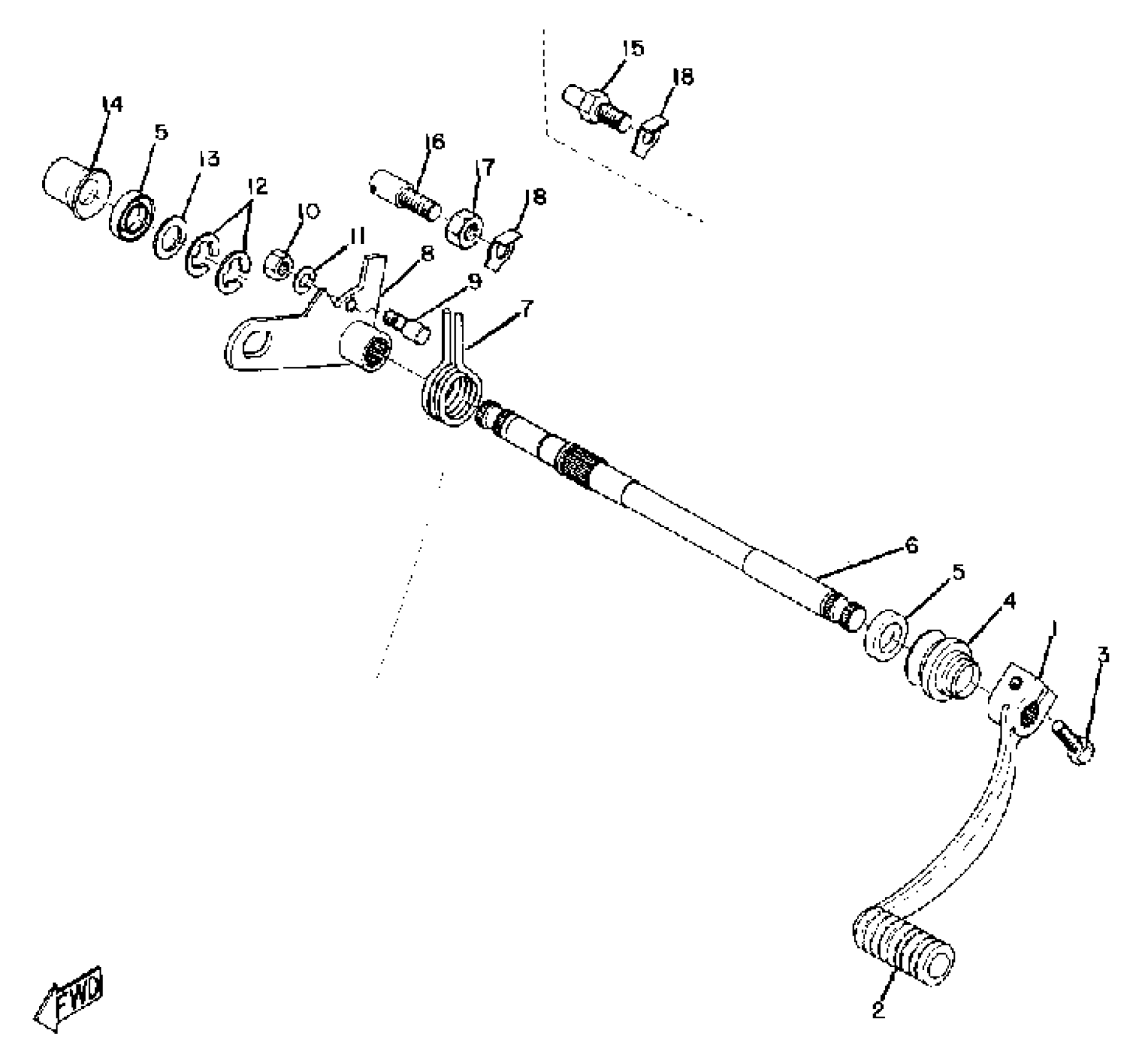

1968 Yamaha DT1 (DT1) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

214-18111-01-00

1
Out of stock

1

SCREW 214181860000

90149-06017-00

1
Out of stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

4

BOOT

214-18131-00-00

1
Out of stock

5

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

6

SHAFT, SHIFT

214-18125-01-00

1
Out of stock

7

SPRING TORSION 214181240000

90508-32052-00

1
Out of stock

8

LEVER, SHIFT 1

(214-18121-01-00)

1
Out of stock

9

SCREW, SPEC''L SHAPE

(90149-06015-00)

1
Out of stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

CIRCLIP

99006-10600-00

1

$6.91

In stock

13

WASHER,PLATE

90201-12168-00

1
Out of stock

14

COVER, SHIFT SHAFT

(214-18129-00-00)

1
Out of stock

15

STOPPER, SCREW 001

(214-18127-00-00)

1
Out of stock

16

SCREW, ADJUSTING (367)

90149-08094-00

—

$4.91

In stock

17

. NUT

95380-08700-00

1

$3.07

In stock

18

WASHER

90215-08015-00

1
Out of stock
