1972 Yamaha DS7 (DS7) Carburetor Diagram

← All diagrams

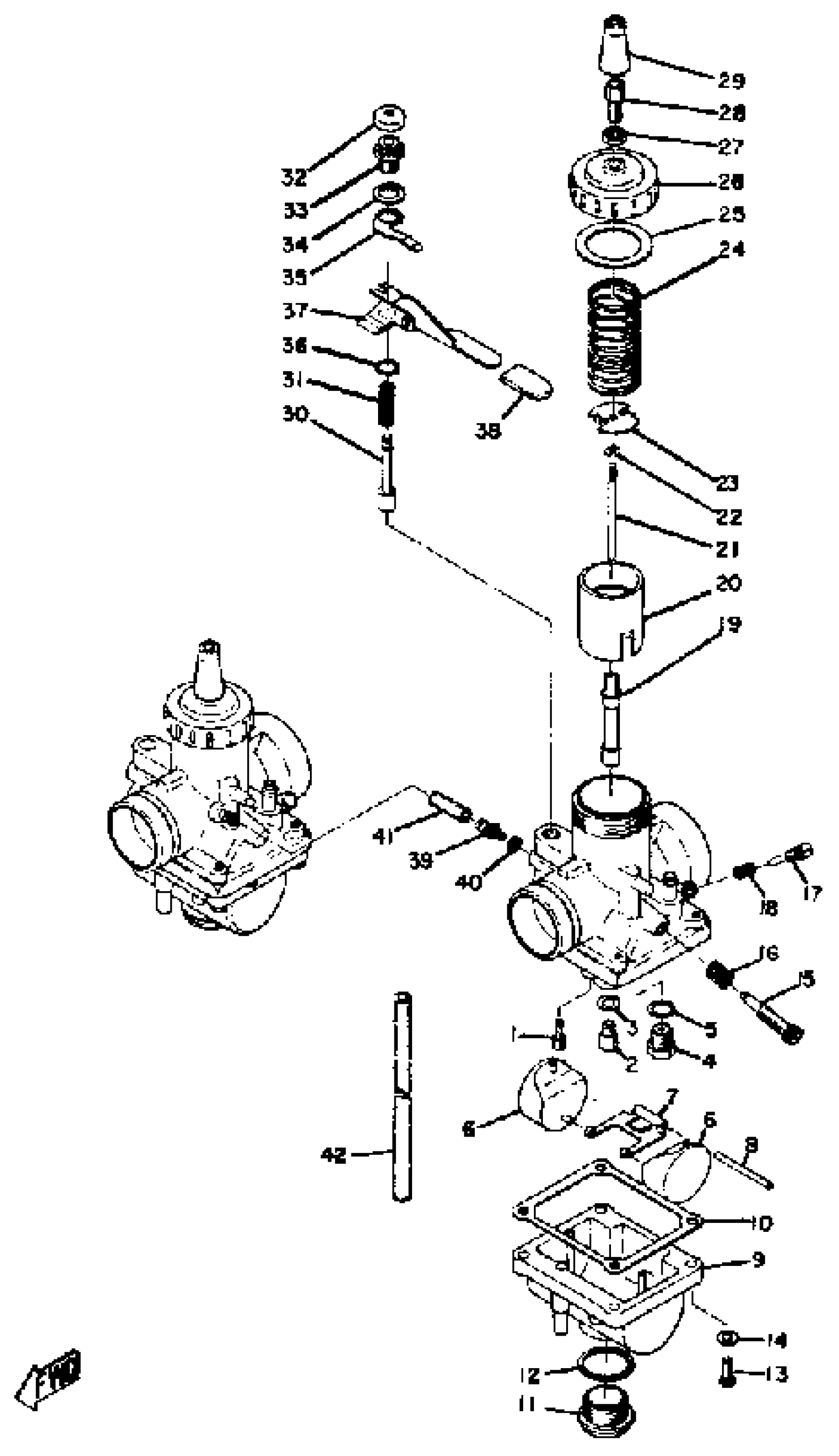

Find the part on the Carburetor diagram for your 1972 Yamaha DS7 (DS7), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha DS7 (DS7) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PIL0T (# 30)

193-14142-30-A0

—
Out of stock

1

. JET, PILOT #40

193-14142-40-A1

1
Out of stock

1

VALVE, THROTTLE 2

(278-14113-20-00)

1
Out of stock

1

BODY, FLOAT CHMBR 2

(278-14183-00-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(280-14101-01-00)

1
Out of stock

2

JET, MAIN #100

137-14143-20-00

—

$7.34

In stock

2

JET, MAIN #110

137-14143-22-A0

1
Out of stock

2

. JET, MAIN #120

137-14143-24-00

1
Out of stock

2

JET, MAIN #130

137-14143-26-A0

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(280-14102-01-00)

1
Out of stock

3

WASHER,MAIN JET

137-14153-00-00

1
Out of stock

4

VALVE SEAT ASSY

168-14190-20-00

1

$31.82

In stock

5

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

6

. FLOAT

280-14185-00-00

1
Out of stock

7

. ARM, FLOAT

280-14187-00-00

1
Out of stock

8

PIN, FLOAT

127-14186-00-00

—

$6.23

In stock

9

BODY, FLOAT CHMBR 1

(278-14181-00-00)

1
Out of stock

10

. GASKET, FLOAT CHAMBER

278-14184-00-00

1
Out of stock

11

. PLUG, SCREW

(278-14115-00-00)

1
Out of stock

12

WASHER,SCREW PLUG

278-14117-00-00

—

$7.80

In stock

13

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

15

THROTTLE SCREW SET

40T-14103-00-00

—

$15.58

In stock

16

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

17

AIR SCREW SET

23X-14104-00-00

—

$8.52

In stock

18

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

19

NOZZLE, MAIN

(280-14141-30-00)

1
Out of stock

20

VALVE, THROTTLE 1

(278-14112-20-00)

1
Out of stock

21

. NEEDLE

168-14116-07-00

1
Out of stock

22

CLIP

3FA-14137-00-00

—

$6.80

In stock

23

. SEAT, SPRING

256-14936-00-00

1
Out of stock

24

. SPRING, THRTL VALVE

204-14131-00-00

1
Out of stock

25

GASKET

246-14126-00-00

—

$6.57

In stock

26

. TOP, MIXING CHAMBER

802-14158-00-00

1
Out of stock

27

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

28

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

29

CAP

8A7-14169-00-00

—

$15.80

In stock

30

. PLUNGER, STARTER

278-14171-00-00

1
Out of stock

31

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

32

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

33

. CAP, PLUNGER

(278-14174-00-00)

1
Out of stock

34

WASHER, STARTER LVR

(132-14179-00-00)

1
Out of stock

35

. PLATE, STARTER LEVER

(170-14178-00-00)

1
Out of stock

36

O-RING (248)

93220-09001-00

—

$3.98

In stock

37

. LEVER, STARTER LH

360-14175-00-00

1
Out of stock

38

CAP

(278-14169-00-00)

1
Out of stock

39

NIPPLE

(278-14251-00-00)

1
Out of stock

40

WASHER, NEEDLE

(278-14151-00-00)

1
Out of stock

41

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

42

PIPE 1

3XV-14348-20-00

—

$17.31

In stock
← AIR Cleaner Fuel Tank →
