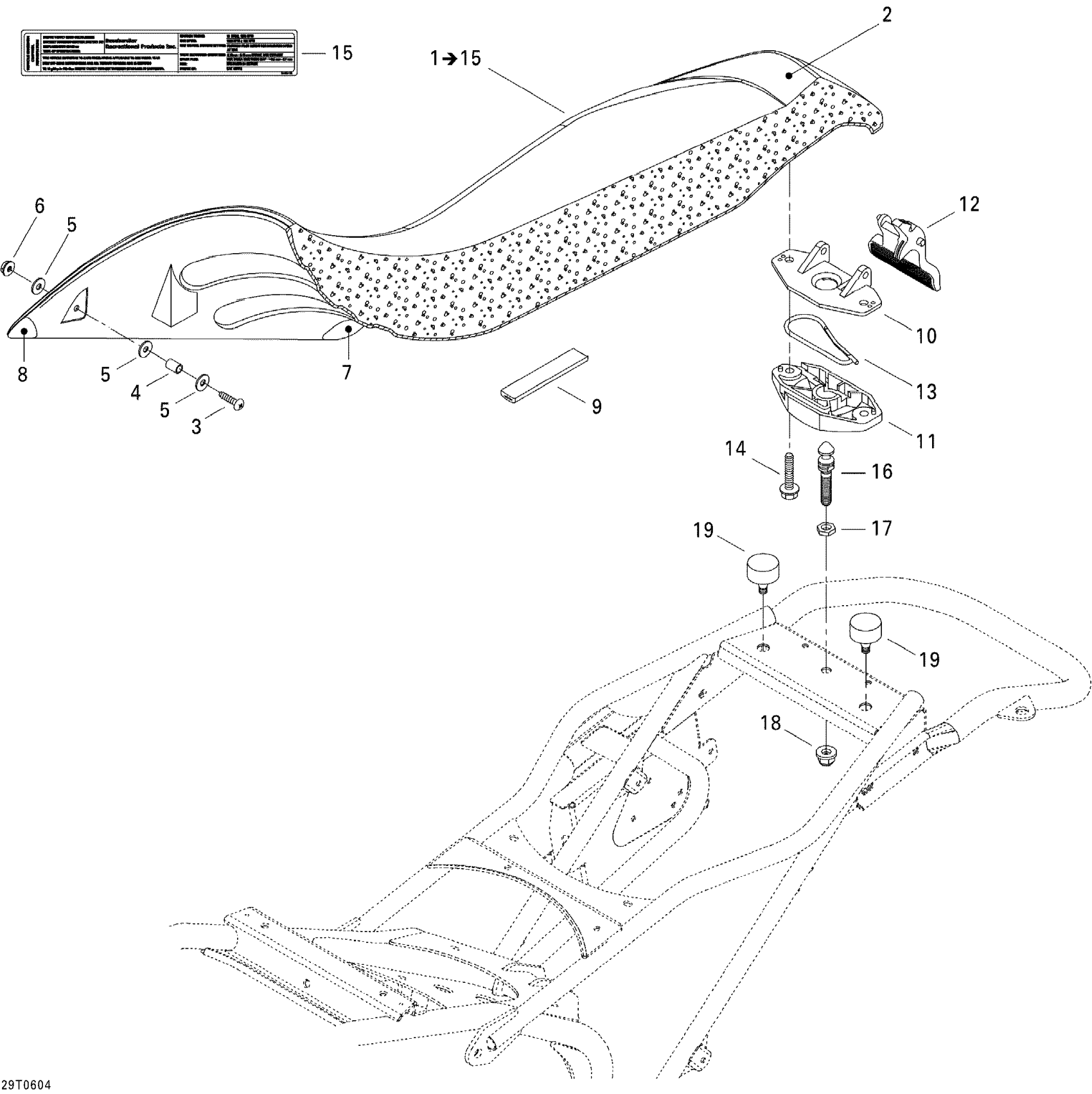

Can-Am DS 650 X, 2006 09- Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 15

708000463

Unavailable

2

Seat Cover

708000334

Unavailable

3

SCREW M6 X 30 - Call your local BRP dealership

250000046

Unavailable

4

SPACER - Call your local BRP dealership

708000049

Unavailable

5

Flat Washer

224061201

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

8

LH SEAT CORNER - Call your local BRP dealership

708000128

Unavailable

8

RH SEAT CORNER - Call your local BRP dealership

708000129

Unavailable

9

Seal Tray 1000Mm Long

219704368

Unavailable

10

Latch Ass'y

269700109

Unavailable

11

Latch Ass'y

269700109

Unavailable

12

Latch Ass'y

269700109

Unavailable

13

Latch Spring

269700017

Unavailable

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

15

Emission Label

704901125

Unavailable

16

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

17

Hex. Jam Nut M10

232100600

Unavailable

18

Hex. Flange Elastic Nut M10

233201414

Unavailable

19

Rubber Stopper

708000758

Unavailable
