09- Body And Accessories

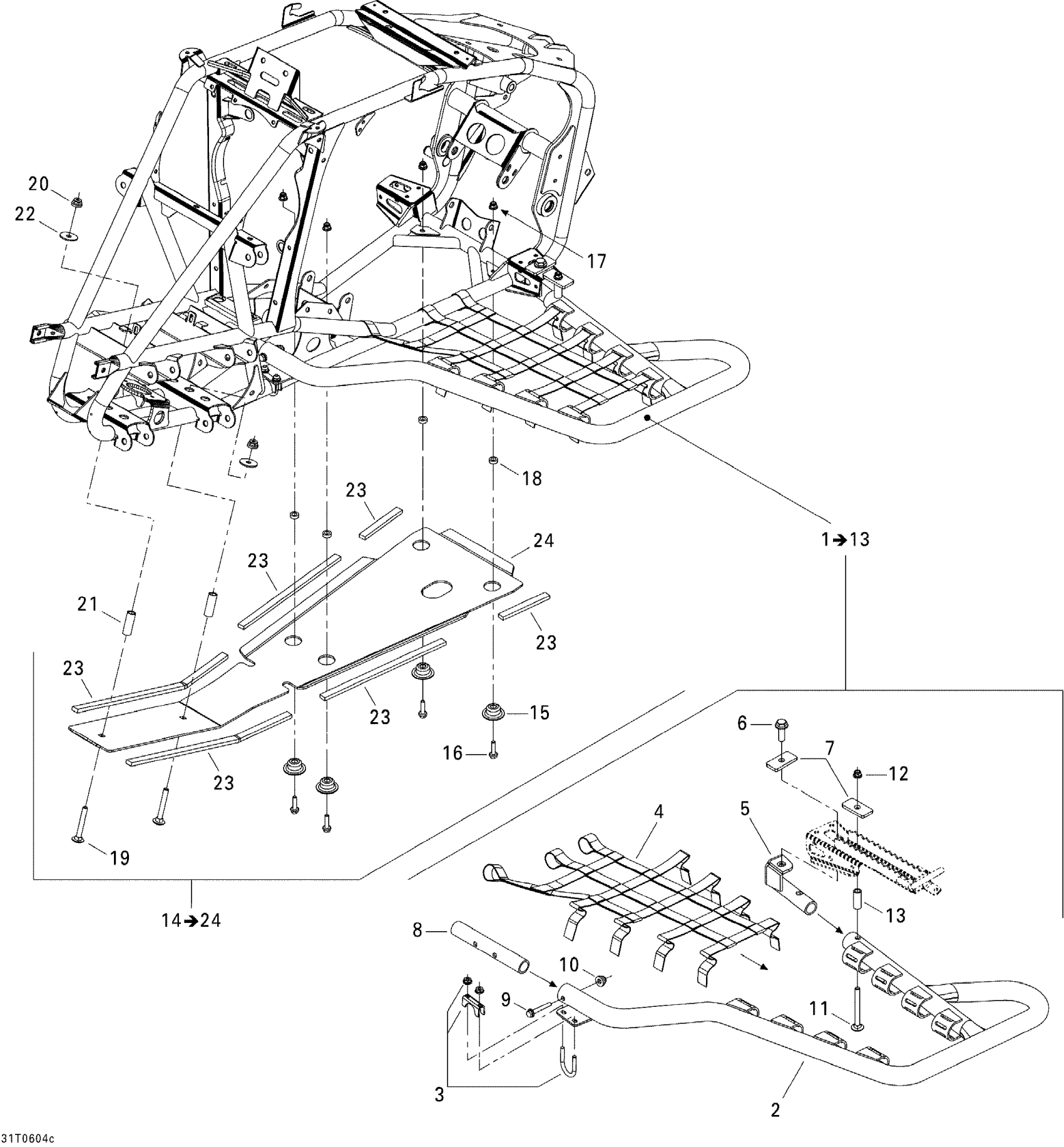

Can-Am DS 650 X, 2006 09- Body And Accessories Diagram
#
Description
Price
1
Nerf Bar Kit | Includes 14 to 26
705001165
Unavailable
2
LH Nerf Bar
705001135
Unavailable
2
RH NERF BAR - Call your local BRP dealership
705001134
Unavailable
3
U-bolt Ass'y
705001136
Unavailable
4
RH NET - Call your local BRP dealership
705001137
Unavailable
4
LH NET - Call your local BRP dealership
705001138
Unavailable
5
RH Support
705001139
Unavailable
5
LH SUPPORT - Call your local BRP dealership
705001140
Unavailable
6
Hex. Flange Screw M10 X 30, Scotch Grip
207503046
Unavailable
7
PLATE - Call your local BRP dealership
705001141
Unavailable
8
SUPPORT - Call your local BRP dealership
705001142
Unavailable
9
Hex. Flange Screw M6 X 45
207664544
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
M8 X 80 CARRIAGE BOLT - Call your local BRP dealership
207788044
Unavailable
12
Hex. Flange Elastic Nut M8
233281414
Unavailable
13
BUSHING - Call your local BRP dealership
503189064
Unavailable
14
Protector Kit | Includes 27 to 36
705001166
Unavailable
15
CUP - Call your local BRP dealership
705200533
Unavailable
16
Hex. Flange Screw M6 X 25
207662544
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
Bushing
293900028
Unavailable
19
Carriage Bolt M8 X 60
207786044
Unavailable
20
Hex. Flange Elastic Nut M8
233281414
Unavailable
21
Bushing
293900051
Unavailable
22
Flat Washer
224081301
Unavailable
23
Neoprene Seal (1PAC=3M)
219704364
Unavailable
24
Motor Skid
705001133
Unavailable
