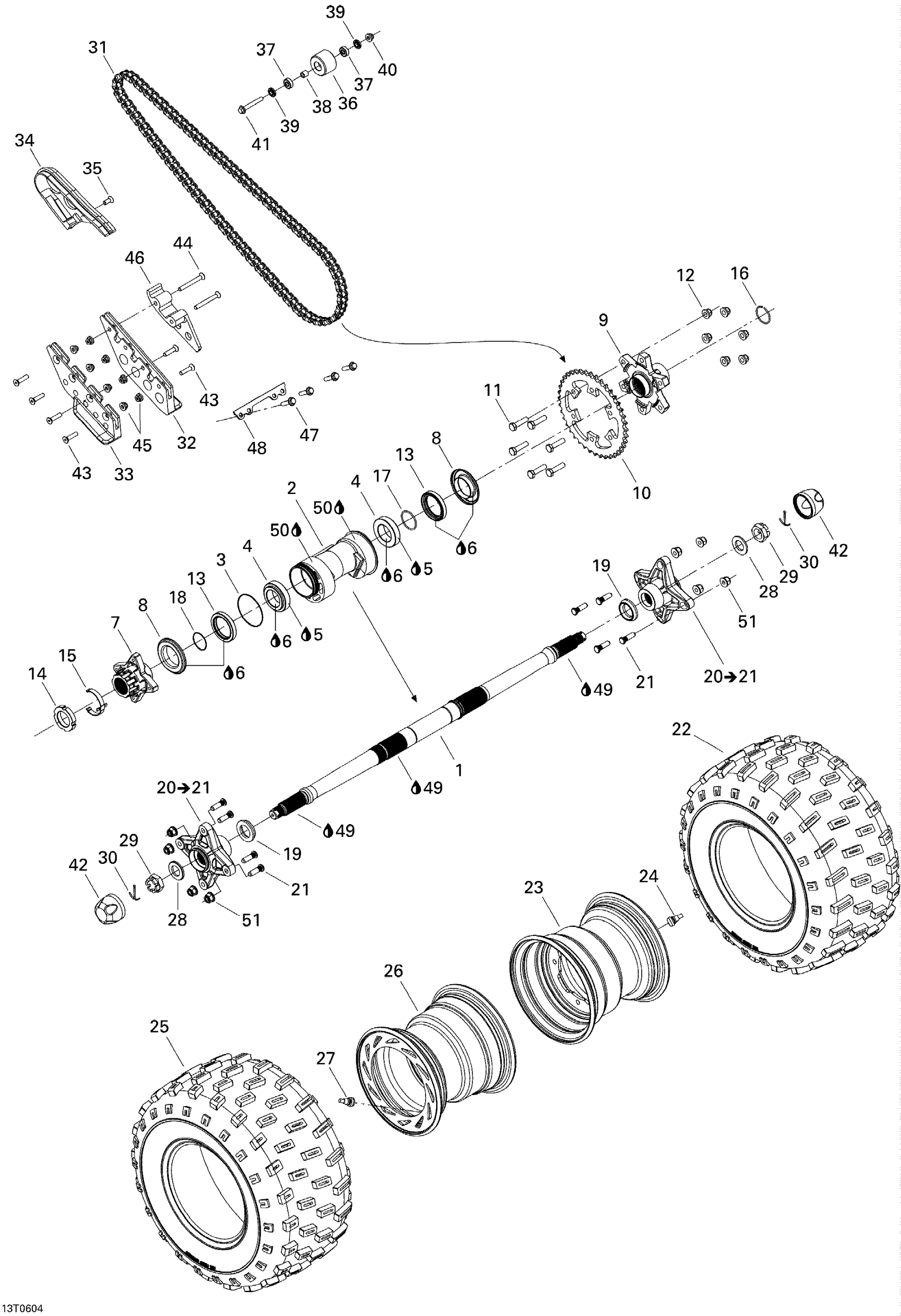

Can-Am DS 650 X, 2006 08- Drive System, Rear Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

705500387

Unavailable

2

CHAIN TIGHTENER - Call your local BRP dealership

705500388

Unavailable

3

O-RING - Call your local BRP dealership

293300085

Unavailable

4

Cone Bearing

293350043

Unavailable

5

Loctite 609, 10 ml

413703100

Unavailable

6

Synthetic Grease, 400 G

293550010

Unavailable

7

BRAKE HUB - Call your local BRP dealership

705500406

Unavailable

8

WEAR RING - Call your local BRP dealership

705500408

Unavailable

9

Wheel Hub

705500344

Unavailable

10

Sprocket, 40 Teeth

705500390

Unavailable

11

HEX. SCREW M10 X 40 - Call your local BRP dealership

207004046

Unavailable

12

Hex. Flange Elastic Nut M10

233201436

Unavailable

13

Joint Etanche *Oil Seal

293250222

Unavailable

14

Slotted Round Nuts M38

250100037

Unavailable

15

Tab Lock

250100038

Unavailable

16

RING RETAINER - Call your local BRP dealership

705500108

Unavailable

17

O-RING - Call your local BRP dealership

293300099

Unavailable

18

O-Ring

293300100

Unavailable

19

RING SUPPORT - Call your local BRP dealership

705500067

Unavailable

20

REAR HUB ASS'Y - Call your local BRP dealership | Includes 20 to 21

705500452

Unavailable

21

Wheel Stud

250000138

Unavailable

22

Rear Tire | DS 650 X

705500331

Unavailable

23

RH REAR RIM - Call your local BRP dealership | DS 650 X

705500332

Unavailable

24

Rim Valve With Cap

705400193

Unavailable

25

Rear Tire | DS 650 X

705500331

Unavailable

26

LH Rear Rim | DS 650 X

705500336

Unavailable

27

Rim Valve With Cap

705400193

Unavailable

28

HARDENED WASHER - Call your local BRP dealership

250200004

Unavailable

29

HEX. CASTELLATED NUT M24 - Call your local BRP dealership

250100006

Unavailable

30

Cotter Pin

371003400

Unavailable

31

CHAIN - Call your local BRP dealership

705500672

Unavailable

32

PROTECTOR - Call your local BRP dealership

705500414

Unavailable

33

PROTECTOR - Call your local BRP dealership

705500415

Unavailable

34

Shoe Slider

705500442

Unavailable

35

Socket Head Screw M8 X 20, Scotch Grip

205882044

Unavailable

36

CHAIN ROLLER - Call your local BRP dealership

705500368

Unavailable

37

BALL BEARING - Call your local BRP dealership

293350039

Unavailable

38

Spacer

705500397

Unavailable

39

SPACER - Call your local BRP dealership

705500398

Unavailable

40

Hex. Flange Elastic Nut M8

233281414

Unavailable

41

Hex. Flange Screw M8 x 60

207686044

Unavailable

42

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

43

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205383544

Unavailable

44

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

205387044

Unavailable

45

Hex. Flange Elastic Nut M8

233281414

Unavailable

46

PROTECTOR - Call your local BRP dealership

705500116

Unavailable

47

Hex. Flange Screw M8 X 35

207683544

Unavailable

48

SEAL - Call your local BRP dealership

705500443

Unavailable

49

Graisse *Grease

293550062

Unavailable

50

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

51

Flange Nut M10

732610084

Unavailable
