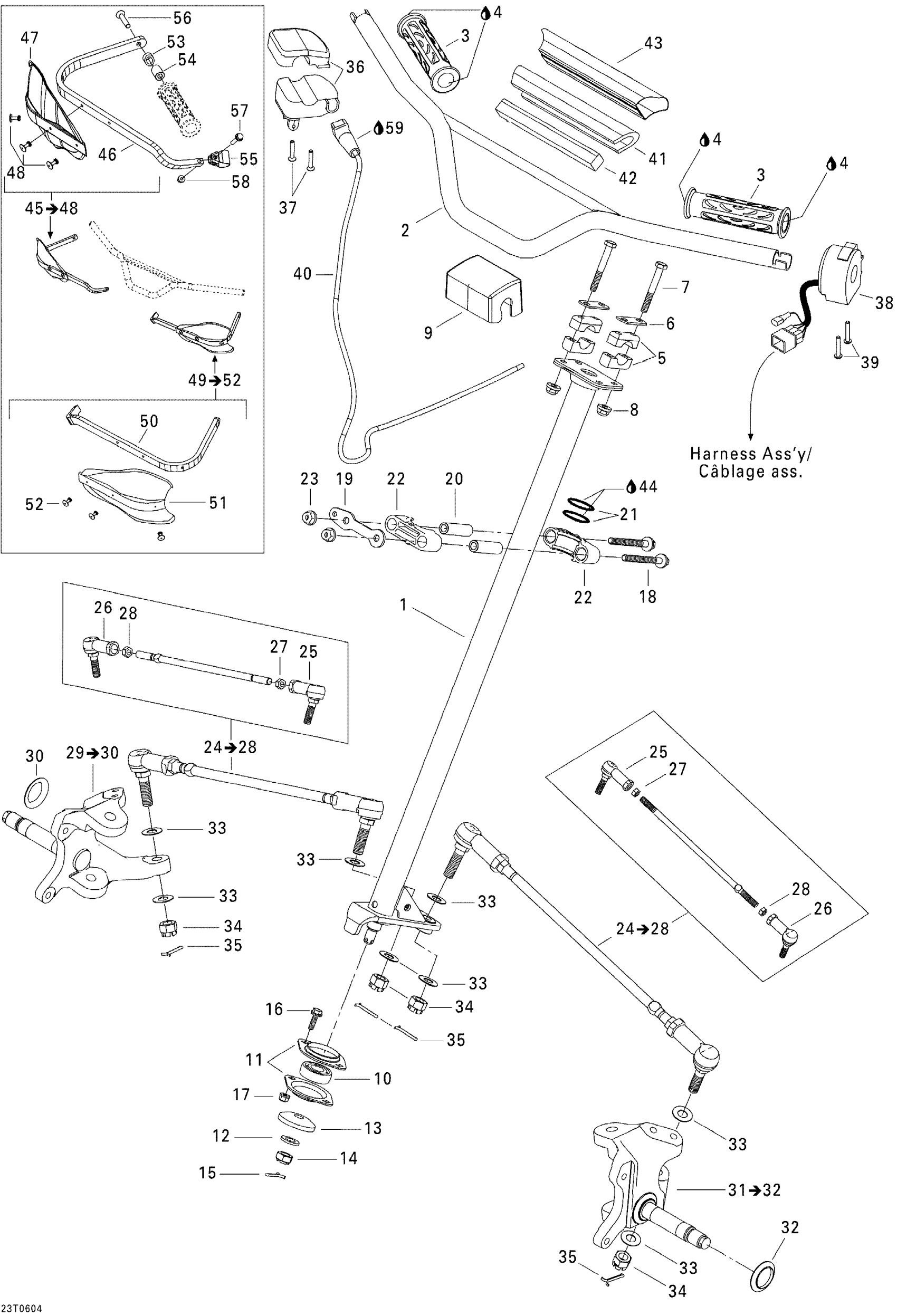

Can-Am DS 650 X, 2006 07- Steering System Diagram

#

Description
Price

1

MAIN TUBE - Call your local BRP dealership

709400222

Unavailable

2

Handle Bar, Black

709400218

Unavailable

3

Handle Grip

709400493

Unavailable

4

Loctite 406, 7 Oz

293800100

Unavailable

5

Steering Support

709400919

Unavailable

6

Stiffner

709400509

Unavailable

7

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

Unavailable

9

COVER - Call your local BRP dealership

705000371

Unavailable

10

Ball Bearing

709400439

Unavailable

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

Unavailable

13

WASHER - Call your local BRP dealership

250200017

Unavailable

14

HEX. CASTELLATED NUT M12 - Call your local BRP dealership

232220413

Unavailable

15

Cotter Pin

211400017

Unavailable

16

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Hex. Flange Screw M8 X 75

207687544

Unavailable

19

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

20

BUSHING - Call your local BRP dealership

709400072

Unavailable

21

O-Ring

293300068

Unavailable

22

Half Bushing

709400471

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

25

RH Ball Joint

709402302

Unavailable

26

LH Ball Joint

709402303

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

RH Knuckle

709400208

Unavailable

30

WEAR RING - Call your local BRP dealership

705400056

Unavailable

31

LH Knuckle

709400210

Unavailable

32

WEAR RING - Call your local BRP dealership

705400056

Unavailable

33

Hardened Washer

706200281

Unavailable

34

Nut M12

250100099

Unavailable

35

Cotter Pin

211400013

Unavailable

36

THROTTLE HANDLE - Call your local BRP dealership

709400016

Unavailable

37

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

38

MULTI FUNCTION SWITCH - Call your local BRP dealership

710000072

Unavailable

39

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

40

THROTTLE CABLE - Call your local BRP dealership

709400048

Unavailable

41

Steering Cover Foam

709400087

Unavailable

42

FOAM INSERT - Call your local BRP dealership

709400094

Unavailable

43

Steering Cover | DS 650 X

709400243

Unavailable

44

Synthetic Grease, 400 G

293550010

Unavailable

45

RH PROTECTOR ASSY - Call your local BRP dealership | DS 650 X

709400177

Unavailable

46

RH HANDLE PROTECTOR - Call your local BRP dealership | DS 650 X

709400159

Unavailable

47

Protector Plate | DS 650 X

705000461

Unavailable

48

Pop Rivet 3/16"

293150103

Unavailable

49

LH Protector Ass’y | DS 650 X

709400179

Unavailable

50

LH Handle Protector | DS 650 X

709400160

Unavailable

51

Protector Plate | DS 650 X

705000461

Unavailable

52

Pop Rivet 3/16"

293150103

Unavailable

53

Small Bracket | DS 650 X

709400161

Unavailable

54

Large Bracket | DS 650 X

709400162

Unavailable

55

HANDLE BRACKET - Call your local BRP dealership | DS 650 X

709400174

Unavailable

56

Socket Head Screw M8 X 40 | DS 650 X

205384044

Unavailable

57

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

59

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable
