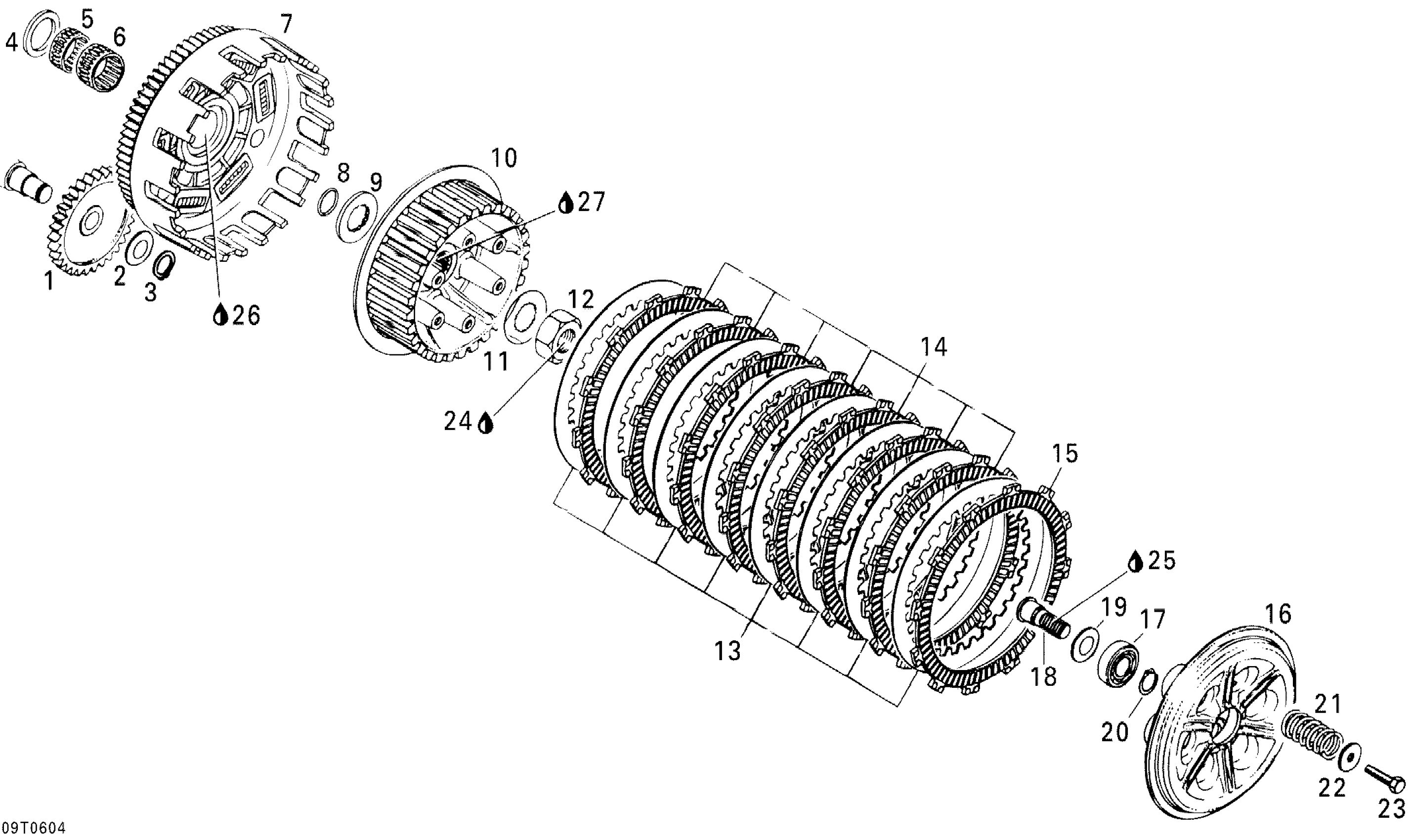

Can-Am DS 650 X, 2006 05- Clutch Diagram

#

Description
Price

1

OIL PUMP GEAR - Call your local BRP dealership

420235272

Unavailable

2

THRUST WASHER - Call your local BRP dealership

420227401

Unavailable

3

RETAINING RING - Call your local BRP dealership

420945650

Unavailable

4

Thrust Washer

420427460

Unavailable

5

Needle Bearing

420932930

Unavailable

6

Needle Bearing

420232890

Unavailable

7

PRIMARY DRIVE ASS'Y - Call your local BRP dealership

420296365

Unavailable

8

O-Ring

420250890

Unavailable

9

THRUST WASHER - Call your local BRP dealership

420244950

Unavailable

10

Clutch Hub

420259117

Unavailable

11

TAB WASHER - Call your local BRP dealership

420245325

Unavailable

12

NUT M18 - Call your local BRP dealership

420242607

Unavailable

13

Plate 1,5 mm

420259262

Unavailable

14

Friction Plate 3,5 mm

420259210

Unavailable

15

FRICTION PLATE 3,5 MM - Call your local BRP dealership

420259215

Unavailable

16

PRESSURE PLATE - Call your local BRP dealership

420259122

Unavailable

17

BALL BEARING 6002 - Call your local BRP dealership

420232262

Unavailable

18

RACK-ACTUATION CLUTCH - Call your local BRP dealership

420259203

Unavailable

19

THRUST WASHER - Call your local BRP dealership

420227401

Unavailable

20

RETAINING RING - Call your local BRP dealership

420945650

Unavailable

21

CLUTCH SPRING - Call your local BRP dealership

420239162

Unavailable

22

WASHER - Call your local BRP dealership

420244020

Unavailable

23

Hex. Screw M6 X 25

207162544

Unavailable

24

Loctite 243, 10 ml

293800060

Unavailable

25

Grease, Super Lube

293550030

Unavailable

26

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

27

Petamo Grease, GHY133N, 400 g

420899271

Unavailable
