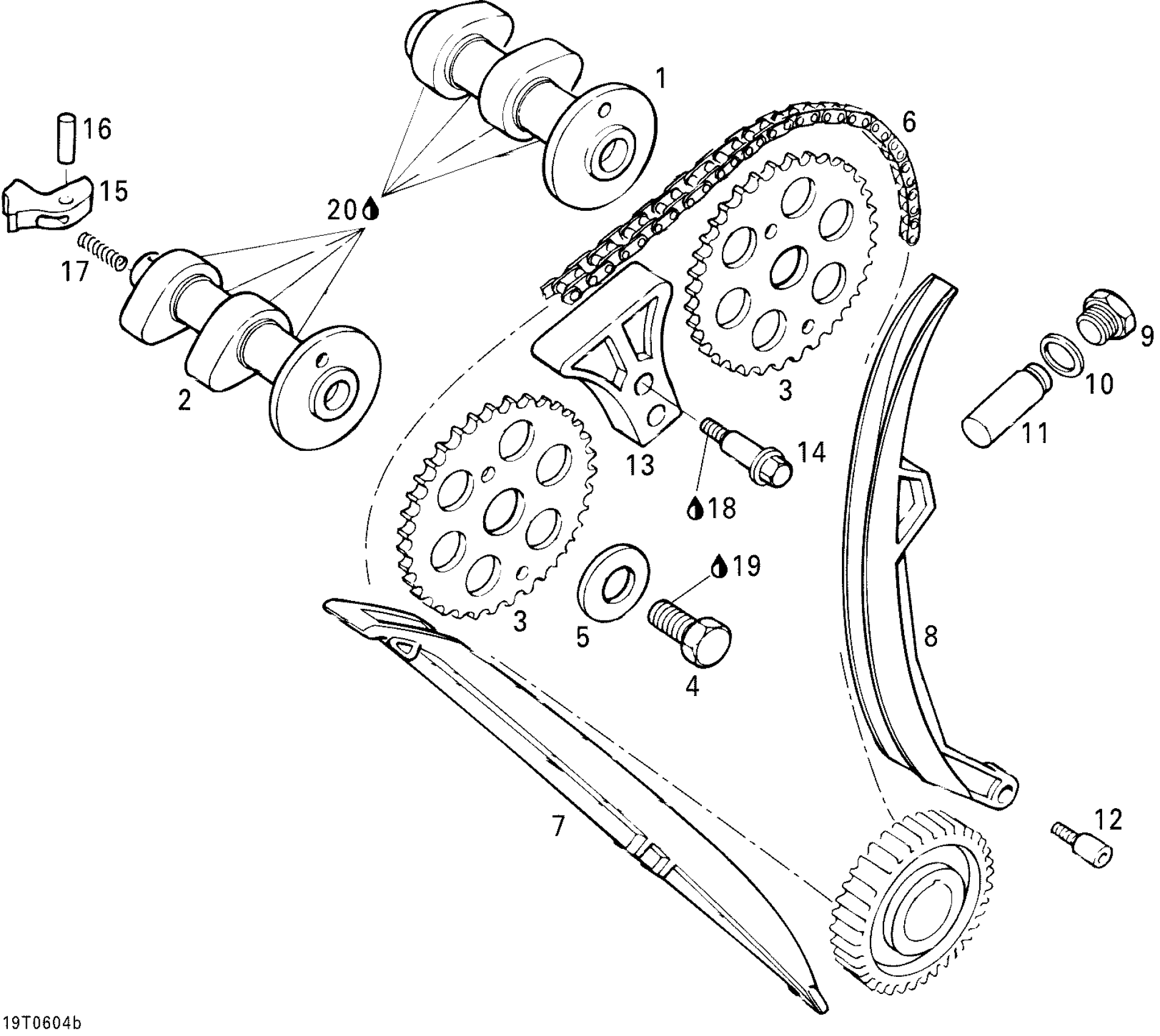

Can-Am DS 650 X, 2006 01- Valve 2 Diagram

#

Description
Price

1

Camshaft, Inlet

420220190

Unavailable

2

CAMSHAFT, EXHAUST - Call your local BRP dealership

420220200

Unavailable

3

TIMING GEAR, 34 TEETH - Call your local BRP dealership

420634280

Unavailable

4

HEX. SCREW M10 X 20 - Call your local BRP dealership

207102044

Unavailable

5

WASHER - Call your local BRP dealership

420627040

Unavailable

6

CHAIN-TIMING - Call your local BRP dealership

420297891

Unavailable

7

Chain Guide

420236230

Unavailable

8

CHAIN TENSION GUIDE - Call your local BRP dealership

420236221

Unavailable

9

HEX. SCREW M18 X 10 - Call your local BRP dealership

420552277

Unavailable

10

Crush Washer

420552280

Unavailable

11

Chain Tensioner

415129408

Unavailable

12

Bearing Screw M6

420240943

Unavailable

13

Chain Guide Bow

420236240

Unavailable

14

DISTANCE SCREW M6 X 16 - Call your local BRP dealership

420240960

Unavailable

15

CENTRIFUGAL WEIGHT - Call your local BRP dealership

420231045

Unavailable

16

PEG - Call your local BRP dealership

420232910

Unavailable

17

SPRING - Call your local BRP dealership

420239920

Unavailable

18

Loctite 243, 10 ml

293800060

Unavailable

19

Sealant Loctite 648

219703000

Unavailable

20

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
