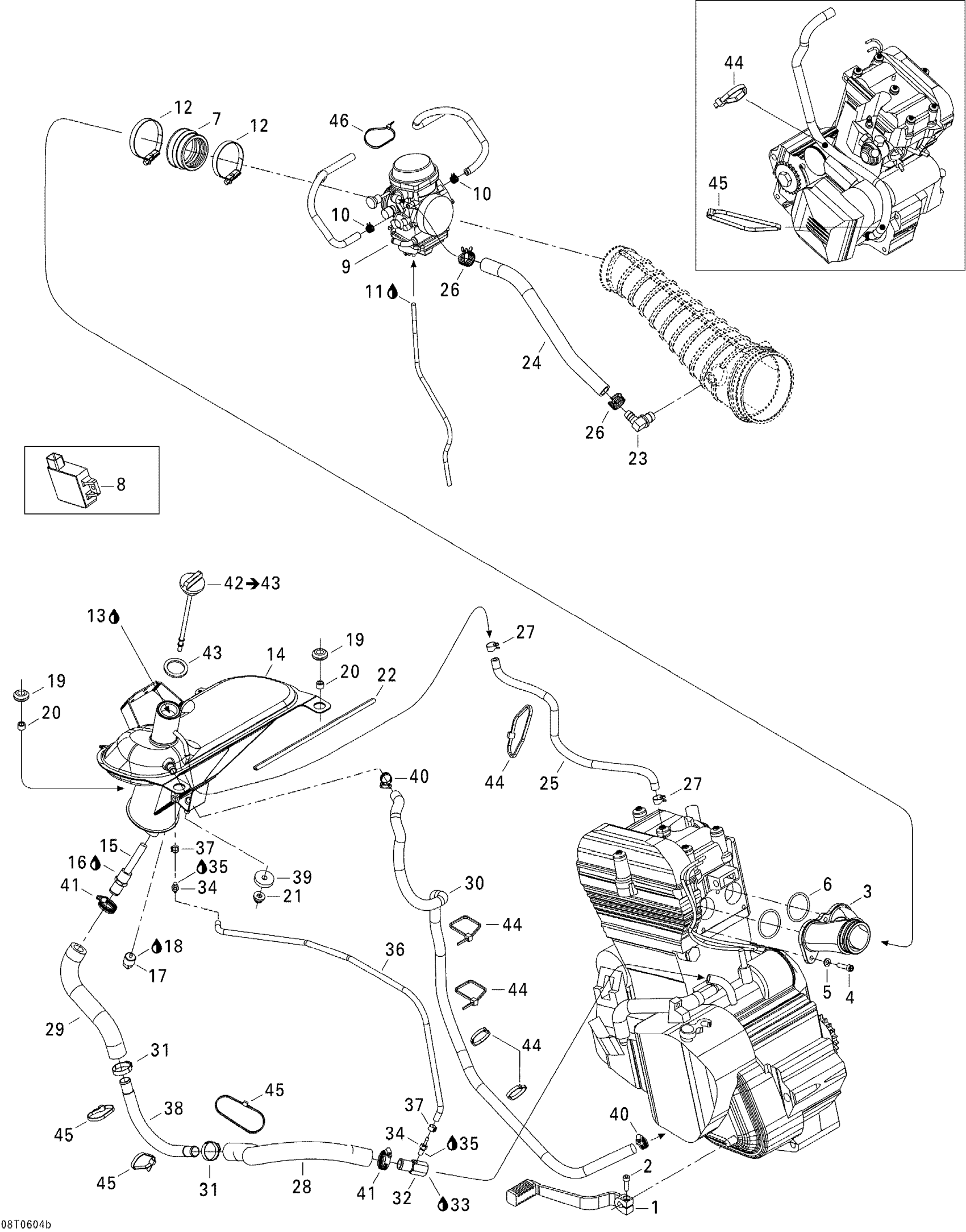

Can-Am DS 650 X, 2006 01- Engine 2 Diagram

#

Description
Price

1

Gearshift Lever

420248317

Unavailable

2

Socket Head Screw M6 X 20

205062047

Unavailable

3

Intake Adaptor

420267230

Unavailable

4

Socket Head Screw M6 X 25

205062544

Unavailable

5

Flat Washer 6 mm

234061410

Unavailable

6

O-Ring

293300059

Unavailable

7

Carburator Flange 52 mm

420267240

Unavailable

8

AMPLIFIER BOX - Call your local BRP dealership

420664170

Unavailable

9

Carburator Bsr42-4

707200142

Unavailable

10

Spring Clamp

414420700

Unavailable

11

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

12

Norma Gear Clamp

293650090

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

OIL TANK - Call your local BRP dealership

707000146

Unavailable

15

STRAINER - Call your local BRP dealership

707000076

Unavailable

16

Was 293800013 Loctite 56765

219704454

Unavailable

17

Magnetic Cap

250000053

Unavailable

18

Was 293800013 Loctite 56765

219704454

Unavailable

19

Grommet

293720062

Unavailable

20

Spacer

707000058

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

23

Elbow Fitting

414523600

Unavailable

24

OIL LINE - Call your local BRP dealership

414644800

Unavailable

25

Hose

219704549

Unavailable

26

Spring Clamp

414655700

Unavailable

27

Spring Clamp

414415200

Unavailable

28

HOSE 15.8 MM, METER - Call your local BRP dealership

707000098

Unavailable

29

HOSE 15.8 MM, METER - Call your local BRP dealership

707000098

Unavailable

30

HOSE 9.5 MM, METER - Call your local BRP dealership

709000022

Unavailable

31

Crimp Clamp

293650099

Unavailable

32

Adaptor

707000185

Unavailable

33

Loctite 277, 10 ml

293800073

Unavailable

34

Hose Adaptor

707000240

Unavailable

35

Was 293800013 Loctite 56765

219704454

Unavailable

36

HOSE 3.5 MM, METER - Call your local BRP dealership

707000243

Unavailable

37

NORMA CLAMP - Call your local BRP dealership

293650120

Unavailable

38

INTAKE TUBE - Call your local BRP dealership

707000059

Unavailable

39

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

40

Tridon Gear Clamp

293650171

Unavailable

41

Norma Gear Clamp

293650124

Unavailable

42

Oil Cap Ass'y | Includes 42 to 43

707000047

Unavailable

43

O-RING - Call your local BRP dealership

293250009

Unavailable

44

Tie-Rap 180 mm

414115200

Unavailable

45

Tie Wrap 368 mm

293750008

Unavailable

46

Tie Wrap 142 mm

293750002

Unavailable
