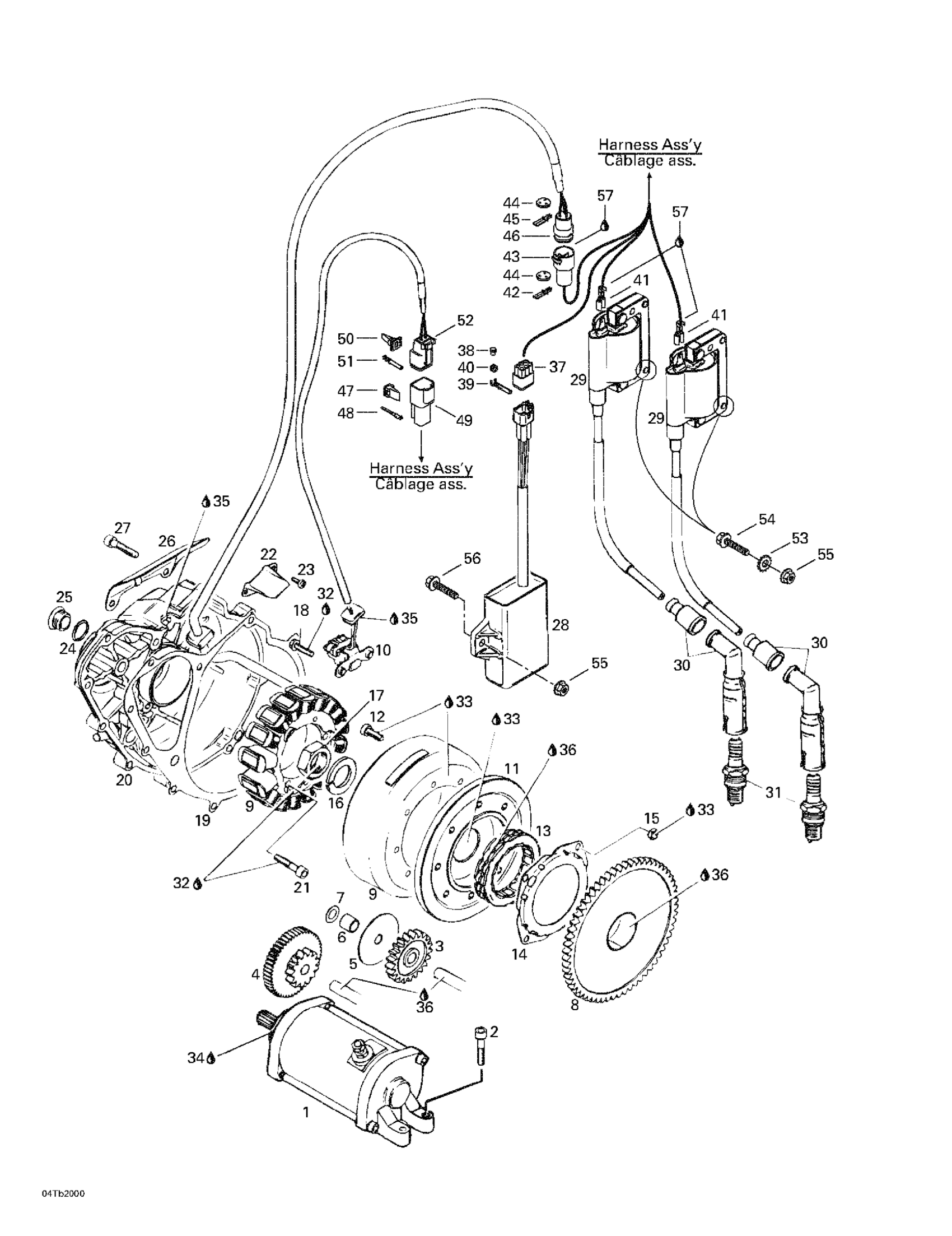

Can-Am DS 650, 7404, 2000 03- Ignition Diagram

#

Description
Price

1

Electric Starter

711294351

Unavailable

1

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

1

Starter O-ring (Not shown)

29330103

Unavailable

2

Socket Head Screw M6 X 30

205063044

Unavailable

3

Intermediate Gear (24 Teeth)

711234655

Unavailable

4

Intermediate Gear, 11/52 Teeth

420234756

Unavailable

5

Thrust Washer

711627080

Unavailable

6

Spacer

711247785

Unavailable

7

Thrust Washer

420827590

Unavailable

8

Starting Gear (61 Teeth)

711634317

Unavailable

9

Magneto Ass'y 12V/280W

711295172

Unavailable

10

PICKUP ASS'Y - Call your local BRP dealership

711265153

Unavailable

11

FLYWHEEL ROTOR HUB - Call your local BRP dealership

420264577

Unavailable

12

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

Unavailable

13

Sprag Clutch

420958857

Unavailable

14

Housing-Clutch Sprag

711259192

Unavailable

15

Nut BM6

711242031

Unavailable

16

Lock Washer, 22 mm

420945759

Unavailable

17

Hex. Nut, M22 X 1.5

420842239

Unavailable

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Gasket

711250920

Unavailable

20

Ignition Cover

711211291

Unavailable

21

Socket Head Screw M6 x 35

711241810

Unavailable

22

Interior Cable Support Ass'y

420251889

Unavailable

23

Phillips Screw M4 X 8

420240196

Unavailable

24

O-Ring

420250890

Unavailable

25

Drain Plug

420241801

Unavailable

26

Cable External Cover

711251990

Unavailable

27

Socket Head Screw M6 X 30

205063044

Unavailable

28

Amplifier Box

711265368

Unavailable

29

Ignition Coil

711265357

Unavailable

30

SPARK PLUG CAP - Call your local BRP dealership

420665010

Unavailable

31

Spark Plug, NGK/DR8EA

707000008

Unavailable

32

Loctite 243, 10 ml

293800060

Unavailable

33

Sealant Loctite 648

219703000

Unavailable

34

Was 420297616 Klueber Grease, 60g

219704464

Unavailable

35

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Female Housing, 6 Circuits

710000081

Unavailable

38

Cap

710000080

Unavailable

39

Female Terminal

409012100

Unavailable

40

Seal

409012300

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

43

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

44

SEAL - Call your local BRP dealership

409208500

Unavailable

45

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

46

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

47

Male Lock, 2 Circuits

409207500

Unavailable

48

Male Terminal

278000631

Unavailable

49

Male Housing, 2 Circuits

409206900

Unavailable

50

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

51

Female Terminal

278000632

Unavailable

52

Female Connector, 2 Circuits

409207300

Unavailable

53

Lock Washer Serrated M6

250200041

Unavailable

54

Hex. Flange Screw M6 X 25

207662544

Unavailable

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

56

Hex. Flange Screw M6 X 20

207662044

Unavailable

57

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
