Description

Price

1

FUEL TANK - Call your local BRP dealership

709000010

Unavailable

2

Hex. Screw M5 X 14

207151444

Unavailable

3

Grommet

570045500

Unavailable

4

Male Connector

414814100

Unavailable

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

6

Spring Clamp

414655700

Unavailable

7

FUEL VALVE - Call your local BRP dealership

709000011

Unavailable

8

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

9

Fuel Tank Cap 91 Octane

513033722

Unavailable

10

Neoprene Seal (1PAC=3M)

219704364

Unavailable

11

Hex. Flange Screw M8 x 60

207686044

Unavailable

12

SPACER - Call your local BRP dealership

705000114

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Neoprene Seal (1PAC=3M)

219704364

Unavailable

15

Tie-Rap 180 mm

414115200

Unavailable

16

Spring Clamp

414420700

Unavailable

17

Hose

707200131

Unavailable

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

19

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

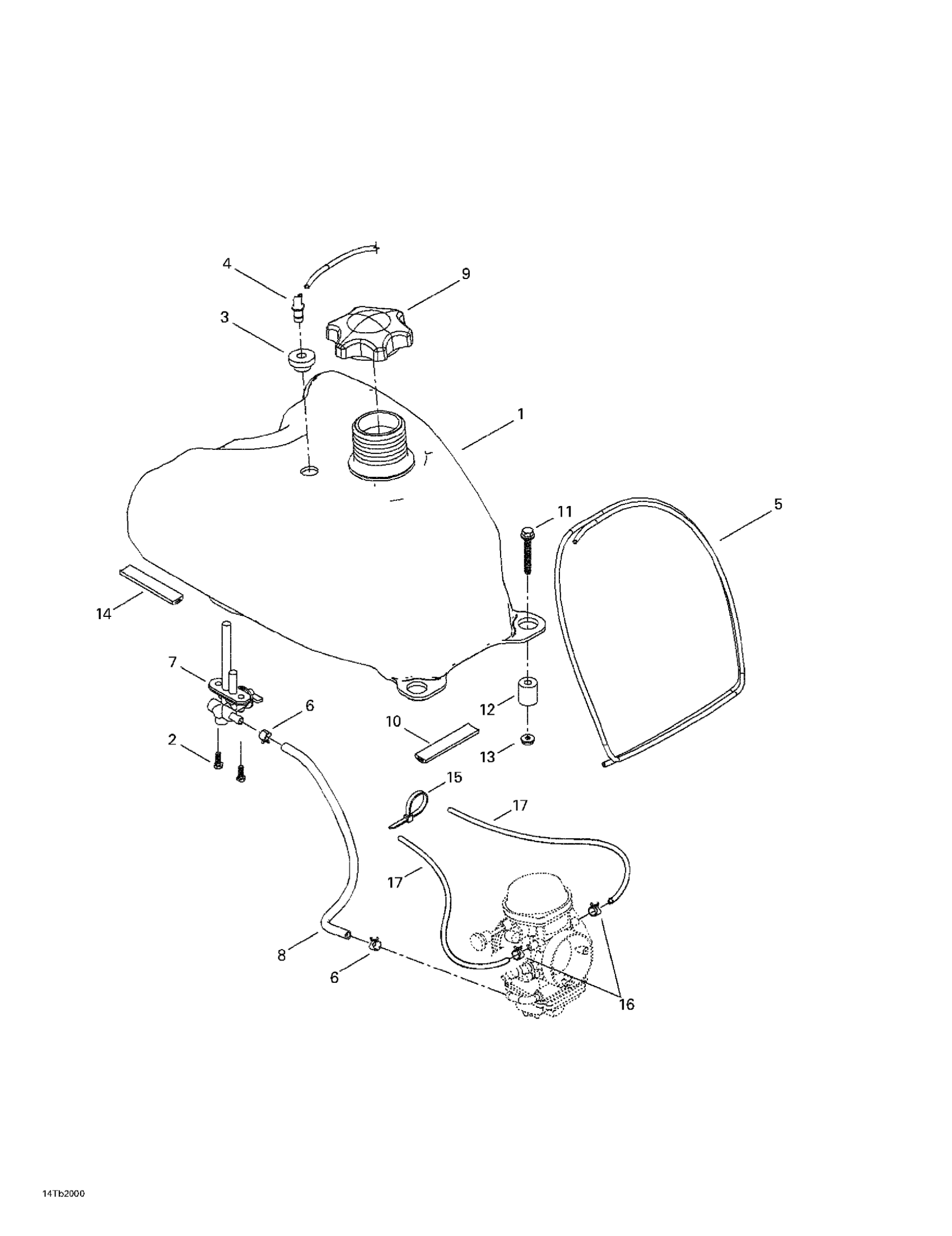

Can-Am DS 650, 7404, 2000 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Hex. Screw M5 X 14

Grommet

Male Connector

Was 415080100 Fuel Line Primer 3,2mm

Spring Clamp

FUEL VALVE - Call your local BRP dealership

HOSE 5/16 - Call your local BRP dealership

Fuel Tank Cap 91 Octane

Neoprene Seal (1PAC=3M)

Hex. Flange Screw M8 x 60

SPACER - Call your local BRP dealership

Hex. Flange Elastic Nut M8

Neoprene Seal (1PAC=3M)

Tie-Rap 180 mm

Spring Clamp

Hose

Was 415110000 Polyurethane Hose 5.2 mm

Était Was 413705800 Loctite 414 , 29.5 c.c
