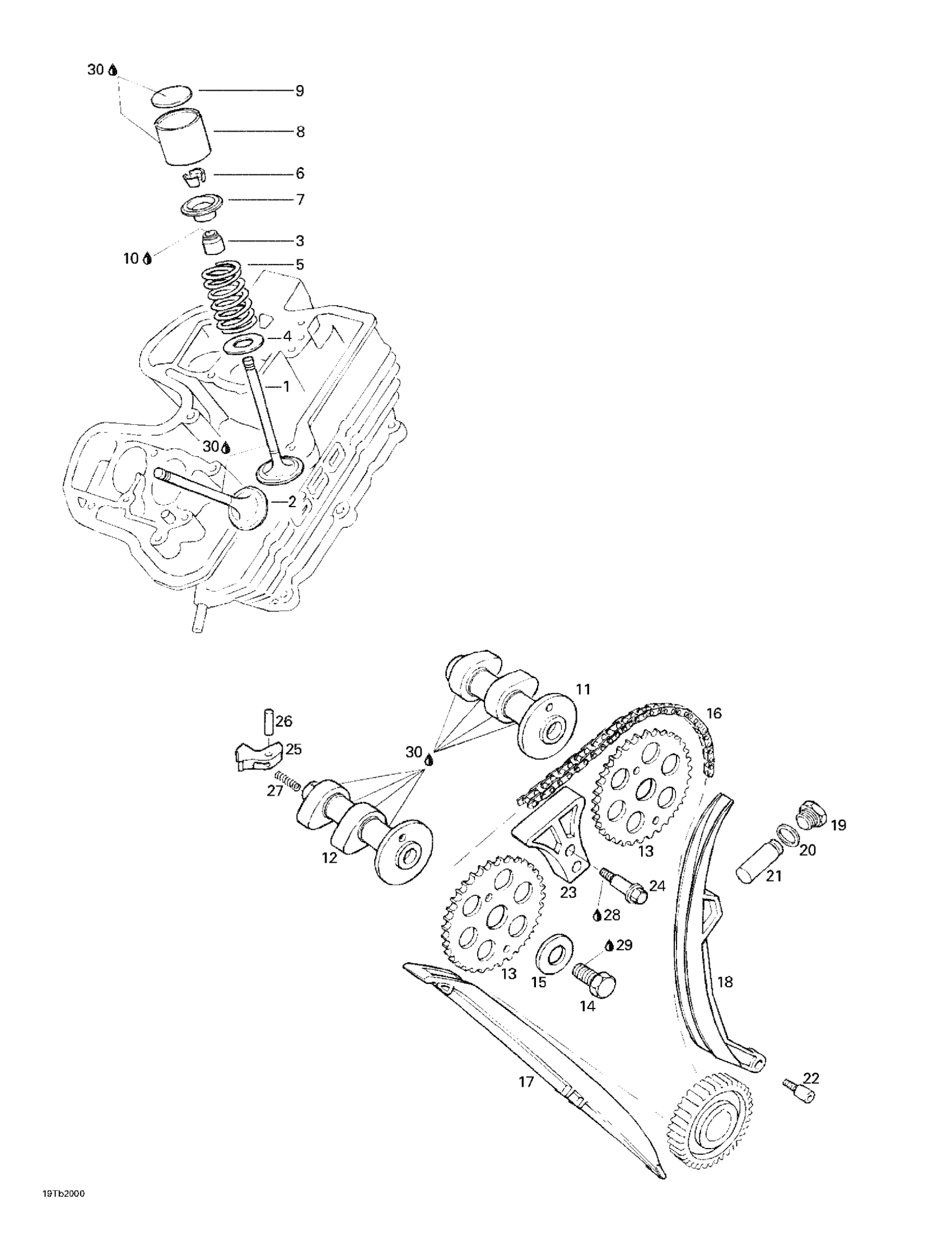

Can-Am DS 650, 7404, 2000 01- Valve Diagram
#
1
Inlet Valve
420253770
Unavailable
2
Exhaust Valve
711253780
Unavailable
3
Seal
420230510
Unavailable
4
Thrust Washer 11,2/28,0/1,0
711227982
Unavailable
5
Valve Spring
711239290
Unavailable
6
Valve Cotter
420253645
Unavailable
7
Valve Spring Retainer
711253760
Unavailable
8
Valve Tappet
711253545
Unavailable
9
Shim 2,1
711253741
Unavailable
Shim 2,15
711253752
Unavailable
Shim 2,2
711253742
Unavailable
Shim 2,25
711253753
Unavailable
Shim 2,3
711253743
Unavailable
Shim 2,35
711253754
Unavailable
Shim 2,4
711253744
Unavailable
Shim 2,45
711253755
Unavailable
Shim 2,5
711253745
Unavailable
Shim 2,55
711253756
Unavailable
Shim 2,6
711253746
Unavailable
Shim 2,7
711253747
Unavailable
Shim 2,8
711253748
Unavailable
Shim 2,9
711253749
Unavailable
10
Grease, Super Lube
293550030
Unavailable
11
Camshaft-Inlet
711220190
Unavailable
12
Camshaft-Exhaust
711220200
Unavailable
13
Timing Gear (34 Teeth)
711634280
Unavailable
14
HEX. SCREW M10 X 20 - Call your local BRP dealership
207102044
Unavailable
15
Washer
711627040
Unavailable
16
CHAIN-TIMING - Call your local BRP dealership
420297891
Unavailable
17
Chain Guide
711236230
Unavailable
18
Chain Tension Guide
711236221
Unavailable
19
Hex. Screw M18 x 10
711552277
Unavailable
20
Crush Washer
420552280
Unavailable
21
Chain Tensioner
415129408
Unavailable
22
Bearing Screw M6
711240940
Unavailable
23
Chain Guide Bow
711236240
Unavailable
24
DISTANCE SCREW M6 X 16 - Call your local BRP dealership
420240960
Unavailable
25
Centrifugal Weight
711231044
Unavailable
26
Peg
711232910
Unavailable
27
Spring
711239920
Unavailable
28
Loctite 243, 10 ml
293800060
Unavailable
29
Sealant Loctite 648
219703000
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
