01- Cooling System

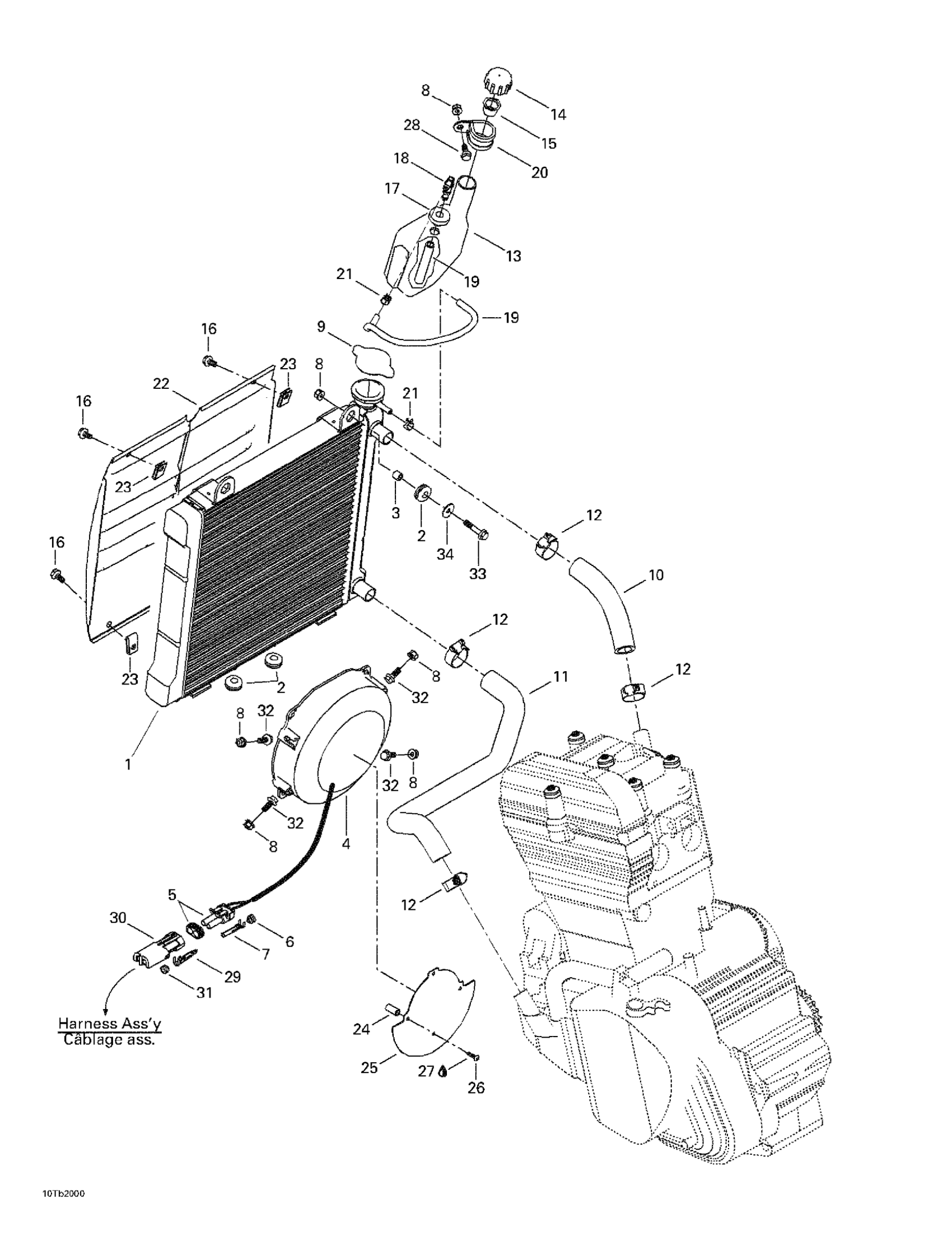

Can-Am DS 650, 7404, 2000 01- Cooling System Diagram
#
1
Radiator
709200019
Unavailable
2
Grommet
709000582
Unavailable
3
Bushing
293900105
Unavailable
4
Fan Ass'y
709200020
Unavailable
5
Male Connector, 2 Circuits
278000220
Unavailable
6
Wire Seal
278000218
Unavailable
Female Terminal
409007300
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
9
Radiator Pressure Cap
709200207
Unavailable
10
Radiator Inlet Hose
709200021
Unavailable
11
Radiator Outlet Hose
709200022
Unavailable
12
Tridon Gear Clamp
293650051
Unavailable
13
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
14
TANK CAP - Call your local BRP dealership
709200009
Unavailable
15
PROTECTION CAP - Call your local BRP dealership
709200205
Unavailable
16
Hex. Flange Screw M6 X 12
207661244
Unavailable
17
Grommet
709200285
Unavailable
18
Elbow Male Connector
414580600
Unavailable
19
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
20
Hose Anchor
709200036
Unavailable
21
Spring Clamp
414554800
Unavailable
22
Radiator Protector
709200037
Unavailable
23
Panel Nut M6 X 1.0
250100198
Unavailable
24
Spacer
707000058
Unavailable
25
Heat Shield
709200041
Unavailable
26
Tapping Screw M4.2 X 25
209642590
Unavailable
27
Loctite 271, 10 ml
293800005
Unavailable
28
Hex. Flange Screw M6 X 16
207661644
Unavailable
29
Male Terminal
409004300
Unavailable
30
Female Housing, 2 Circuits
278000217
Unavailable
31
Wire Seal
278000218
Unavailable
32
Hex. Screw M6 X 16
207161644
Unavailable
Hex. Flange Screw M6 X 25
207662544
Unavailable
4
Flat Washer
224060201
Unavailable
5
ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership
219700362
Unavailable
36
Shim
709200046
Unavailable
