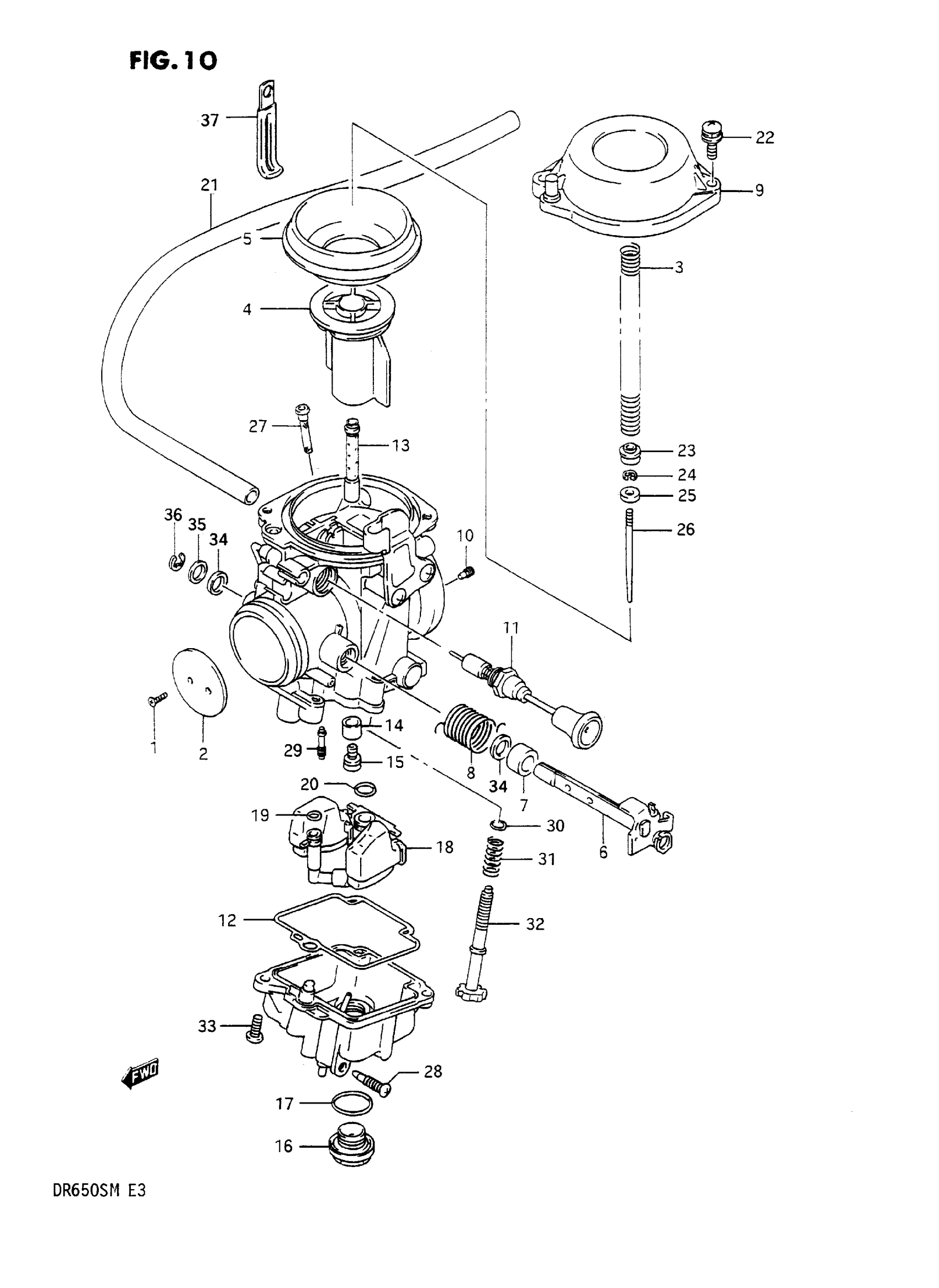

Suzuki DR650SM (1991) CARBURETOR Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE This part replaces 13200-14A70.

13200-14A71

Unavailable

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 1 - 36 This part replaces 13200-14A80.

13200-14A81

Unavailable

1

SCREW, THROTTLE VALVE This part replaces 13604-07D00.

13604-44080

$2.80

2

VALVE, THROTTLE (110)

13551-12D00

Unavailable

3

SPRING

13417-12D00

Unavailable

4

VALVE, PISTON

13501-12D00

Unavailable

5

.DIAPHRAGM This part replaces 13507-07D00.

13507-07D02

$34.55

6

SHAFT ASSY, THROTTLE

13550-12D00

Unavailable

7

RING

13557-05A20

Unavailable

8

SPRING

13573-12D00

Unavailable

9

COVER, DIAPHRAGM

13502-12D00

Unavailable

10

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

$17.73

11

PLUNGER ASSY

13411-15A30

Unavailable

12

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

13

JET, NEEDLE (Y-3)

09494-00684

Unavailable

14

RING

13331-07D00

$7.48

15

JET, MAIN (147.5)

09491-29012

Unavailable

16

PLUG, DRAIN

13247-32210

$17.20

17

O RING, DRAIN

13249-41310

$4.03

18

FLOAT ASSY This part replaces 13250-44C00.

13250-13D00

$141.55

19

.O RING

13374-46710

$4.09

20

O RING This part replaces 13374-44080.

13374-35C00

$5.48

21

HOSE(6.5X11.5X6 This part replaces 13683-15A30.

09355-65001-600

$10.83

22

SCREW This part replaces 13602-34390.

02112-7516A

$2.42

23

RING

13331-12D00

$7.48

24

E RING

13394-31210

$4.37

25

RING

13387-07D00

$5.12

26

NEEDLE, JET (6G7-1)

13383-14A70

Unavailable

27

FILTER

13236-12C00

$9.73

28

SCREW, DRAIN

13247-02340

$4.56

29

JET, PILOT (47.5)

09492-47013

$12.38

30

WASHER

13427-38300

$2.17

31

SPRING

13375-60A00

$9.50

32

ADJUSTER This part replaces 13267-28A00.

13267-14D10

Unavailable

33

SCREW This part replaces 13602-05129.

02112-05127

$1.97

34

SEAL

13556-44B00

$5.00

35

WASHER

13557-47070

$3.38

36

E RING

13617-44080

$2.80

37

CLAMP This part replaces 09404-06402.

09404-06039

$1.73
