1995 Suzuki DR650SES Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

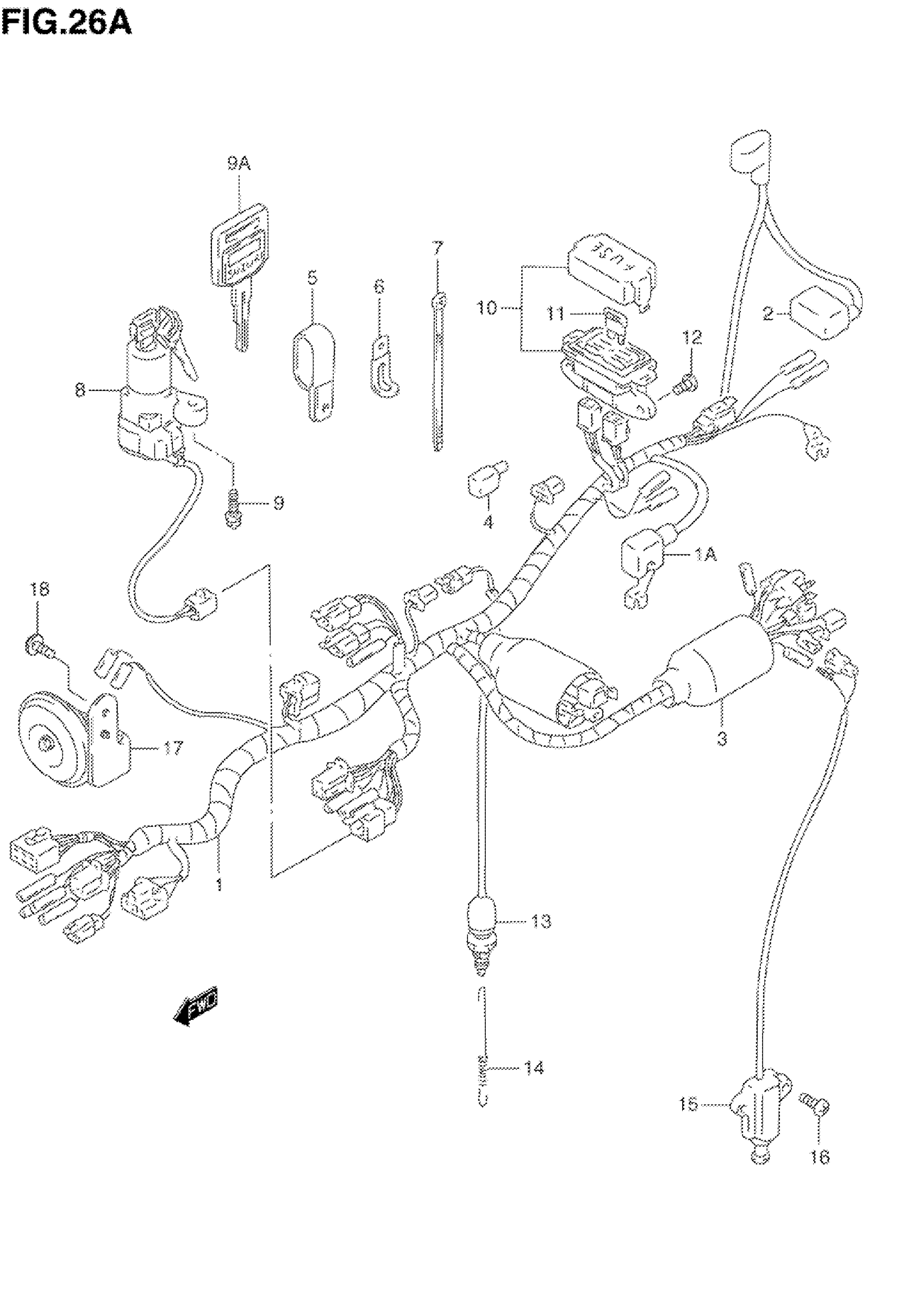

1995 Suzuki DR650SES Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 1A - 4

36610-12E60

1
Out of stock

1A

CAP, BATTERY (+) TERMINAL | MODEL R This part replaces 33624-27A00.

33624-43500

1
Out of stock

1A

CAP, BATTERY PLUG | MODEL S

33624-43500

1
Out of stock

2

CAP, STARTER RELAY

31861-10D00

1
Out of stock

3

BOOT

36618-30000

1
Out of stock

4

BOOT, DECOMP

32980-44B00

1
Out of stock

5

CLAMP

09403-19406

1
Out of stock

6

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock

6

CLAMP

09404-06607

1
Out of stock

6

CLAMP

09404-08420

2
Out of stock

7

CLAMP

09407-12402

2
Out of stock

7

CLAMP (L:125)

09407-14403

13
Out of stock

7

CLAMP This part replaces 09407-18403.

09407-18402

2
Out of stock

7

CLAMP (L:235)

09407-25401

3
Out of stock

8

LOCK ASSY, STEERING

37100-12E10

1
Out of stock

9

SCREW

09139-06026

2
Out of stock

9A

KEY, BLANK | OPT

37146-26D10

1
Out of stock

10

FUSE ASSY | Includes Item(s) 11 - 11

36740-12E10

1
Out of stock

11

FUSE (10A)

09481-10101

3
Out of stock

11

FUSE (20A)

09481-20101

3
Out of stock

12

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

13

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

14

SPRING This part replaces 09443-06079.

09443-06079-XC0

1
Out of stock

15

SWITCH ASSY,SID | MODEL R This part replaces 37840-44A20.

37840-44X52

1
Out of stock

15

SWITCH ASSY,SID | MODEL S This part replaces 37840-44X50.

37840-44X52

1
Out of stock

16

SCREW This part replaces 02112-06203.

02112-0620A

2
Out of stock

17

HORN ASSY

38500-44B00

1
Out of stock

18

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

1
Out of stock

18

BOLT, CLAMP | MODEL S This part replaces 01550-06123.

01550-0612A

1
Out of stock
