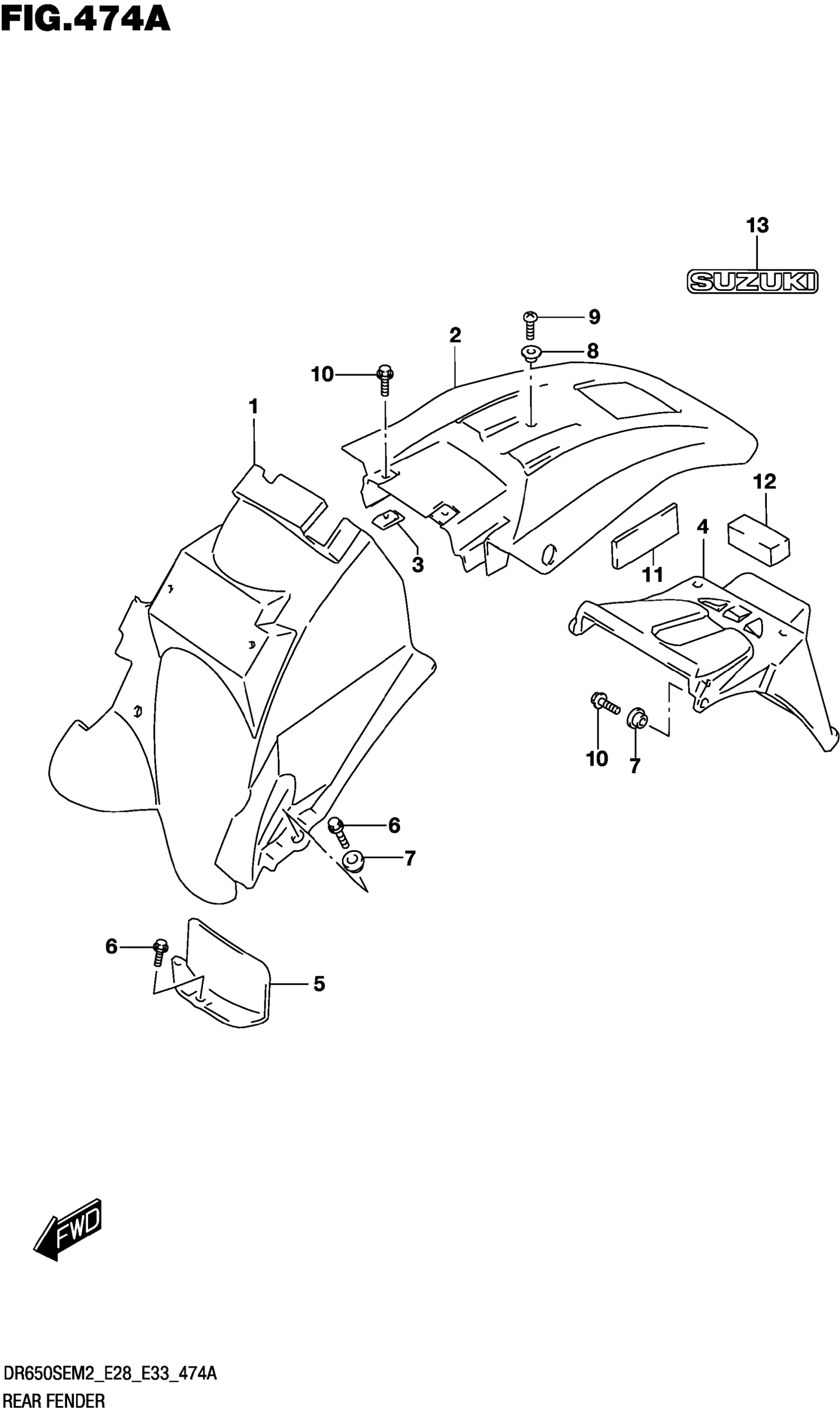

Find the part on the Rear Fender diagram for your 2022 Suzuki DR650SEM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DR650SEM2 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY,REAR FENDER FRONT

63112-32E00

1
Out of stock

2-1

BODY,RR FENDER RR (BLACK) | BODY COLOR:019

63113-32E30-019

1
Out of stock

2-2

BODY,RR FENDER RR (WHITE) | BODY COLOR:30H

63113-32E30-30H

1
Out of stock

3

PLATE,FRAME COVER

47153-19C01

2
Out of stock

4

EXTENSION,REAR FENDER

63311-32E00

1
Out of stock

5

MUD GUARD,REAR FENDER

63411-32E00

1
Out of stock

6

BOLT (6X16)

09113-06001

4
Out of stock

7

WASHER (6.1X17.0X4.8)

09169-06073

4
Out of stock

8

WASHER (6.3X16X1)

09169-06053

1
Out of stock

9

SCREW(6X16) This part replaces 09139-06024.

09139-06237

1
Out of stock

10

BOLT

01550-0616B

6
Out of stock

11

CUSHION,REAR FENDER

63118-32E00

2
Out of stock

12

1

$16.15

In stock

13-1

EMBLEM, "SUZUKI" (SILVER,BLAC | ) BODY COLOR:019

68177-04A00-CT5

1
Out of stock

13-2

EMBLEM, "SUZUKI" (WHITE,BLACK | BODY COLOR:30H

68177-04A00-8YM

1
Out of stock
