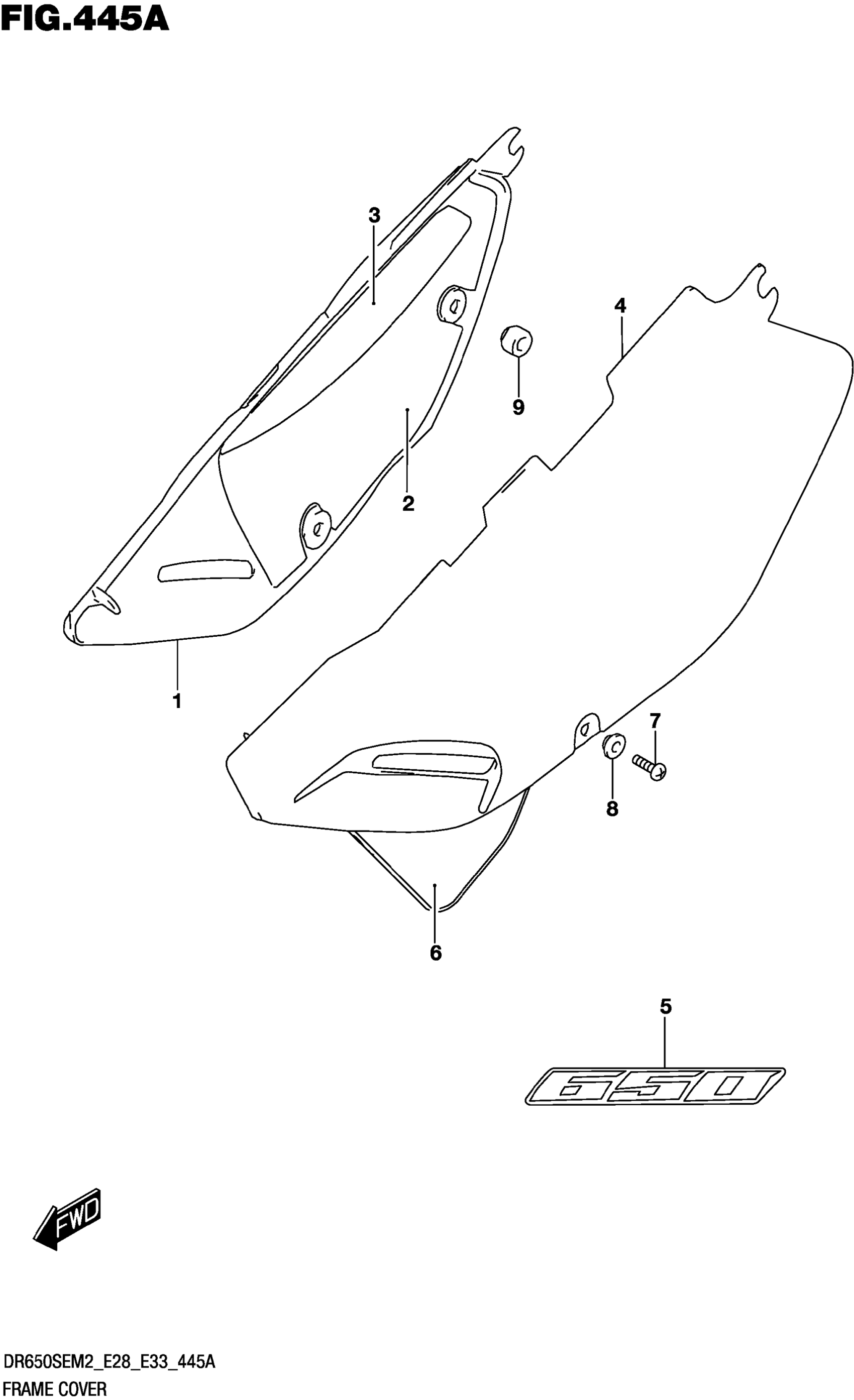

Suzuki DR650SEM2 (2022) FRAME COVER Diagram

#

Description

Price

1-1

COVER,FRAME RH (BLACK) | BODY COLOR:019

47111-32E10-019

$147.77

1-2

COVER,FRAME RH (WHITE) | BODY COLOR:30H

47111-32E10-30H

$147.77

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$67.28

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$26.70

4-1

COVER,FRAME LH (BLACK) | BODY COLOR:019

47211-32E10-019

$159.42

4-2

COVER,FRAME LH (WHITE) | BODY COLOR:30H

47211-32E10-30H

$154.20

5-1

EMBLEM,"650" (GRAYBLACK) | BODY COLOR:019

68135-32E80-J7A

$10.02

5-2

EMBLEM,"650" (WHITE,BLACK) | BODY COLOR:30H

68135-32E80-8YM

$10.08

6

TAPE,FRAME COVER LWR,L

68146-32E00

$17.02

7

SCREW

02142-0616A

$1.37

8

WASHER This part replaces 09169-06028.

09169-06041

$1.97

9

CUSHION

09321-10019

$4.42
