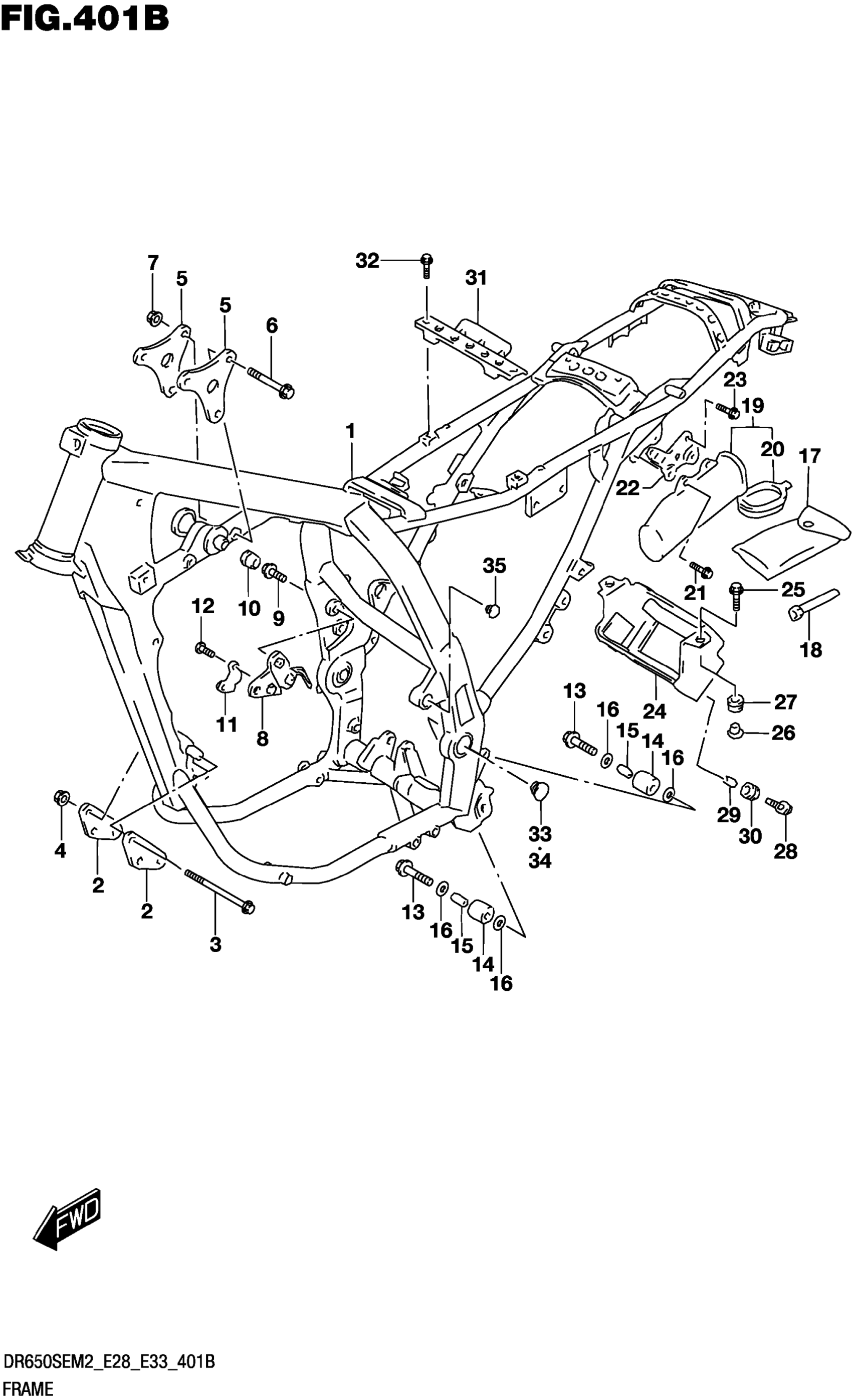

Suzuki DR650SEM2 (2022) FRAME (E33) Diagram

#

Description
Price

1

FRAME (GLAY)

41100-32E80-YPT

$2,197.82

2

PLATE,ENG MTG,FRONT

41911-32E00

$20.52

3

BOLT (8X100)

09103-08139

$7.89

4

NUT

08319-3108A

$2.31

5

PLATE,ENG MTG,UPPER

41991-32E00

$40.92

6

.BOLT (8X55)

09103-08339

$3.19

7

NUT

08319-3108A

$2.31

8

PLATE,ENG MTG,REAR RH (BLACK)

41930-32E00-019

Unavailable

9

BOLT (8X20)

01550-0820A

$2.25

10

PLUG (OD:22)

09250-20012

$9.78

11

BRACKET,STOP SWITCH

43251-32E00

Unavailable

12

SCREW

02162-0616B

$2.06

13

BOLT (8X38)

09103-08178

$4.29

14

ROLLER CHAIN CONTROL UPR

43911-13E00

$20.56

15

SPACER (8.6X12.2X26.5)

09180-08215

$3.84

16

WASHER

08211-08201

$2.06

17

TOOL ASSY

09800-21084

$45.17

18

SPANNER,BOX (16)

09816-00100

Unavailable

19

HOLDER,TOOL

41550-32E00

$82.18

20

.CAP, TOOL HOLDER

41552-37210

$9.21

21

BOLT (6X16)

09116-06006

$1.88

22

BRACKET,TOOL HOLDER

47440-32E00

$19.23

23

BOLT

01550-0616B

$2.53

24

HOLDER,BATTERY

41540-32E00

Unavailable

25

BOLT (6X20)

09116-06167

$2.19

26

WASHER (8.5X20X8)

09169-06065

$4.70

27

CUSHION (8.5X20X8)

09320-08510

$1.70

28

BOLT (6X16)

09116-06213

$3.42

29

SPACER (6.1X9X7.5)

09180-06038

$1.86

30

CUSHION (8.5X20X8)

09320-08510

$1.70

31

PLATE,BATTERY FITTING

41561-32E00

$25.52

32

BOLT

01550-0610B

$2.43

33

PLUG,FRAME PIVOR RH

43585-32E00

$4.28

34

PLUG,FRAME PIVOR LH

43595-32E00

$4.28

35

PLUG,FRAME BOSS

43586-32E00

$5.52
