Description

Price

1

CYLINDER ASSY,REAR MASTER

69600-32E00

$348.28

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$30.88

3

.BOOT

69691-00A00

$5.22

4

.YOKE

69692-13E00

$18.80

5

.ROD, PUSH

69670-27A30

$29.60

6

.NUT

69693-05A00

$1.86

7

.CONNECTOR

69672-00B20

$6.72

8

.O RING

69686-34200

$2.80

9

.CIRCLIP

69674-00B20

$3.90

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.43

11

PIN

09200-08048

$2.80

12

WASHER (8.5X14X1.6)

09160-08090

$2.46

13

COTTER PIN

04111-2015A

$1.25

14

TANK ASSY, REAR RESERVOIR

69740-03D00

$85.67

15

.DIAPHRAGM

69667-00B20

$20.82

16

.PLATE

69668-00B20

$8.65

17

.CAP

69669-03D00

$25.55

18

BOLT

01550-0616A

$2.01

19

GUARD,RSVR TANK CAP

69743-14D10

Unavailable

20

HOSE,RESERVOIR TANK

69730-32E00

$55.55

21

CLIP

09401-12404

$2.44

22

HOSE,REAR BRAKE This part replaces 69480-32E01.

69480-32E02

$72.12

23

UNION

09360-10062

$5.99

24

WASHER (10X15X1.5)

09161-10009

$1.89

25

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.91

26

SCREW This part replaces 02142-0510A.

02142-0510B

$1.82

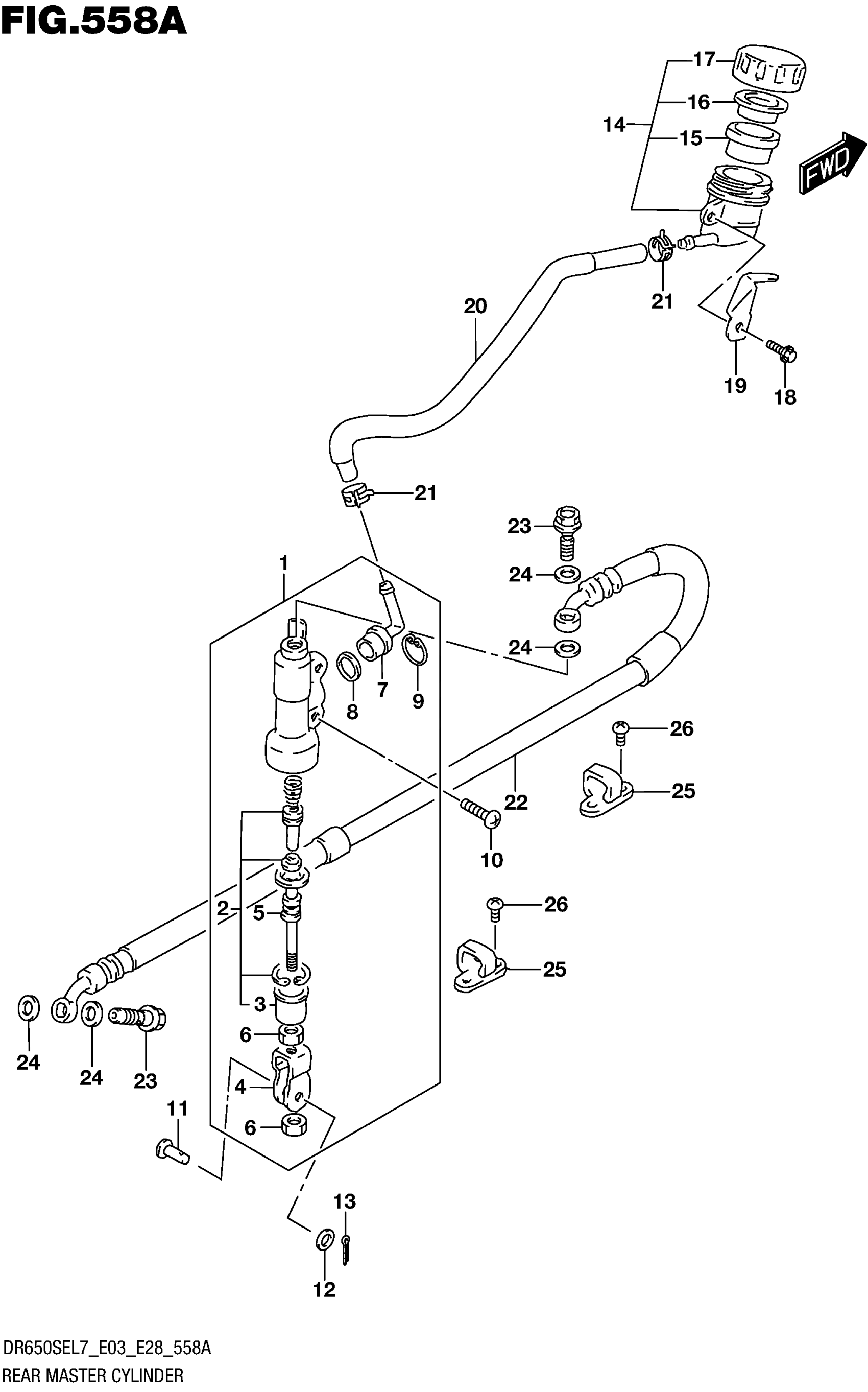

Suzuki DR650SEL7 (2017) REAR MASTER CYLINDER Diagram
