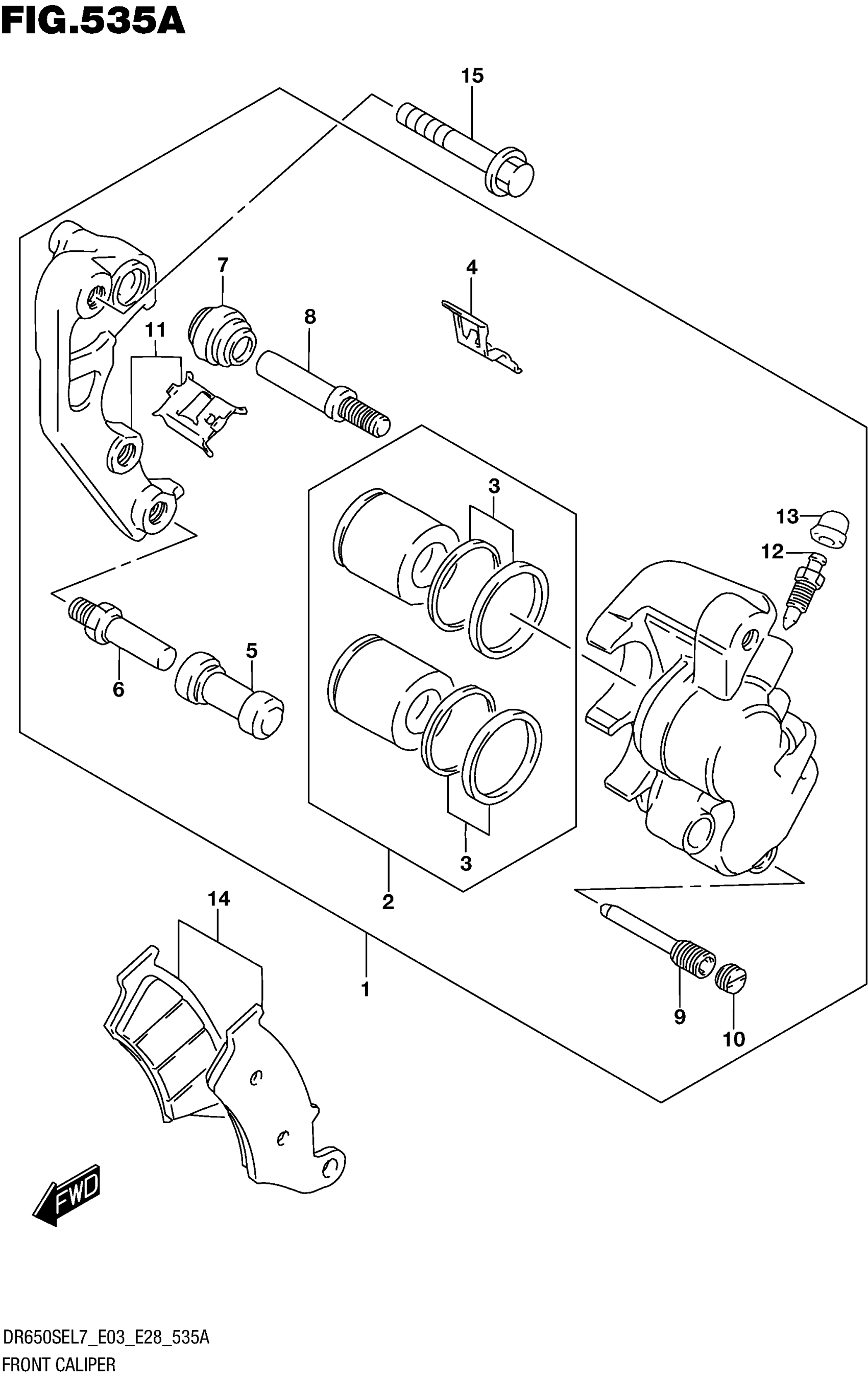

Suzuki DR650SEL7 (2017) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FR LH

59300-13E01-999

$394.48

2

.PISTON SET

59300-27840

$47.57

3

..SEAL SET, PISTON

59300-13820

$21.18

4

.SPRING

59315-13E00

$14.51

5

.BOOT

59386-13A00

$7.60

6

.PIN

59382-14500

$8.81

7

.BOOT

59303-14500

$5.29

8

.PIN

59305-27C00

$26.52

9

.PIN

59345-13E00

$13.73

10

.PLUG

59146-21E10

$5.88

11

.BRACKET

59350-13E00

$152.71

12

.BLEEDER

59121-01A00

$8.35

13

.CAP

59122-48H00

Unavailable

14

PAD SET

59300-13830

$38.12

15

BOLT (8X40)

09103-08338

$2.80
