2014 Suzuki DR650SEL4 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2014 Suzuki DR650SEL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

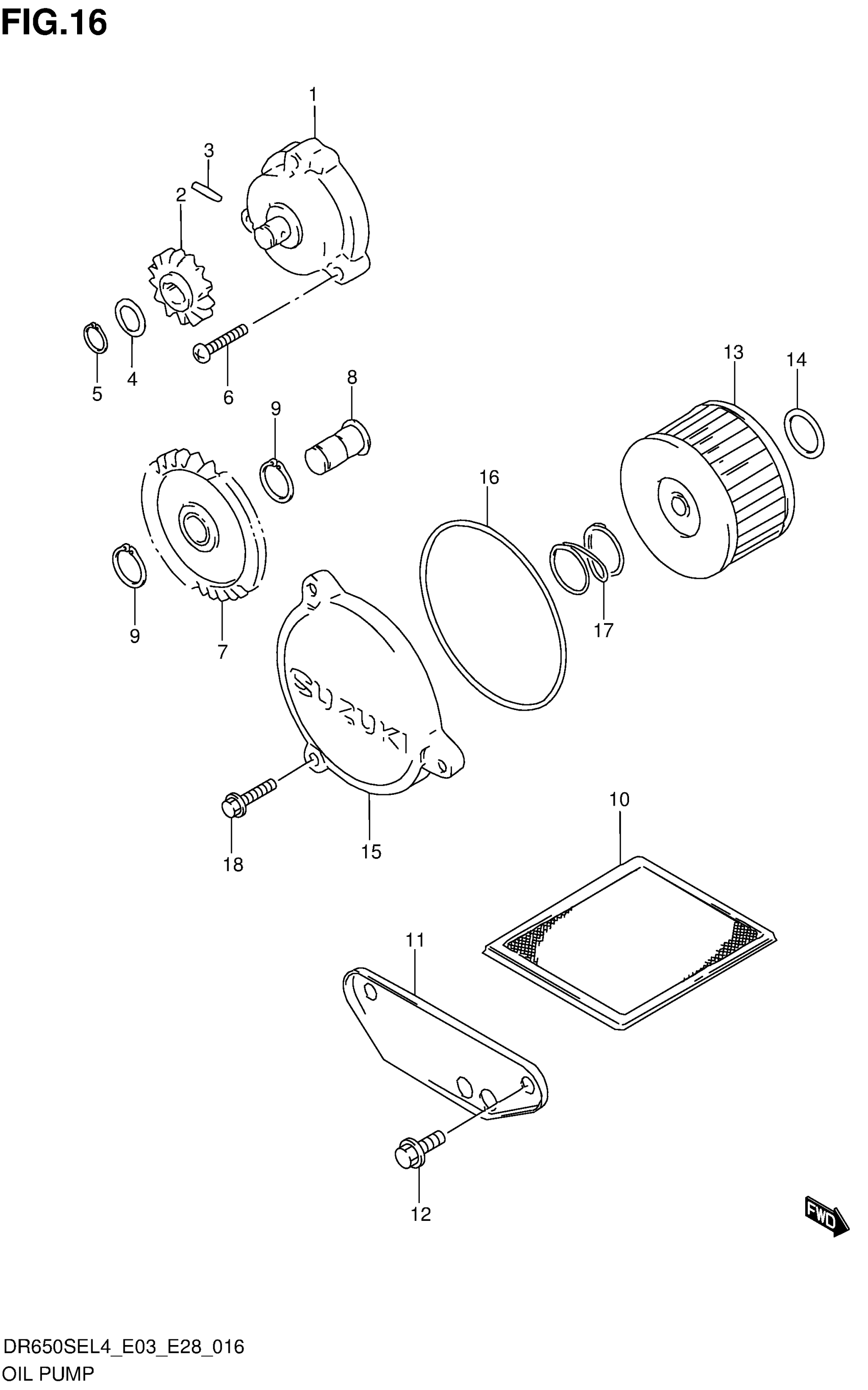

2014 Suzuki DR650SEL4 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,ENG OIL

16400-32E00

1

$212.72

In stock

2

GEAR, DRIVEN | NT:15

16331-32E00

1

$46.52

In stock

3

PIN (4X15.8)

09261-04009

1
Out of stock

4

SHIM (10X20X0.5)

09181-10186

1

$2.13

In stock

5

CIRCLIP

08331-31109

1
Out of stock

6

SCREW

02112-0625A

3
Out of stock

7

1

$26.80

In stock

8

SHIFT,ENG OIL PUMP DRIVE GEAR

16322-32E01

1
Out of stock

9

CIRCLIP

08331-3112A

2
Out of stock

10

1

$13.42

In stock

11

CAP,OIL STRAINER

16523-32E00

1
Out of stock

12

BOLT (6X12)

09103-06285

2
Out of stock

13

FILTER, ENGINE OIL

16510-37450

1

$5.78

In stock

14

1

$1.83

In stock

15

CAP,OIL FILTER

16512-14D00

1

$40.83

In stock

16

.O RING (D:2.4,ID:73)

09280-72001

1

$4.79

In stock

17

SPRING

09440-21006

1

$2.18

In stock

18

BOLT

01547-06167

3
Out of stock
