Description

Price

1

CRANKSHAFT SET

12000-32820

$1,207.20

2

ROD, CONNECTING

12161-32E00

$177.00

3

PIN, CRANK

12211-32E00

$97.10

4

BEARING (37X47X25)

09263-37004-0C0

$57.85

5

WASHER (37X55X1)

09160-37006

$11.52

6

CRANKSHAFT SET, RH

12221-32810

Unavailable

7

CRANKSHAFT, LH

12261-32E00

Unavailable

8

BEARING (40X80X18) | RH

09262-40008

$87.28

9

BEARING (45X85X19) | LH

09262-45011

$95.65

10

OIL SEAL (16X30X6) | RH

09282-16002

$9.10

11

PLATE, RH

12548-37400

$4.65

12

SCREW

02112-0508A

$1.46

13

NUT,CRANKSHAFT BRG LH

12664-04F00

$54.60

14

GEAR, PRIMARY DRIVE | NT:28

21111-32E00

$86.48

15

NUT

09140-20013

$4.04

16

WASHER

09164-20003

$4.18

17

KEY

09420-05007

$5.00

18

PISTON

12111-32E00-0F0

$127.28

19

RING SET,PISTON

12140-32E10

$49.81

20

PIN, PISTON

12151-14A01

$23.02

21

CIRCLIP

09381-23003

$1.52

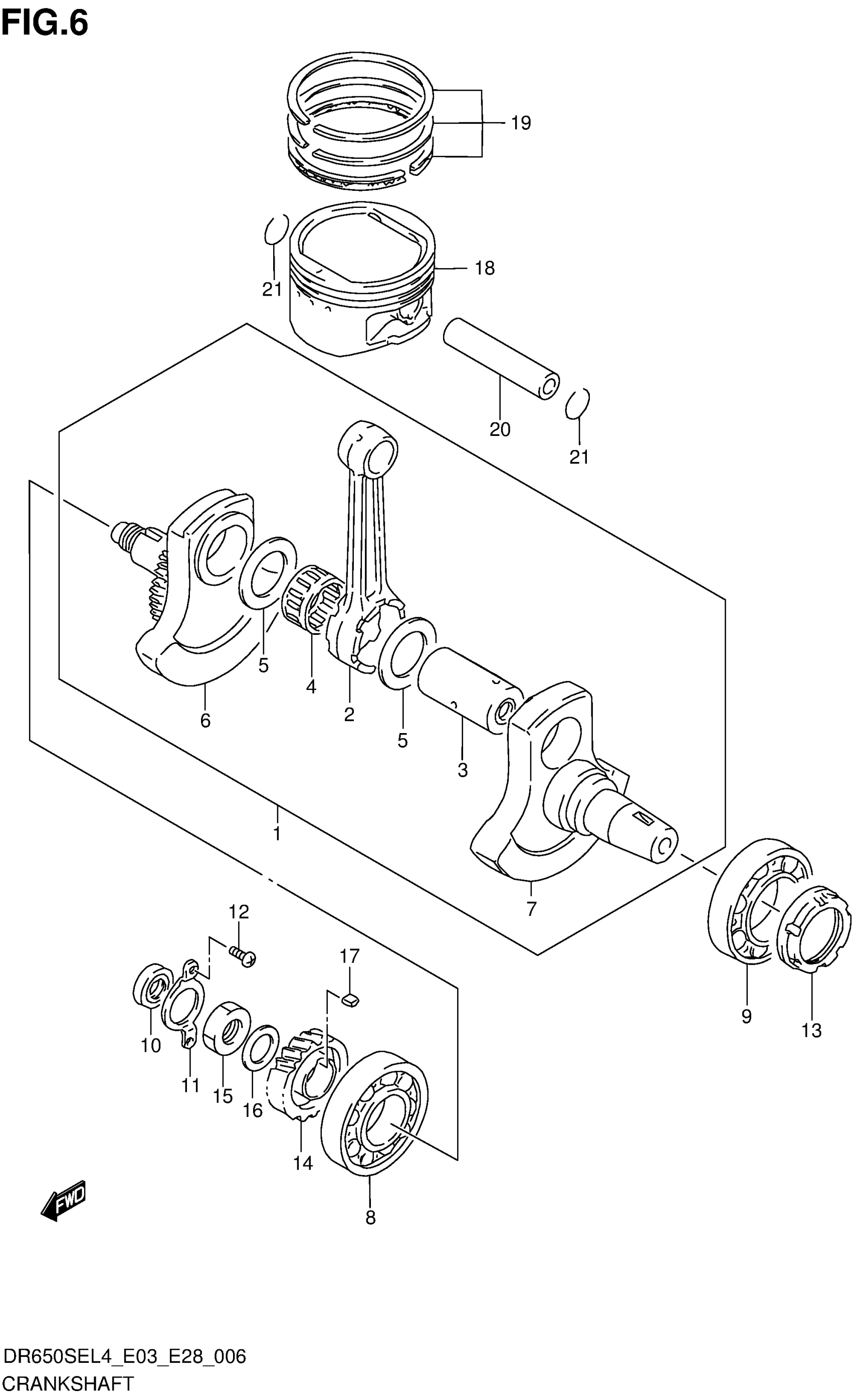

Suzuki DR650SEL4 (2014) CRANKSHAFT Diagram
