2000 Suzuki DR650SE Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2000 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

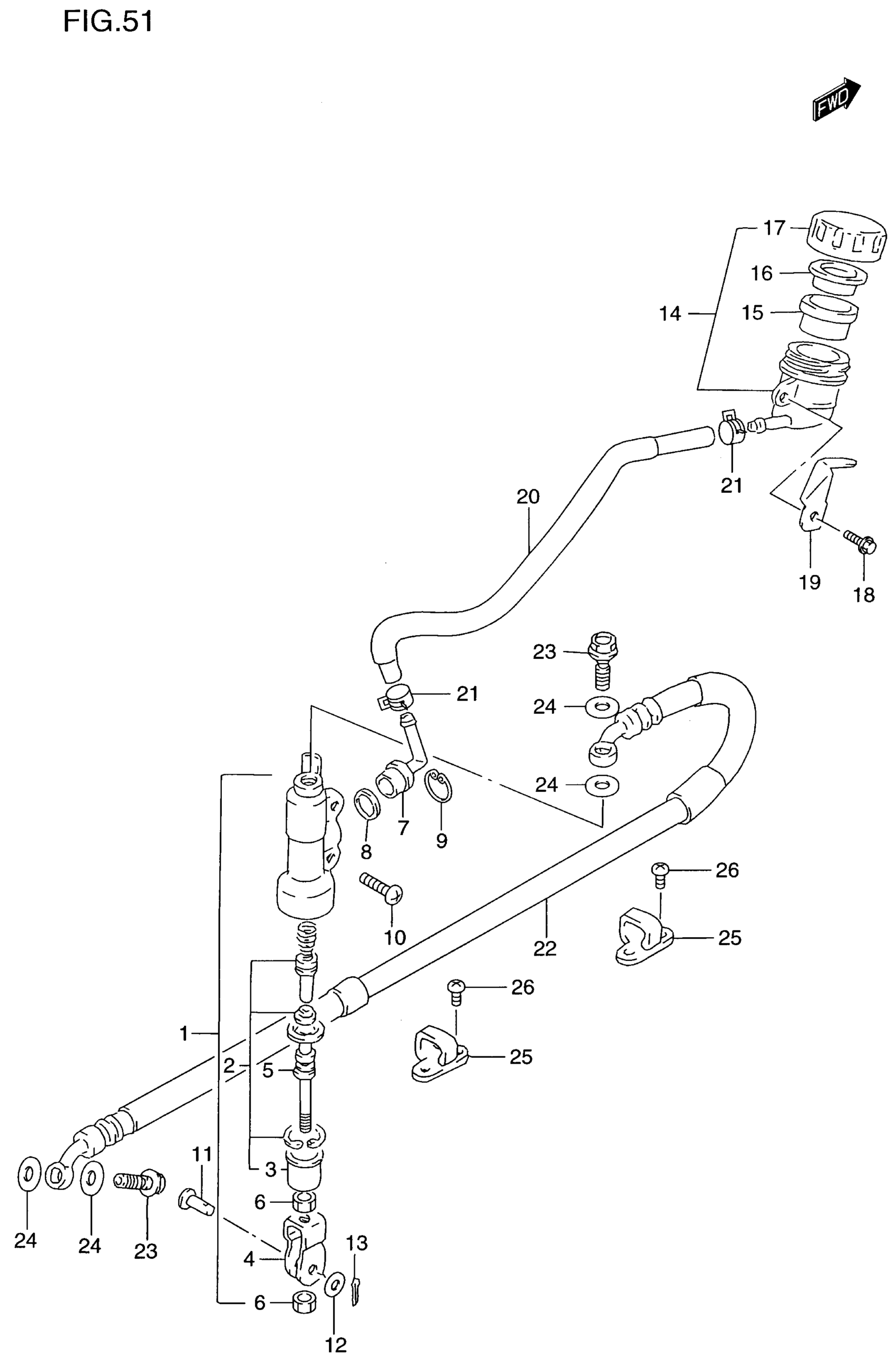

2000 Suzuki DR650SE Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,REAR MASTER | Includes Item(s) 2 - 9

69600-32E00

1
Out of stock

2

1

$32.18

In stock

3

.BOOT

69691-00A00

1
Out of stock

4

YOKE

69692-13E00

1
Out of stock

5

ROD, PUSH

69670-27A30

1
Out of stock

6

NUT

69693-05A00

2
Out of stock

7

CONNECTOR

69672-00B20

1
Out of stock

8

O RING

69686-34200

1
Out of stock

9

CIRCLIP

69674-00B20

1
Out of stock

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

2
Out of stock

11

PIN

09200-08048

1
Out of stock

12

WASHER | MODEL T/V

09160-08074

1
Out of stock

12

WASHER | MODEL W/X/Y This part replaces 09160-08119.

09160-08090

1
Out of stock

13

PIN This part replaces 04111-25158.

04111-2515A

1
Out of stock

14

TANK ASSY, REAR RESERVOIR | Includes Item(s) 15 - 17

69740-03D00

1
Out of stock

15

DIAPHRAGM

69667-00B20

1
Out of stock

16

PLATE

69668-00B20

1
Out of stock

17

CAP

69669-03D00

1
Out of stock

18

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

19

GUARD,RSVR TANK CAP

69743-14D10

1
Out of stock

20

HOSE,RESERVOIR TANK

69730-32E00

1
Out of stock

21

CLAMP, HOSE

09401-12404

2
Out of stock

22

HOSE,REAR BRAKE This part replaces 69480-32E00.

69480-32E02

1
Out of stock

23

UNION This part replaces 09360-10042.

09360-10062

2
Out of stock

24

WASHER (10X15X1.5)

09161-10009

4
Out of stock

25

GUIDE, BRAKE HOSE (HOLE 2-5.5) (HOLE 2-5.5) (HOLE 1-5.5) | MODEL T/V

61196-27C20

2
Out of stock

26

SCREW | MODEL T/V This part replaces 02142-05103.

02142-0510B

4
Out of stock

26

SCREW | MODEL W/X/Y This part replaces 02142-05103.

02142-0510B

2
Out of stock
