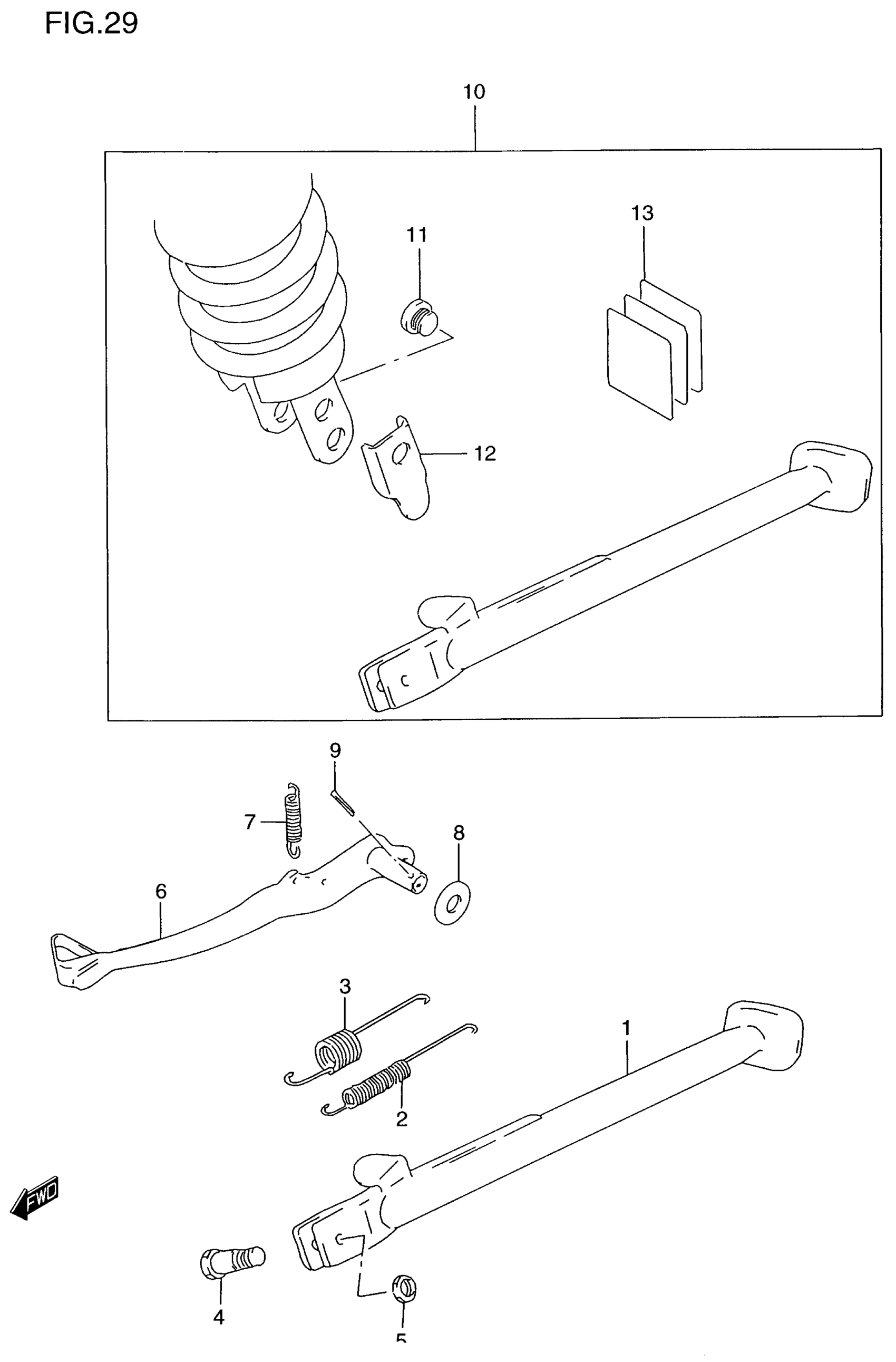

Suzuki DR650SE (2000) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP

42310-32E20

$153.22

2

SPRING, INNER

09443-12045

$7.08

3

SPRING, OUTER

09443-19010

$5.97

4

BOLT

09111-10047

$3.76

5

NUT

09159-10097

$5.10

6

PEDAL,BRAKE

43110-32E00

$96.75

7

SPRING, RETURN

09443-11030

$3.33

8

WASHER | MODEL T/V

09160-15002

$1.70

8

WASHER | MODEL W/X/Y

09160-15049

$3.22

9

PIN This part replaces 04111-30308.

04111-3030A

$1.37

10

STAND SET, PROP (L0W) | OPT; Includes Item(s) 11 - 12

42300-32820

$129.95

11

PLUG (10X5) | OPT

09248-10006

$5.10

12

PLATE | OPT

62184-32E00

$11.00

13

LABEL SET, WARNING | OPT

68380-32E10

Unavailable
