1993 Suzuki DR650S OIL Pump Diagram

← All diagrams

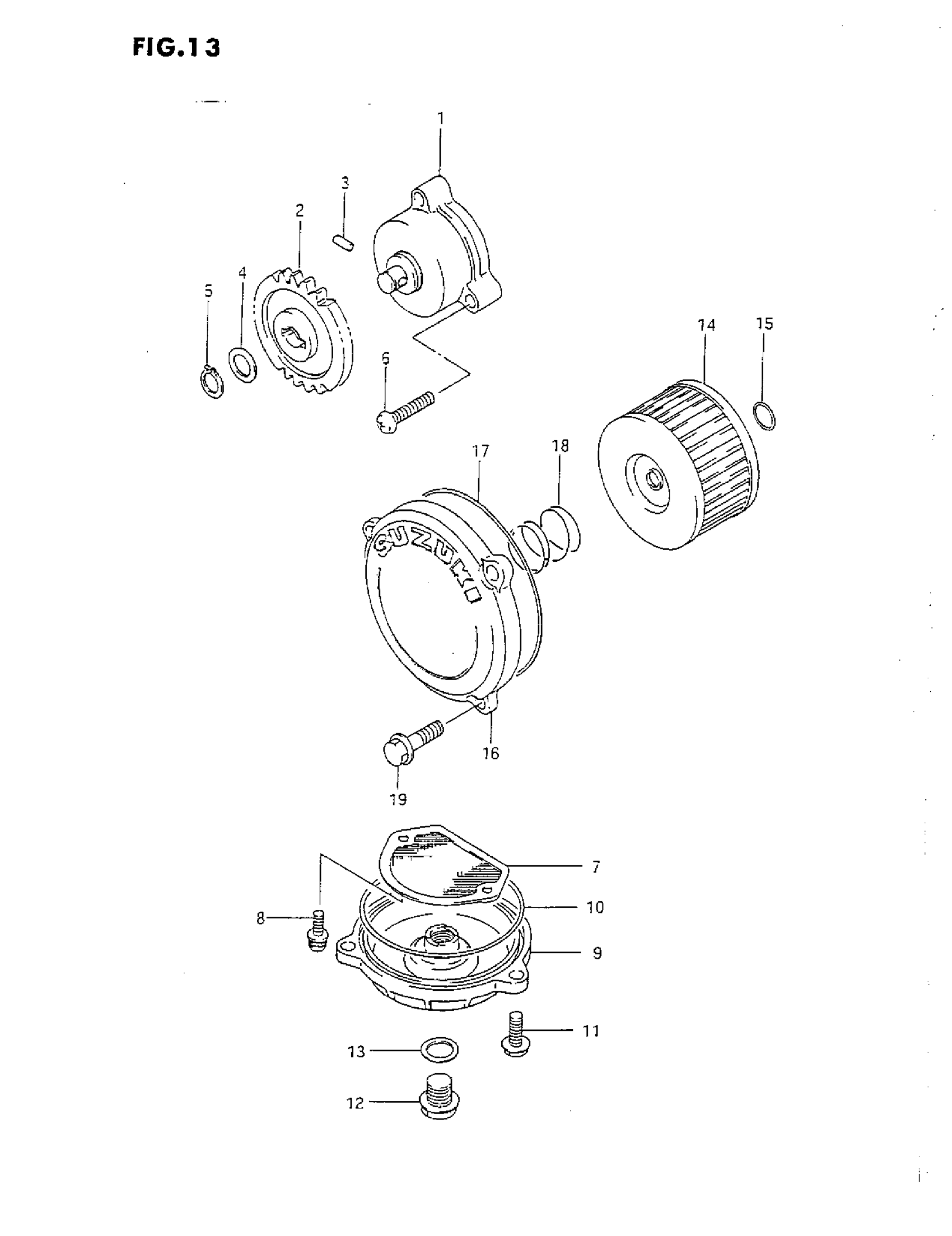

Find the part on the OIL Pump diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR650S OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-12D00

1
Out of stock

2

GEAR, DRIVEN (NT:22)

16331-12D10

1
Out of stock

3

P1N

09261-04009

1
Out of stock

4

WASHER

08221-10185

1
Out of stock

5

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

6

SCREW | MODEL N/P

02112-06257

3

$1.94

In stock

6

SCREW | MODEL R This part replaces 02112-06253.

02112-0625A

3
Out of stock

7

STRAINER, ENGINE OIL

16520-14A00

1
Out of stock

8

SCREW This part replaces 02112-75126.

02112-7512A

2
Out of stock

9

CAP , OIL STRAINER

16523-37402

1
Out of stock

10

O-RING (D:2.4, ID:82)

09280-82001

1

$5.01

In stock

11

3

$2.43

In stock

11

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

3
Out of stock

12

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

13

GASKET | MODEL N/P

09168-14004

1

$1.96

In stock

13

GASKET | MODEL R

09168-14002

1
Out of stock

14

1

$5.78

In stock

15

1

$2.36

In stock

15

1

$1.83

In stock

16

CAP, OIL FILTER

16512-12E00

1

$36.22

In stock

17

.O RING (D:2.4,ID:73)

09280-72001

1

$4.79

In stock

18

SPRING | MODEL N/P

09440-21004

1

$2.99

In stock

18

SPRING | MODEL R

09440-21006

1

$2.18

In stock

19

BOLT

01547-06167

3
Out of stock
