1993 Suzuki DR650S Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

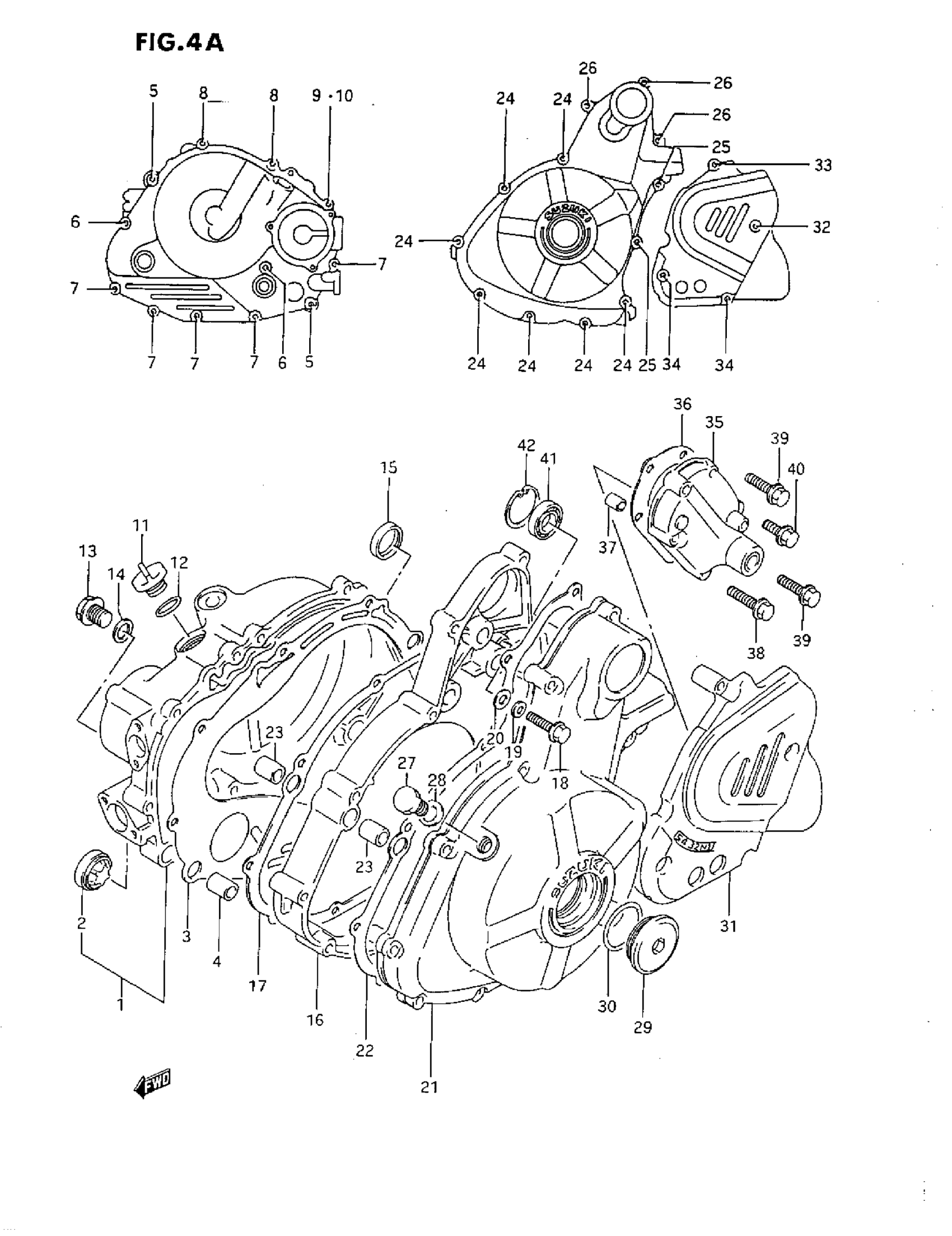

1993 Suzuki DR650S Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-12D30

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER

11482-12D01

1
Out of stock

4

PIN

04211-13189

2
Out of stock

5

BOLT (6X50)

01547-06507

2
Out of stock

6

BOLT (6X40)

01547-06407

2
Out of stock

7

BOLT (6X35)

01547-06357

5
Out of stock

8

BOLT (6X25)

01547-06257

2
Out of stock

9

BOLT (6X25)

09103-06180

1
Out of stock

10

WASHER

08322-01067

1
Out of stock

11

.PLUG This part replaces 09259-20008.

09259-20008-XC0

1
Out of stock

12

O-RING

09280-17003

1
Out of stock

13

PLUG, OIL CHECK

09247-14015

1
Out of stock

14

GASKET

09168-14002

1
Out of stock

15

PLUG, CLUTCH COVER HOLE

11342-15D00

1
Out of stock

16

COVER, MAGNETO INNER

11331-12D30

1
Out of stock

17

GASKET, MAGNETO INNER COVER

11483-12D10

1
Out of stock

18

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

1
Out of stock

19

LOCK WASHER This part replaces 08321-01063.

08321-0106A

1
Out of stock

20

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

21

COVER, MAGNETO OUTER

11351-12D40

1
Out of stock

22

GASKET, MAGNETO OUTER COVER

11483-12D20

1
Out of stock

23

PIN

04211-13189

4
Out of stock

24

BOLT (6X60)

01547-06607

7
Out of stock

25

BOLT (6X55)

01547-06557

2
Out of stock

26

BOLT (6X35)

01547-06357

3
Out of stock

27

PLUG, T.D.C

09247-12103

1
Out of stock

28

GASKET

09168-12002

1
Out of stock

29

PLUG

09259-36016-20H

1
Out of stock

30

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

31

COVER, ENGINE SPROCKET

11361-12D40

1
Out of stock

32

BOLT (6X45)

01547-06457

1
Out of stock

33

BOLT (6X35)

01547-06357

1
Out of stock

34

BOLT (6X20)

01547-06207

2
Out of stock

35

COVER,GEAR SHF

11371-12D30

1
Out of stock

36

GASKET, GEAR SHIFT COVER

11485-12D01

1
Out of stock

37

PIN

04211-09129

2
Out of stock

38

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

1
Out of stock

39

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

4
Out of stock

40

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

41

BEARING, STARTER PINION

09262-12001

1
Out of stock

42

CIRCLIP This part replaces 08331-41286.

08331-41289

1
Out of stock
