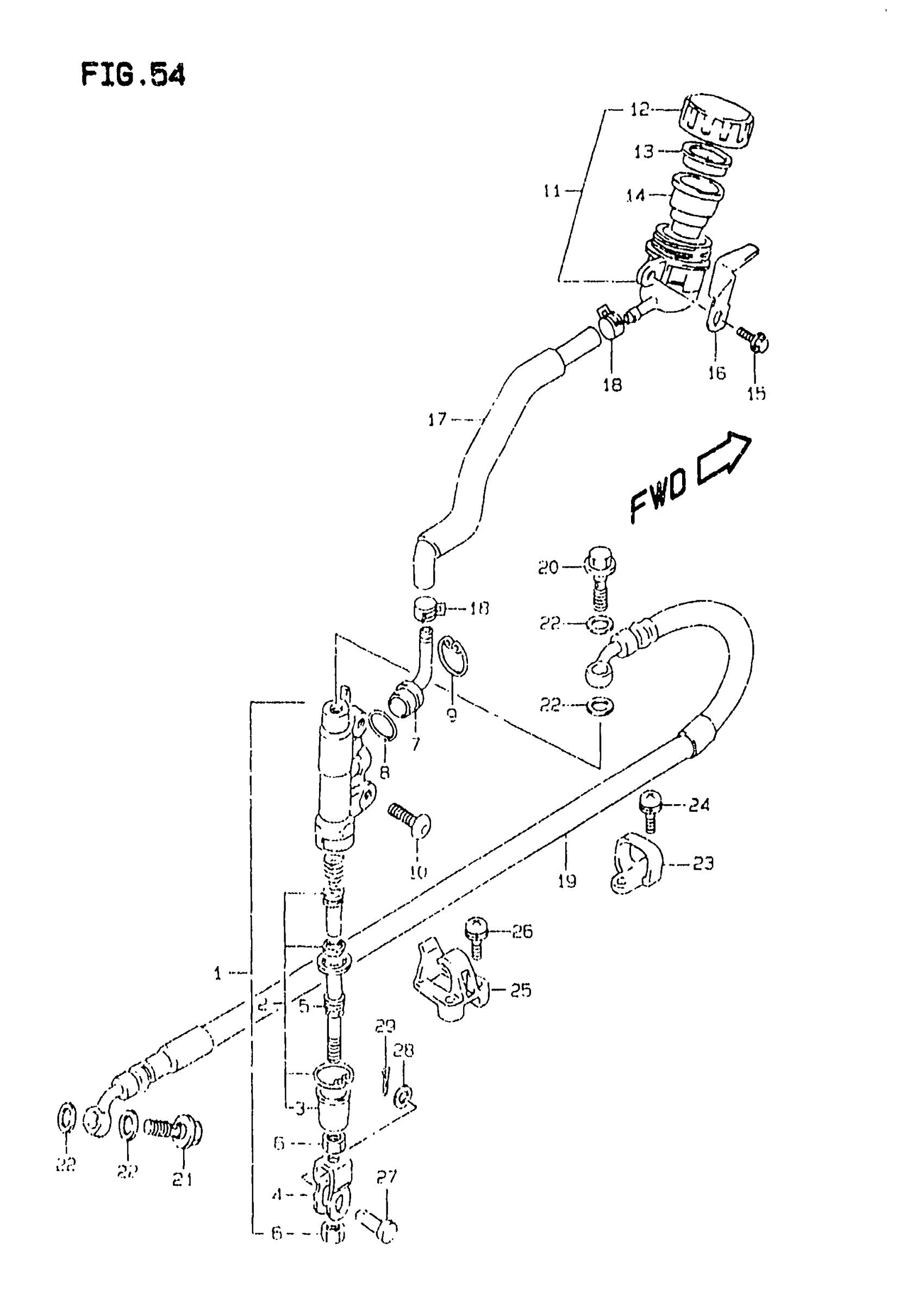

Suzuki DR350SE (1999) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-14D01

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$30.88

3

.BOOT

69691-00A00

$5.22

4

YOKE

69692-00B21

$19.22

5

ROD, PUSH

69670-00B21

$33.02

6

NUT

69693-05A00

$1.86

7

CONNECTOR

59672-17C00

$8.91

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.90

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.43

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-03D00

$85.67

12

CAP

69669-03D00

$25.55

13

PLATE

69668-00B20

$8.65

14

DIAPHRAGM

69667-00B20

$20.82

15

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.38

16

GUARD,RSVR TANK CAP

69743-14D10

Unavailable

17

HOSE, RESERVOIR TANK

69730-14D00

Unavailable

18

CLIP

09401-12404

$2.44

19

HOSE, REAR BRAKE

69480-14D00

Unavailable

20

UNION This part replaces 09360-10039.

09360-10061

$6.07

21

UNION This part replaces 09360-10040.

09360-10062

$5.99

22

WASHER (10X15X1.5)

09161-10009

$1.89

23

GUIDE, HOSE FRONT

61196-00B21

$6.69

24

SCREW This part replaces 02142-05103.

02142-0510B

$1.82

25

GUIDE, HOSE REAR

61196-03D00

$4.34

26

SCREW This part replaces 02112-35163.

02112-3516A

$2.65

27

PIN

09200-08048

$2.80

28

WASHER (8.5x13x1.6) | MODEL V

09160-08074

Unavailable

28

WASHER | MODEL W/X This part replaces 09160-08119.

09160-08090

$2.46

29

PIN This part replaces 04111-25158.

04111-2515A

$1.64
