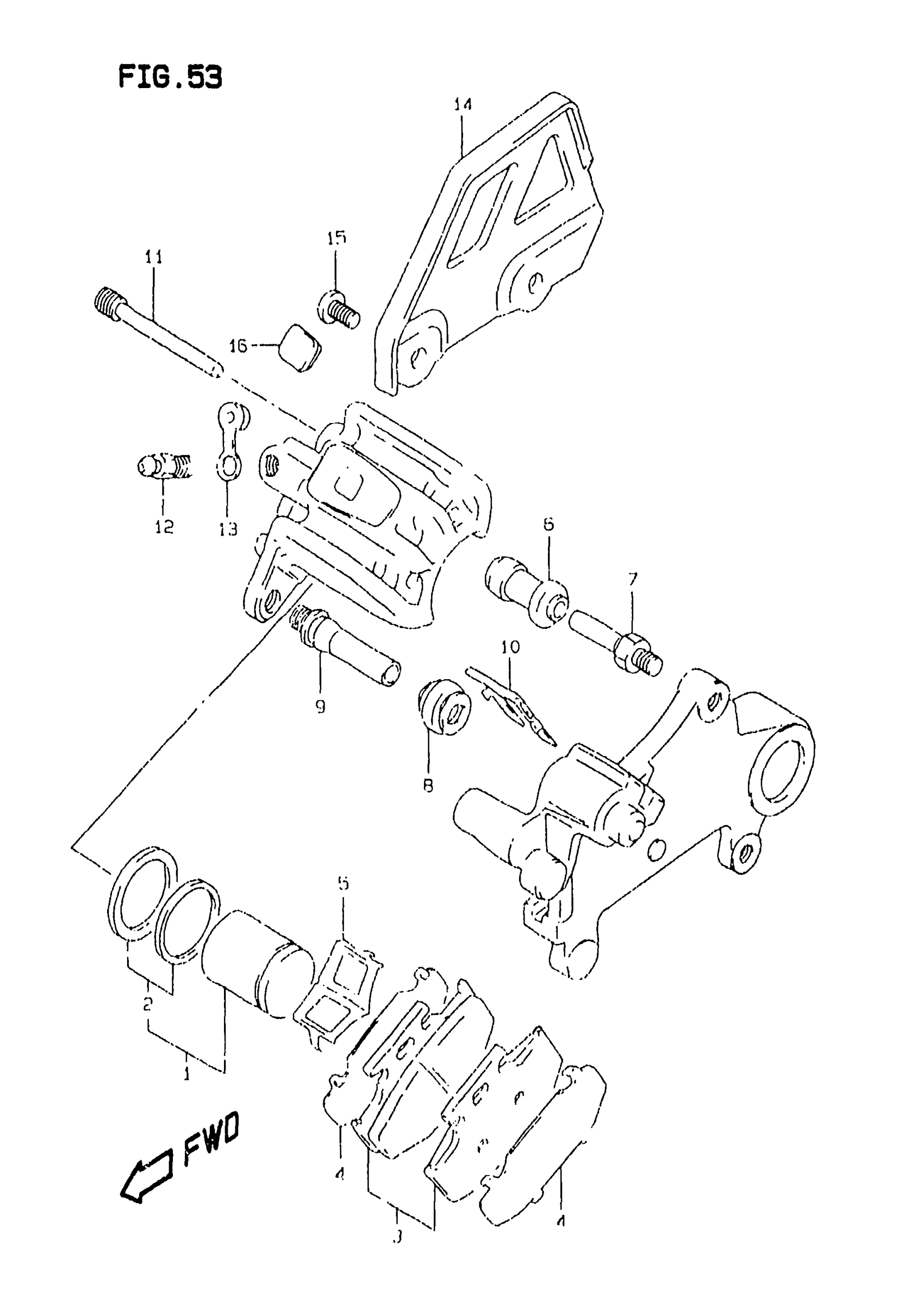

Suzuki DR350SE (1999) REAR CALIPER Diagram

#

Description
Price

0

CALIPER ASSY, REAR | Includes Item(s) 1 - 13

69100-15D20

Unavailable

1

PISTON SET

69100-03810

$50.52

2

SEAL SET, PISTON

69100-13810

$9.04

3

PAD SET

69100-15810

$72.28

4

SHIM

69132-28C00

$10.68

5

SPRING

59315-27C10

$13.20

6

BOOT

59386-13A00

$7.28

7

PIN

59382-27C30

$8.54

8

BOOT

59303-14500

$5.06

9

PIN

59305-27C00

$26.52

10

RETAINER

69113-43D00

$9.97

11

PIN

59345-14600

$18.33

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

GUARD, CALIPER

69725-14D00

Unavailable

15

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

16

COVER, CALIPER BODY

69171-14D00

Unavailable
