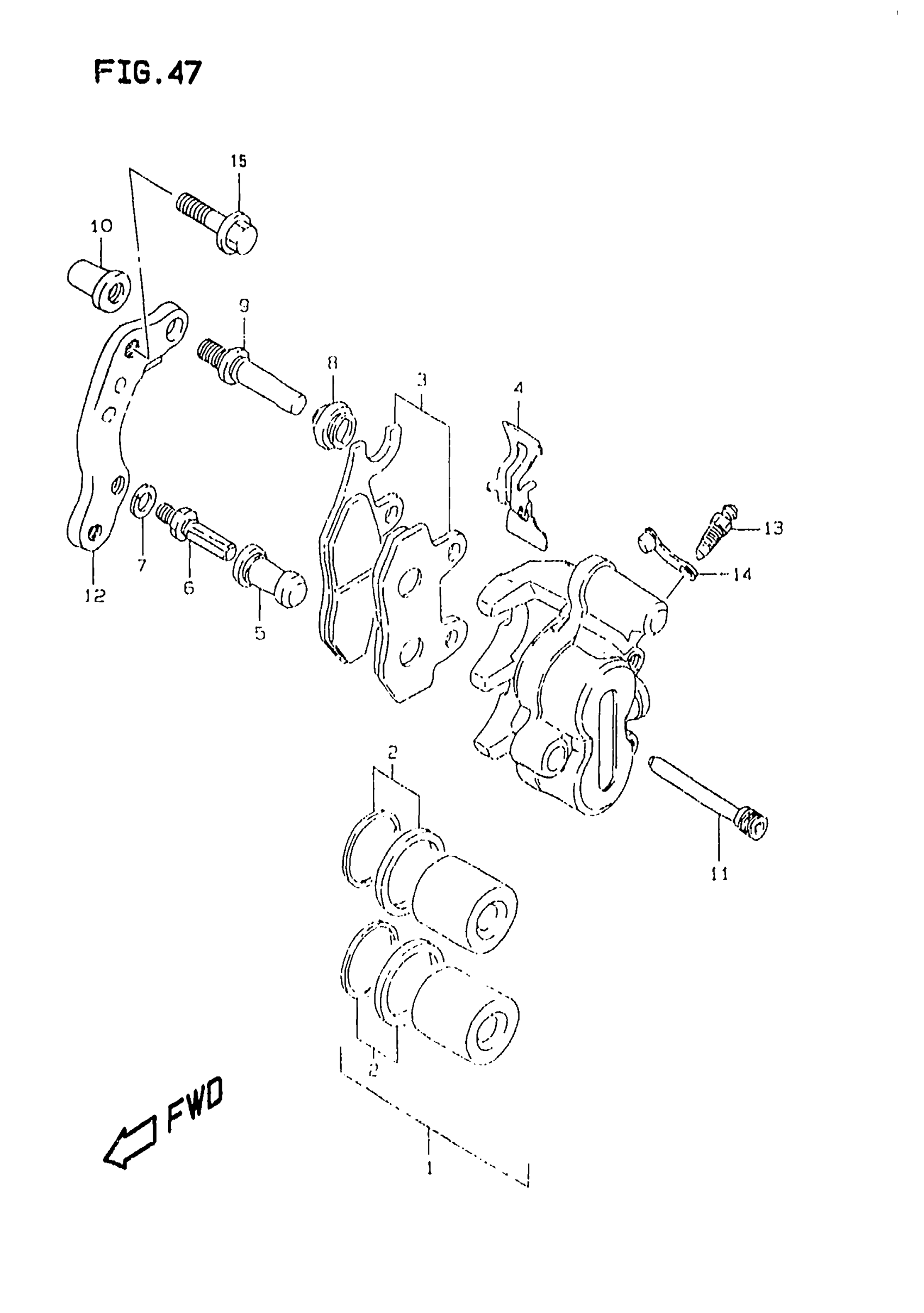

Suzuki DR350SE (1999) FRONT CALIPER (MODEL V) Diagram

#

Description
Price

0

CALIPER ASSY,FR | Includes Item(s) 1 - 14 This part replaces 59300-08D00.

59300-08D00-999

Unavailable

1

PISTON SET

59300-26840

Unavailable

2

SEAL SET, PISTON

59300-13820

$21.18

3

PAD SET

59300-08810

Unavailable

4

SPRING

59315-00B20

$13.90

5

BOOT

59386-13A00

$7.28

6

BOLT

59382-13A00

$7.24

7

WASHER

59314-13A00

$2.28

8

BOOT

59303-14500

$5.06

9

PIN

59387-00B20

$17.46

10

NUT

59388-00B20

$20.13

11

PIN

59345-00B20

$13.38

12

BRACKET

59351-00B20

$87.92

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

BOLT (8x24)

09103-08226

$5.32
