1993 Suzuki DR350S Wiring Harness Diagram

← All diagrams

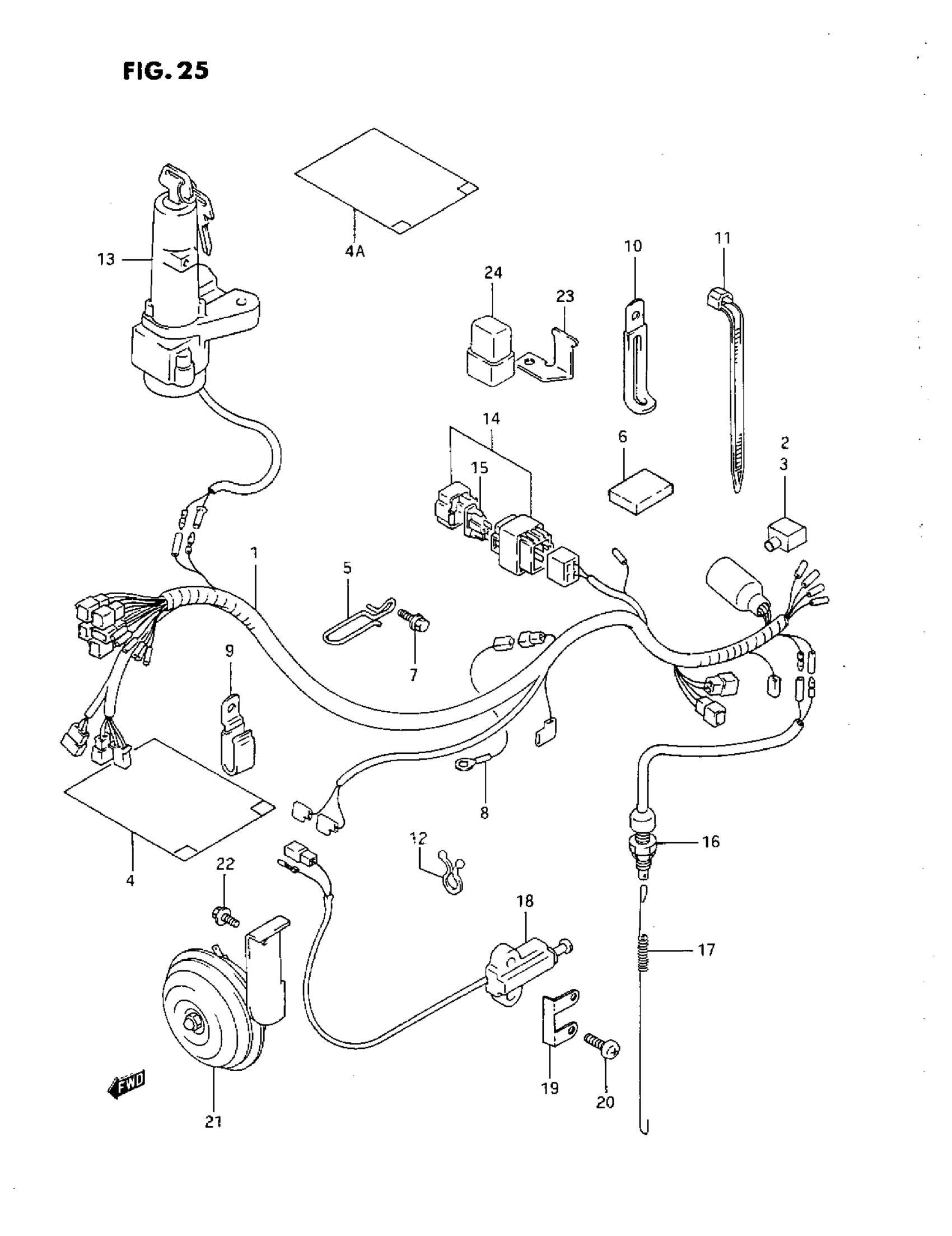

Find the part on the Wiring Harness diagram for your 1993 Suzuki DR350S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR350S Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 36610-14D30.

36610-14D21

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 36610-14D60.

36610-14D50

1
Out of stock

1

HARNESS, WIRING | MODEL R

36610-15D80

1
Out of stock

2

CAP, BATTERY PLUS | MODEL L/M/N/P

33624-03D00

1
Out of stock

2

CAP, BATTERY PLUS | MODEL R

33624-15D00

1
Out of stock

3

CAP, BATTERY MINUS This part replaces 33624-11300.

33624-03A00

1
Out of stock

5

GUIDE, WIRE HARNESS | MODEL L/M/N

36619-14D10

1
Out of stock

5

GUIDE, WIRE HARNESS | MODEL P/R

36619-15D11

1
Out of stock

6

CUSHION | MODEL L/M/N/P

36920-14D00

1
Out of stock

7

BOLT This part replaces 01517-06105.

01550-0610A

2
Out of stock

8

LEAD WIRE, IGNITION This part replaces 36851-14D00.

36851-05D00

1
Out of stock

9

CLAMP | MODEL L/M/N This part replaces 09403-06307.

09403-06329

1
Out of stock

10

CLAMP This part replaces 09404-06413.

09404-06039

1
Out of stock

10

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

3
Out of stock

10

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

1
Out of stock

10

CLAMP This part replaces 09404-06424.

09404-06039

1
Out of stock

10

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

1
Out of stock

10

CLAMP This part replaces 09404-08402.

09404-08420

1
Out of stock

10

CLAMP This part replaces 09404-08403.

09404-08420

1
Out of stock

10

CLAMP This part replaces 09404-08405.

09404-08420

3
Out of stock

11

CLAMP

09407-02401

3
Out of stock

11

CLAMP

09407-03401

2
Out of stock

11

CLAMP

09407-10404

2
Out of stock

11

CLAMP (L:125)

09407-14403

12
Out of stock

11

CLAMP

09407-14409

3
Out of stock

11

CLAMP This part replaces 09407-18403.

09407-18402

8
Out of stock

11

CLAMP (L:235)

09407-25401

3
Out of stock

12

CLIP

09408-00012

1
Out of stock

13

LOCK ASSY, STEERING This part replaces 37110-03D00.

37110-03D01

1
Out of stock

14

1

$25.08

In stock

15

1

$2.77

In stock

15

FUSE (20A) | MODEL R

09481-20101

1

$2.31

In stock

16

SWITCH ASSY, STOP | MODEL L/M/N/P

37740-14D00

1
Out of stock

16

SWITCH ASSY, STOP LAMP | MODEL R

37740-31D00

1
Out of stock

17

SPRING

09443-06080

1
Out of stock

18

SWITCH ASSY,SID | MODEL L/M/N/P This part replaces 37840-48B21.

37840-12X52

1
Out of stock

18

SWITCH ASSY,SID | MODEL R This part replaces 37840-12D00.

37840-12X52

1
Out of stock

19

PROTECTOR

37841-14D00

1
Out of stock

20

SCREW | MODEL L/M/N/P This part replaces 02142-06205.

02142-0620A

2
Out of stock

20

SCREW | MODEL R This part replaces 02142-06203.

02142-0620A

2
Out of stock

21

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 38500-14D00.

38500-14D02

1
Out of stock

21

NO DESCRIPTION AVAILABLE | MODEL M/N/P/R This part replaces 38500-14D01.

38500-14D02

1
Out of stock

22

BOLT | MODEL L/M/N/P This part replaces 01517-06164.

01550-0616A

1
Out of stock

22

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

1
Out of stock

23

BRACKET, RELAY | MODEL R

36744-14D01

1
Out of stock

24

RELAY ASSY, SIDE STAND | MODEL R This part replaces 38740-24B10.

38740-24X50

1
Out of stock
