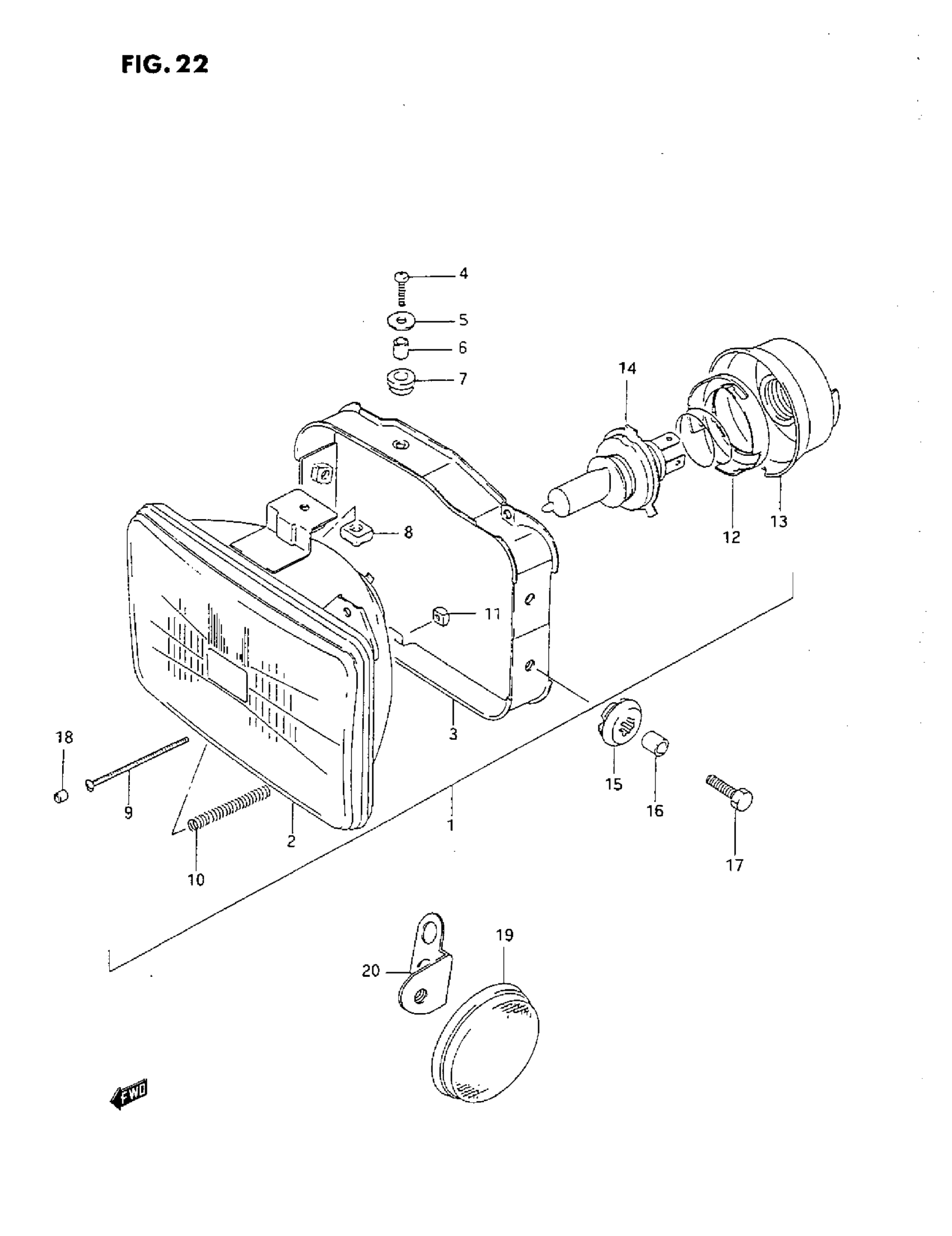

Suzuki DR350S (1993) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-14A30-999.

35100-14A33-999

$237.25

2

LAMP UNIT This part replaces 35121-14A30.

35121-14A31

Unavailable

3

RING, MOUNTING

35141-14A00

$42.37

4

SCREW

02112-05207

$1.97

5

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.95

6

SPACER

35133-14A00

Unavailable

7

CUSHION

35139-45230

$2.25

8

NUT

35135-45900

$3.67

9

SCREW | MODEL L/M/N/P This part replaces 35151-49200.

35151-45900

$3.44

9

SCREW, ADJUSTING | MODEL R

35151-45900

$3.44

10

SPRING

35154-49200

$6.22

11

NUT

35135-45600

$4.12

12

HOLDER, BULB

35136-01A00

Unavailable

13

.COVER SOCKET

35173-01440

$19.60

14

BULB (12V, 60/55W, H4)

09471-12060

$22.69

15

CUSHION

09320-09018

$2.28

16

SPACER

09180-06138

$2.58

17

BOLT (6X20) | MODEL L/M/N/P This part replaces 09116-06011.

09116-06115

$1.97

17

BOLT | MODEL R

09116-06167

$2.19

18

COVER

35158-43400

$2.17

19

REFLECTOR, FRONT SIDE

35950-14A00

$15.95

20

BRACKET, REFLECTOR RH This part replaces 35956-14D00.

35956-14D01

Unavailable

20

BRACKET, REFLECTOR LH This part replaces 35957-14D00.

35957-14D01

Unavailable
