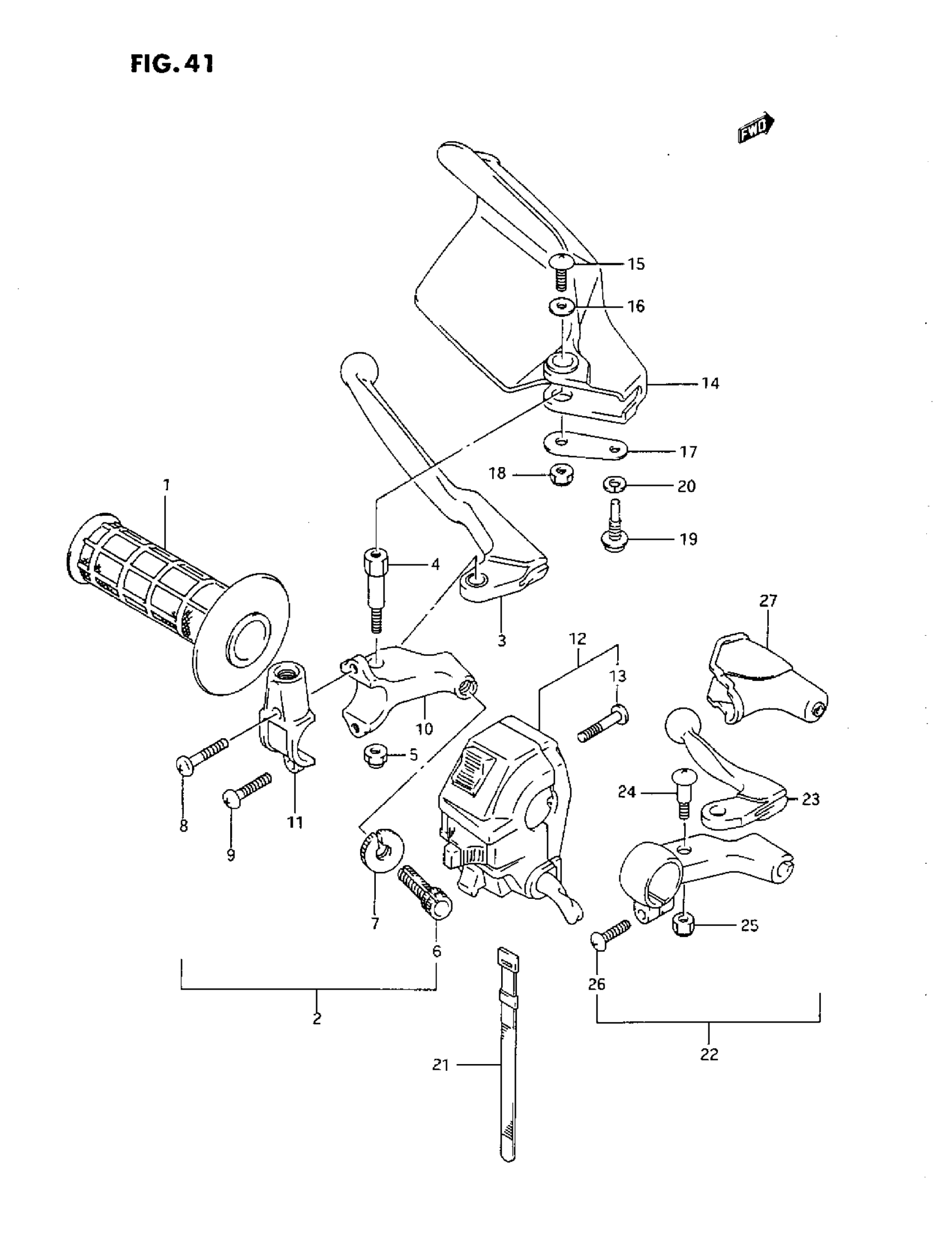

Suzuki DR350S (1993) LEFT HANDLE SWITCH (L/M/N/P) Diagram

#

Description
Price

1

GRIP LH

57211-27C00

$11.25

2

LEVER ASSY, CLUTCH

57500-15D00

Unavailable

3

LEVER

57620-14300

$18.53

4

BOLT

57631-05D00

$8.03

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

6

ADJUSTER

57441-11010

$5.14

7

NUT

57442-05D00

$9.25

8

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

$4.45

9

SCREW

09125-05102

$1.61

10

HOLDER, LEVER

57511-14300

Unavailable

11

BRACKET, HOLDER

57512-03D00

Unavailable

12

SWITCH ASSY,HAN This part replaces 37400-03D12.

37400-15D21

$140.28

13

.SCREW This part replaces 02112-05305.

02112-0530B

$1.45

14

COVER, KNUCKLE, LH (BLUE)

57541-05D01-0NF

$52.15

15

SCREW

09125-05042

$1.98

16

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

17

PLATE, COVER , LH

57542-05D00

$4.70

18

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

19

SCREW This part replaces 09139-06010.

09139-06086

$3.42

20

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

21

BAND

09407-12402

$2.80

22

LEVER ASSY,DECO This part replaces 58700-38200.

58700-38210

$170.18

23

LEVER

58731-38200

$55.78

24

BOLT

57431-01012

$4.93

25

NUT

57633-38200

Unavailable

26

SCREW This part replaces 02112-06205.

02112-0620A

$1.45

27

COVER, DECOMP LEVER

57342-37101

Unavailable
