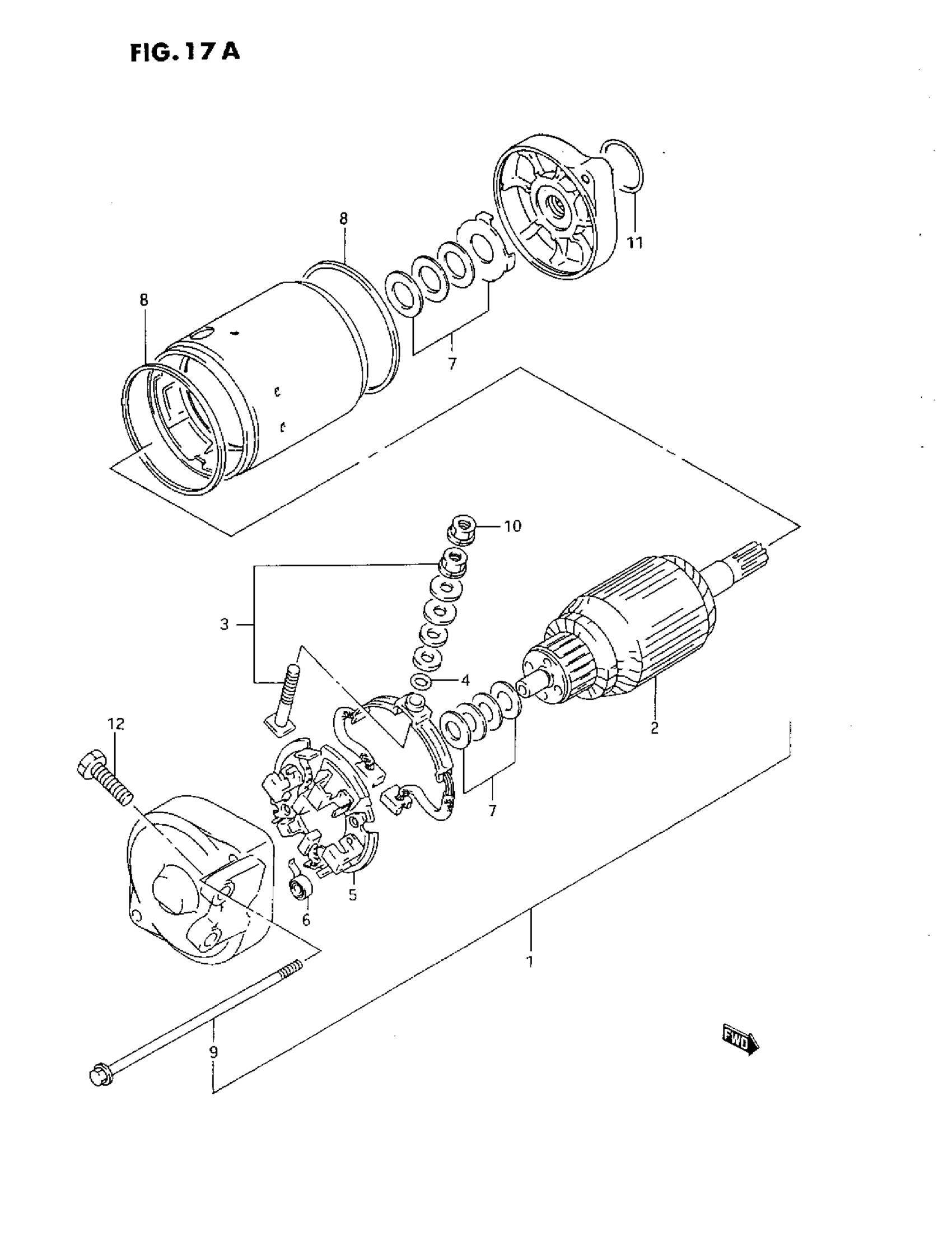

Suzuki DR350S (1993) STARTING MOTOR (R) Diagram

MOTOR ASSY, STARTING

31100-47D01

Unavailable

ARMATURE

31310-15D00

Unavailable

TERMINAL SET, BRUSH

31130-38B00

$78.27

O-RING

31143-49040

$3.50

HOLDER SET, BRUSH

31132-38B00

$78.27

SPRING, BRUSH

31135-38B00

$6.10

WASHER SET

31170-19B10

$14.18

O RING This part replaces 31264-31300.

31264-32E00

$6.29

BOLT

31280-26D00

$23.08

NUT This part replaces 08361-35066.

08361-3506A

$1.81

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$2.80
