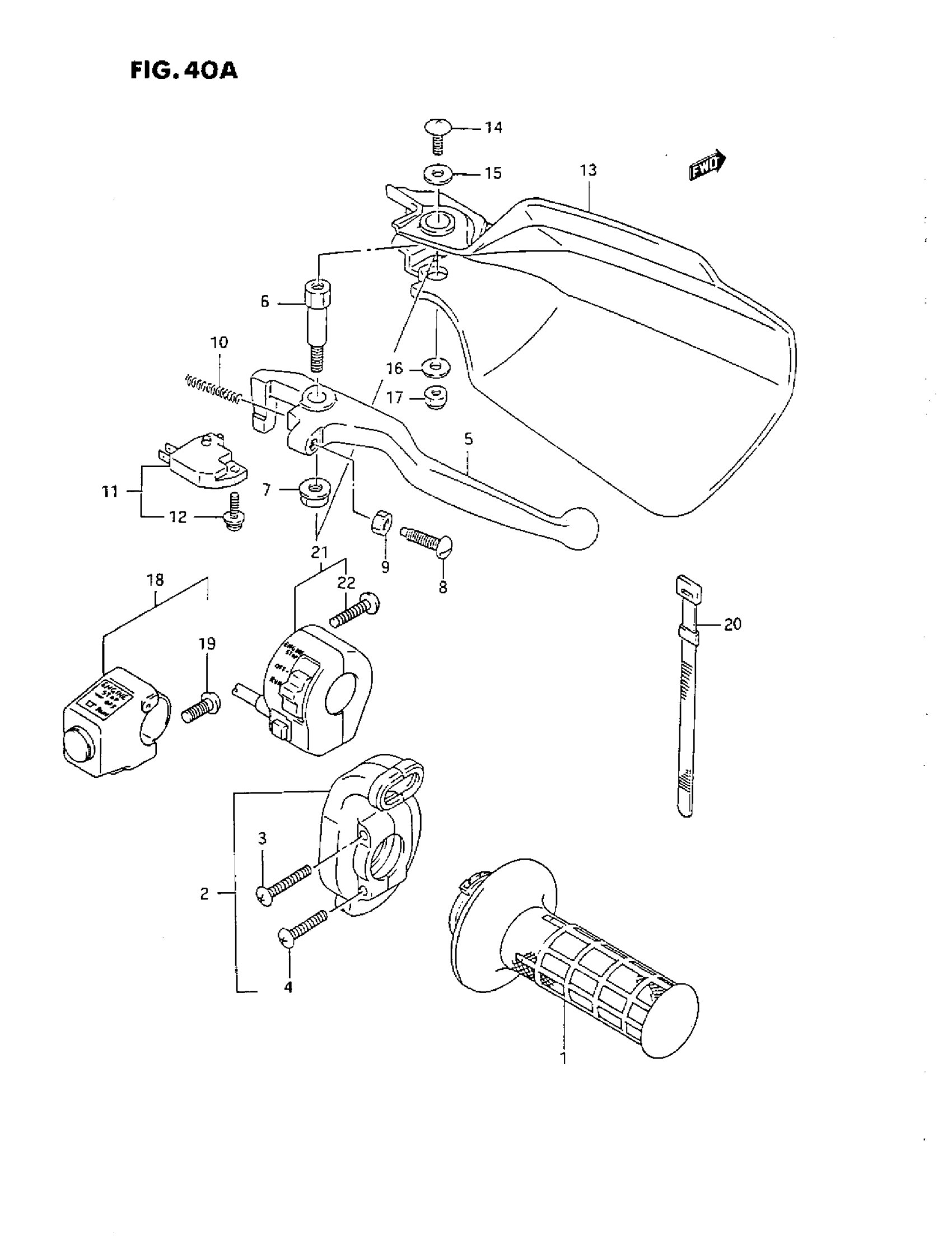

Suzuki DR350S (1993) RIGHT HANDLE SWITCH (N/P/R) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D11

$50.22

2

CASE ASSY THROTTLE

57100-14D00

$93.58

3

SCREW

09125-05066

$1.52

4

SCREW This part replaces 02112-05205.

02112-0520B

$1.86

5

LEVER, BRAKE

57421-03D00

$13.76

6

SCREW

57431-05D00

$14.50

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

8

BOLT, ADJUST

57431-14511

$5.46

9

NUT This part replaces 08310-12055.

08310-0005A

$1.83

10

SPRING, RETURN

57318-14502

$4.09

11

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$35.21

12

SCREW

57465-17C00

$2.37

13

COVER, KNUCKLE RH (BLUE)

57341-05D00-0NF

$45.43

14

SCREW (5X10) | MODEL N/P

09125-05042

$1.98

14

SCREW (5X10) | MODEL R

02142-05107

$1.10

15

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

16

.WASHER (6.5X16X1.6) This part replaces 09160-06042.

09160-06130

$1.89

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

18

SWITCH ASSY,HAN | MODEL N/P This part replaces 37200-14D01.

37200-44E00

Unavailable

19

.SCREW | MODEL N/P This part replaces 02112-05166.

02112-0516A

$1.45

20

BAND

09407-12402

$2.80

21

SWITCH ASSY, HANDLE,RH | MODEL R This part replaces 37200-15D40.

37200-15D60

Unavailable

22

SCREW | MODEL R This part replaces 02112-04205.

02112-0420A

$1.30
