1993 Suzuki DR350S Magneto Diagram

← All diagrams

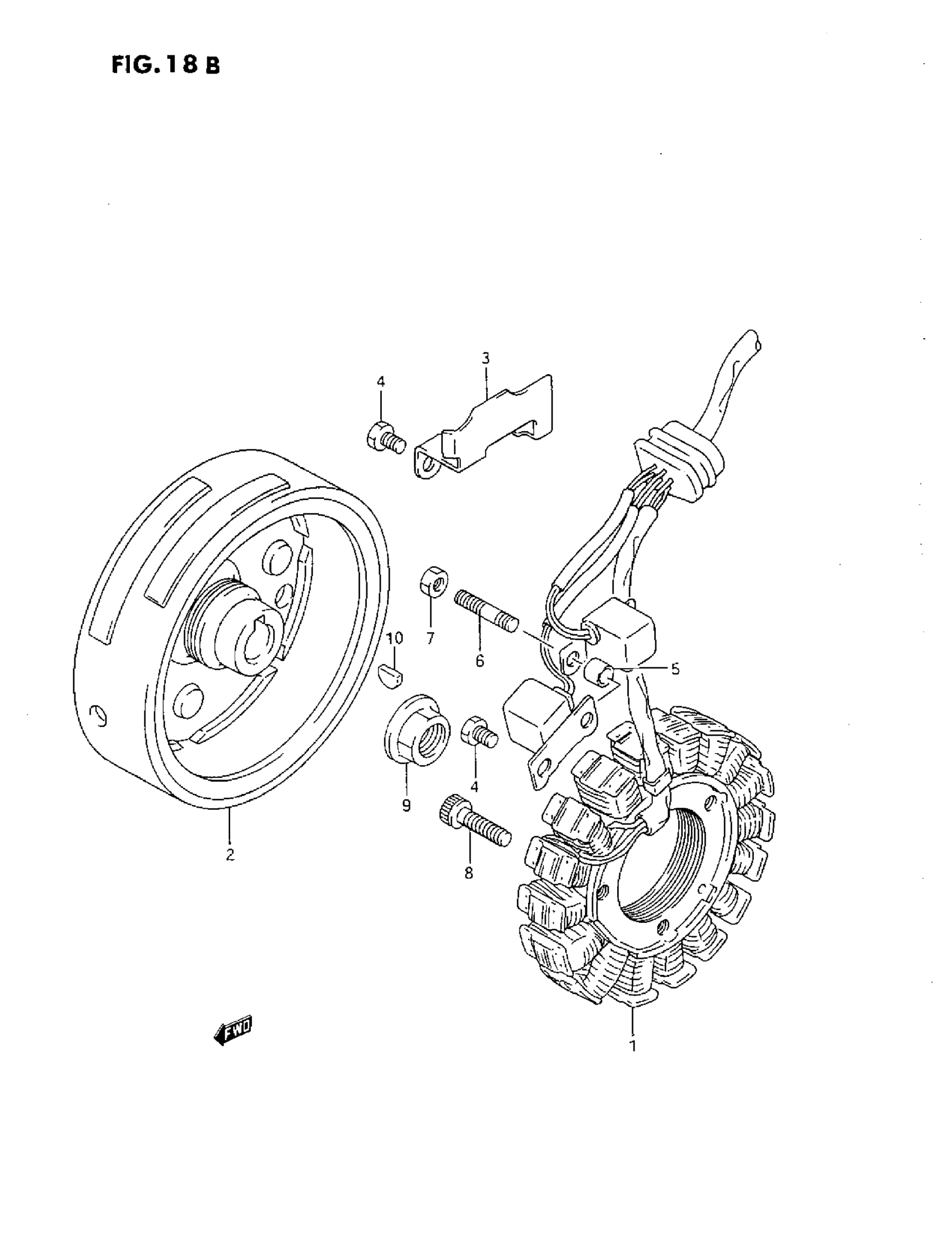

Find the part on the Magneto diagram for your 1993 Suzuki DR350S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR350S Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$739.50

In stock

2

ROTOR

32102-14D50

1
Out of stock

3

CLAMP, MAGNETO LEAD WIRE

32371-15D00

1
Out of stock

4

BOLT (5X10)

09100-05019

3
Out of stock

5

SPACER This part replaces 09180-05009.

09180-05053

1
Out of stock

6

STUD BOLT (L:18)

09108-05014

1
Out of stock

7

NUT This part replaces 08310-00053.

08310-0005A

1
Out of stock

8

BOLT This part replaces 07130-06253.

07130-0625B

3
Out of stock

9

NUT

09159-14015

1

$5.17

In stock

10

KEY This part replaces 08341-31049.

09420-04008

1
Out of stock
← Magneto Right Handle Switch →

More Electrical diagrams
