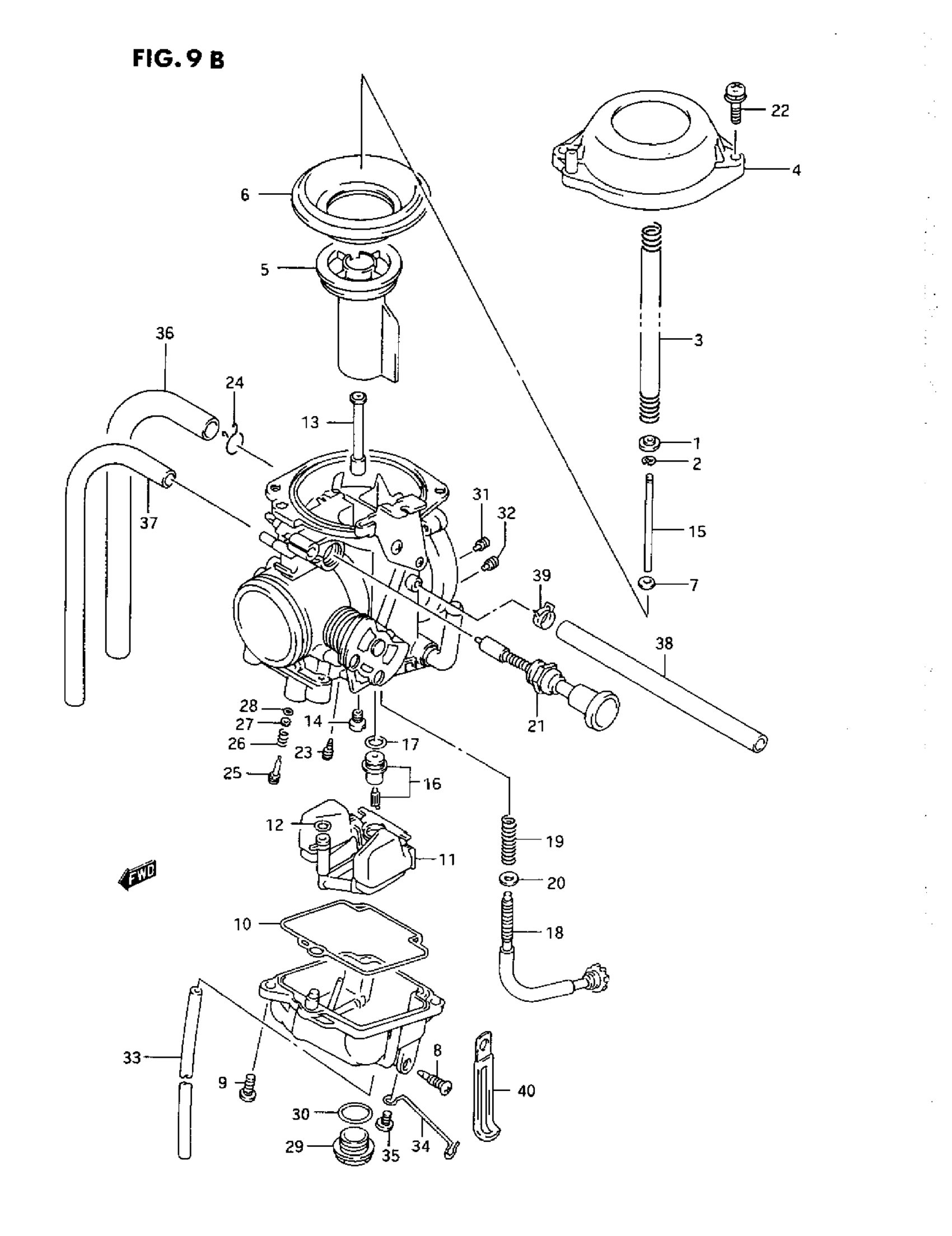

Find the part on the Carburetor diagram for your 1993 Suzuki DR350S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR350S Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY This part replaces 13200-14EP0.

13200-14EP1

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13200-14ES0.

13200-14ES1

1
Out of stock

1

RING

13382-42A00

1
Out of stock

2

E RING

13394-01D00

1
Out of stock

3

SPRING

13417-44B00

1
Out of stock

4

COVER, DIAPHRAGM

13502-01D00

1
Out of stock

5

VALVE, PISTON

13551-44B10

1
Out of stock

6

DIAPHRAGM This part replaces 13507-44B00.

13507-44B01

1
Out of stock

7

RING

13387-47010

1
Out of stock

8

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

1
Out of stock

9

SCREW This part replaces 13602-05128.

02112-05127

2
Out of stock

10

GASKET, FLOAT CHAMBER

13258-44B00

1
Out of stock

11

FLOAT ASSY

13240-17E10

1
Out of stock

12

.O RING (16) This part replaces 13278-47090.

13278-47091

1
Out of stock

13

JET, NEEDLE (0-6M) This part replaces 09494-00691.

09494-00883

1
Out of stock

14

JET, MAIN (127.5)

09491-25011

1
Out of stock

15

NEEDLE, JET (5CD16-1)

13383-14D20

1
Out of stock

16

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

1
Out of stock

17

O RING This part replaces 13374-44080.

13374-35C00

1
Out of stock

18

ADJUSTER

13267-15E00

1
Out of stock

19

SPRING

13268-31210

1
Out of stock

20

WASHER

13615-43010

1
Out of stock

21

PLUNGER ASSY This part replaces 13441-14E00.

13411-14E10

1
Out of stock

22

SCREW This part replaces 13602-34390.

02112-7516A

2
Out of stock

23

JET, PILOT (37.5)

09492-35010

1
Out of stock

24

CLIP This part replaces 09401-10410.

09401-10401

1
Out of stock

25

SCREW, PILOT (1 3/4)

13279-47070

1
Out of stock

26

.SPRING (NT:45)

13268-47070

1
Out of stock

27

WASHER

13291-29900

1
Out of stock

28

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

29

CAP, DRAIN

13247-32210

1
Out of stock

30

O-RING

13249-41310

1
Out of stock

31

JET, AIR (1.3)

09493-26004

1
Out of stock

32

JET, AIR (0.6)

09493-60004

1
Out of stock

33

.HOSE (3X5X600) | L:300->150 This part replaces 09352-30503-300.

09352-30504-600

1
Out of stock

34

CLAMP

13671-15D60

1
Out of stock

35

SCREW

02112-05087

1
Out of stock

36

HOSE(7X11X600) | L:600->200 This part replaces 09352-70113-600.

09352-70119-600

1
Out of stock

37

HOSE (4.5X8.0X250)

09354-45853

—
Out of stock

38

VALVE ASSY, CHECK This part replaces 13683-35B00.

13520-02C01

1
Out of stock

39

CLIP

13671-14E00

1
Out of stock

40

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock
