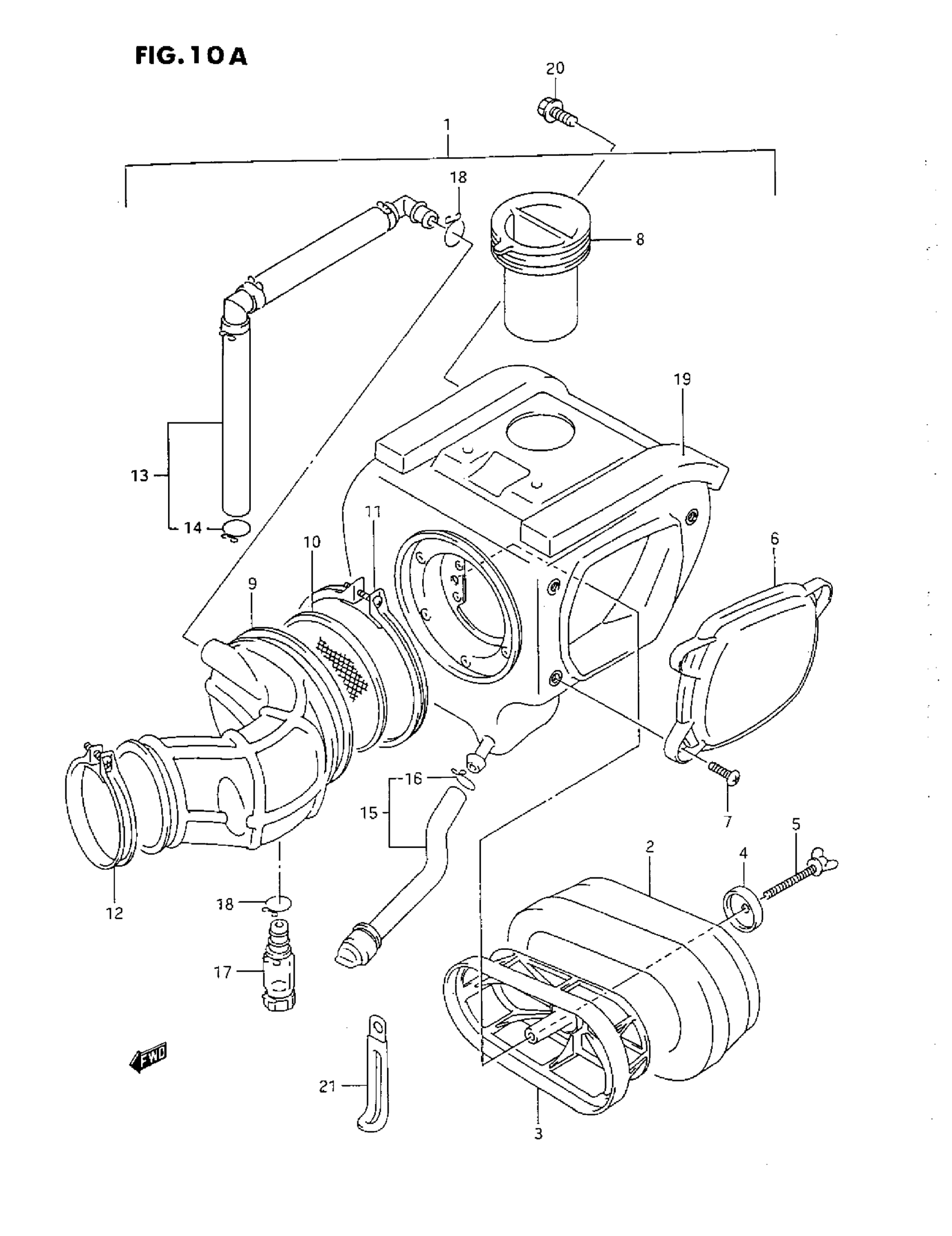

Suzuki DR350S (1993) AIR CLEANER (R) Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-14D40

Unavailable

2

FILTER

13780-14D02

$42.09

3

HOLDER, FILTER

13791-14D00

$20.75

4

WASHER

13792-13A01

$4.15

5

BOLT, WING

13831-02B00

$5.71

6

CAP, AIR CLEANER

13740-14D00

$24.36

7

SCREW

02142-05207

$1.48

8

TUBE,INLET This part replaces 13891-14D10.

13891-14D11

$23.47

9

TUBE,OUTLET This part replaces 13881-14D30.

13881-14D31

$83.00

10

TRAP, FRAME

13810-14D02

$11.12

11

.CLAMP, OUTLET TUBE

13826-14D01

$8.92

12

CLAMP

09402-66208

$5.21

13

TUBE, BREATHER

13850-14D41

Unavailable

14

CLIP

09401-14301

$2.17

15

TUBE, DRAIN, A

13870-14D20

Unavailable

16

CLIP

09401-14301

$2.17

17

TUBE, DRAIN, B

13872-14D00

$21.62

18

CLIP

09401-14301

$2.17

19

CIJSHION

13736-14D20

Unavailable

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

21

CLAMP This part replaces 09404-08405.

09404-08420

$3.00
