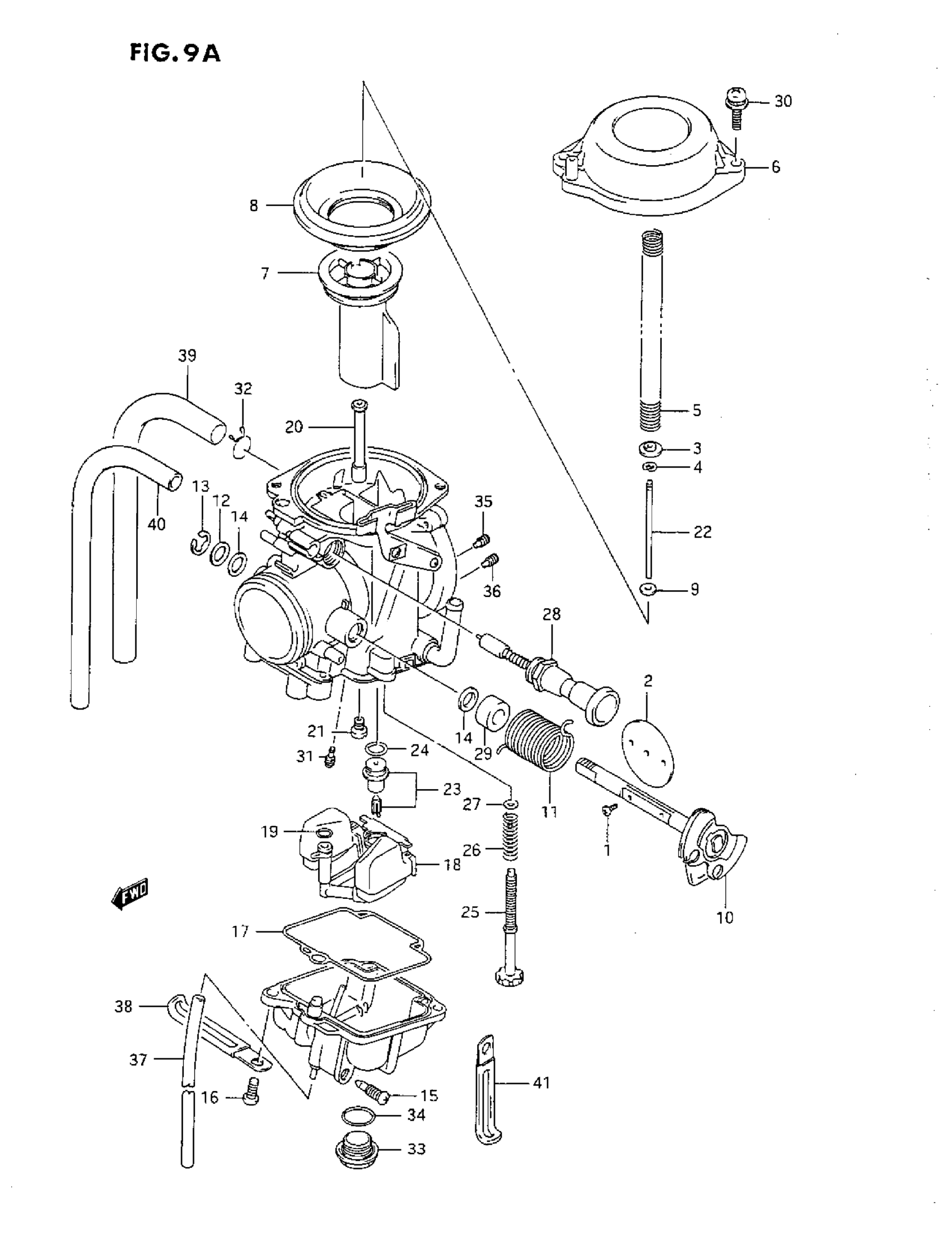

Suzuki DR350S (1993) CARBURETOR (N/P) Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL N

13200-14E20

Unavailable

1

CARBURETOR ASSY | MODEL N, CALIFORNIA ONLY

13200-14E30

Unavailable

1

CARBURETOR ASSY | MODEL P

13200-14E90

Unavailable

1

CARBURETOR ASSY | MODEL P CALIFORNIA ONLY

13200-14EC0

Unavailable

1

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.80

2

VALVE, THROTTLE (115)

13551-45B00

Unavailable

3

RING

13382-42A00

$4.09

4

O-RING

13394-01D00

$4.37

5

SPRING

13417-44B00

$9.78

6

COVER, DIAPHRAGM

13502-01D00

$32.26

7

VALVE, PISTON

13551-44B10

$103.77

8

DIAPHRAGM This part replaces 13507-44B00.

13507-44B01

$22.73

9

RING

13387-47010

$6.80

10

SHAFT ASSY

13550-14E00

Unavailable

11

SPRING

13268-31D00

Unavailable

12

WASHER

13557-47070

$3.38

13

E RING

13617-44080

$2.80

14

SEAL

13556-44B00

$5.00

15

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

16

SCREW This part replaces 13602-05128.

02112-05127

$1.97

17

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

18

FLOAT ASSY | MODEL N

13240-14D20

Unavailable

18

FLOAT ASSY | MODEL P

13240-17E10

$76.43

19

.O RING

13374-46710

$4.09

20

JET, NEEDLE (0-6M) This part replaces 09494-00691.

09494-00883

Unavailable

21

JET , MAIN (135) | MODEL N

09491-27009

$12.95

21

JET, MAIN (127.5) | MODEL P

09491-25011

$12.38

22

NEEDLE, JET (5CD16-1)

13383-14D20

Unavailable

23

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

$62.77

24

O RING This part replaces 13374-44080.

13374-35C00

$5.48

25

ADJUSTER

13267-14D10

Unavailable

26

SPRING

13375-14D10

$5.64

27

WASHER

13427-38300

$2.17

28

PLUNGER ASSY This part replaces 13411-14E00.

13411-14E10

$50.00

29

RING

13574-28A00

Unavailable

30

SCREW This part replaces 13602-34390.

02112-7516A

$2.42

31

JET, PILOT (37.5)

09492-35010

$8.54

32

CLIP This part replaces 13671-48B10.

09401-10401

$1.45

33

CAP, DRAIN

13247-32210

$17.20

34

O-RING

13249-41310

$4.03

35

JET, AIR (1.3)

09493-26004

$18.50

36

JET, AIR (0.6)

09493-60004

$18.33

37

.HOSE (3X5X600) | L:300->150 This part replaces 13683-36A00.

09352-30504-600

$4.49

38

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

$1.76

39

HOSE(7X11X600) | L:300->200 This part replaces 13683-43410.

09352-70119-600

$9.52

40

HOSE,5X10X600 | MODEL N This part replaces 13687-32C00.

44421-13ER0

$9.08

40

HOSE(4.5X8.5X60 | MODEL P This part replaces 13684-36510.

09355-45001-600

$8.55

41

CLAMP This part replaces 09404-06401.

09404-06039

$1.73
