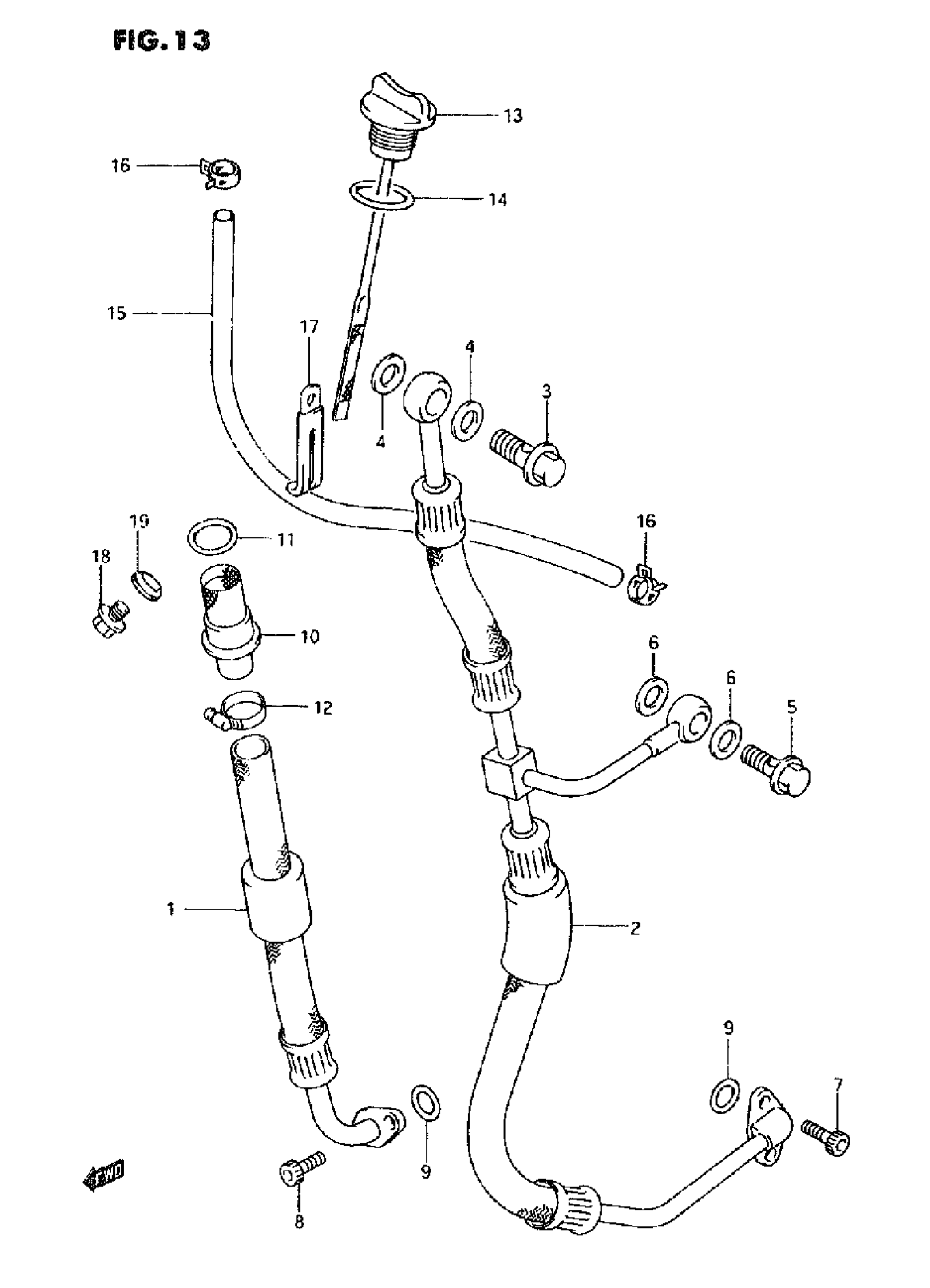

Find the part on the OIL Hose diagram for your 1995 Suzuki DR350, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR350 OIL Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, OIL TANK INLET | MODEL L/M/N/P This part replaces 16460-14D02.

16460-14D03

1
Out of stock

1

HOSE, OIL TANK INLET | MODEL R/S/T

16460-14D03

1
Out of stock

2

HOSE, OIL TANK OUTLET | MODEL L/M/N/P This part replaces 16470-14D02.

16470-14D51

1
Out of stock

2

HOSE, OIL TANK OUTLET | MODEL R This part replaces 16470-14D03.

16470-14D51

1
Out of stock

2

HOSE, OIL TANK OUTLET | MODEL S/T

16470-14D51

1
Out of stock

3

BOLT, UNION

09360-16002

1
Out of stock

4

GASKET (16X22X2)

09168-16003

2
Out of stock

5

BOLT, UNION (12X27) | -E.NO.105403 This part replaces 09360-12009.

09360-12008

1
Out of stock

5

BOLT, UNION (12X27) | E.NO.105404- This part replaces 09360-12010.

09360-12008

1
Out of stock

6

GASKET (12XL6.5X1.5) | MODEL L/M/N/P

09168-12010

2
Out of stock

6

GASKET (12XL7XL.0) | MODEL R/S/T

09168-12017

2
Out of stock

7

BOLT | MODEL L/M/N/P This part replaces 07110-06165.

07130-0616B

2
Out of stock

7

BOLT | MODEL R/S/T This part replaces 07130-06163.

07130-0616B

2
Out of stock

8

BOLT, FRONT BRG HOUSING | MODEL L/M/N/P This part replaces 07110-06205.

07130-0620B

2
Out of stock

8

BOLT, FRONT BRG HOUSING | MODEL R/S/T This part replaces 07130-06203.

07130-0620B

2
Out of stock

9

0 RING (0:2.4, ID:12.3)

09280-12008

2
Out of stock

10

STRAINER, FRAME HEAD UNDER

16550-14D02

1
Out of stock

11

0 RING (D:3.1.ID:22.7)

09280-22008

1
Out of stock

12

CLAMP | MODEL L/M/N/P/R This part replaces 09402-22502.

09402-22511

1
Out of stock

12

CLAMP | MODEL S/T

09402-22511

1
Out of stock

13

GUIDE, OIL LEVEL

16560-14D01

1
Out of stock

14

0 RING (D:3.1, ID:16.8)

09280-17003

1
Out of stock

15

HOSE, OIL OVER FLOW | MODEL L/M/N/P/R This part replaces 16480-14D00.

16480-47D00

1
Out of stock

15

HOSE, OIL OVER FLOW | MODEL S/T

16480-47D00

1
Out of stock

16

CLIP | MODEL L/M/N/P This part replaces 09401-12406.

09401-11415

2
Out of stock

16

CLIP | MODEL R/S/T This part replaces 09401-11407.

09401-11415

2
Out of stock

17

CLAMP | MODEL L/M/N/P This part replaces 09404-06412.

09404-06039

1
Out of stock

17

CLAMP | MODEL R/S This part replaces 09404-06402.

09404-06039

1
Out of stock

17

CLAMP (L:60) | MODEL T

09404-06429

1
Out of stock

18

PLUG, DRAIN | MODEL L

09247-10001

1
Out of stock

18

PLUG, DRAIN | MODEL M/N/P/R/S/T

09247-10008

1
Out of stock

19

GASKET

09168-10002

1
Out of stock
