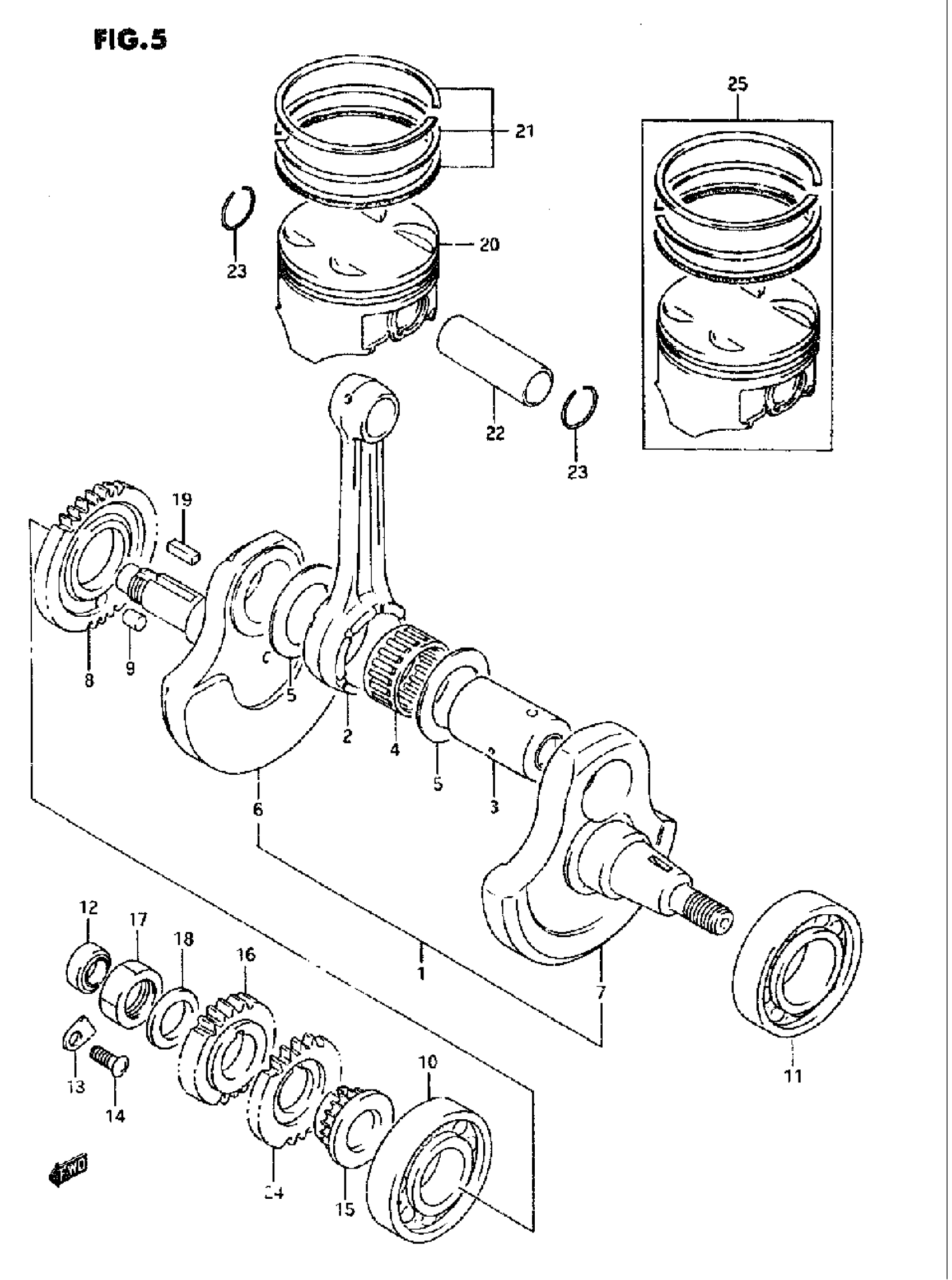

Suzuki DR350 (1995) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-14D00

Unavailable

2

ROD, CONNECTING This part replaces 12161-14000.

12161-14001

$96.27

3

.PIN, CRANK This part replaces 12210-14D02.

12210-14D03

$97.22

4

BEARING

09263-34005

$87.88

5

WASHER

09160-34003

$9.37

6

CRANKSHAFT, RH | MODEL L/M/N/P This part replaces 12221-14D00.

12221-14D01

Unavailable

6

CRANKSHAFT, RH | MODEL R/S/T

12221-14D01

Unavailable

7

CRANKSHAFT, LH

12261-14D00

Unavailable

8

GEAR, BALANCER DRIVE

12661-14D00

Unavailable

9

PIN

04221-08149

$1.98

10

BEARING, RH (3OX72XL9)

09262-30077

$63.52

11

BEARING, LH (35X72XL7)

09262-35038

$42.19

12

OIL SEAL, RH

09282-14003

$7.44

13

PLATE, RH

24742-18A00

$4.92

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

15

SPROCKET, CAM CHAIN DRIVE | NT:17

12731-14D00

$73.01

16

GEAR,PRIMARY DR | MODEL L/M/N/P This part replaces 21111-14D00.

21111-14D01

Unavailable

16

GEAR, PRIMARY DRIVE (NT:20) | MODEL R/S/T This part replaces 21111-15D20.

21111-15D21

Unavailable

17

NUT

09140-18012

$7.55

18

LOCK WASHER | MODEL L/M/N/P/R/S

09164-18001

$2.97

18

LOCK WASHER (ID:18.3) | MODEL T This part replaces 09164-18007.

09164-18001

$2.97

19

KEY, GEAR

09421-05009

$10.37

20

PISTON | MODEL L/M/N/P/R This part replaces 12111-14D00-0F0.

12111-14D03-0F0

$126.48

20

PISTON | MODEL S This part replaces 12111-14D02-0F0.

12111-14D03-0F0

$126.48

20

PISTON | MODEL T

12111-14D03-0F0

$126.48

21

RING SET, PISTON

12140-14D10

$69.35

22

PIN,PISTON

12151-24A00

$20.17

23

CIRCLIP

09381-20004

$1.64

24

NO DESCRIPTION AVAILABLE | MODEL R/S/T This part replaces 16321-15D00.

16321-15D01

Unavailable

25

PISTON SET (OS:0.5) | OPT MODEL L/M/N/P/R/S This part replaces 12100-14D00-050.

12100-14D01-050

$206.73

25

PISTON SET (OS:1.0) | OPT MODEL L/M/N/P/R/S This part replaces 12100-14D00-100.

12100-14D01-100

Unavailable

25

PISTON SET (0S:0.5) | OPT MODEL T

12100-14D01-050

$206.73

25

PISTON SET (OS:I.0) | OPT MODEL T

12100-14D01-100

Unavailable
