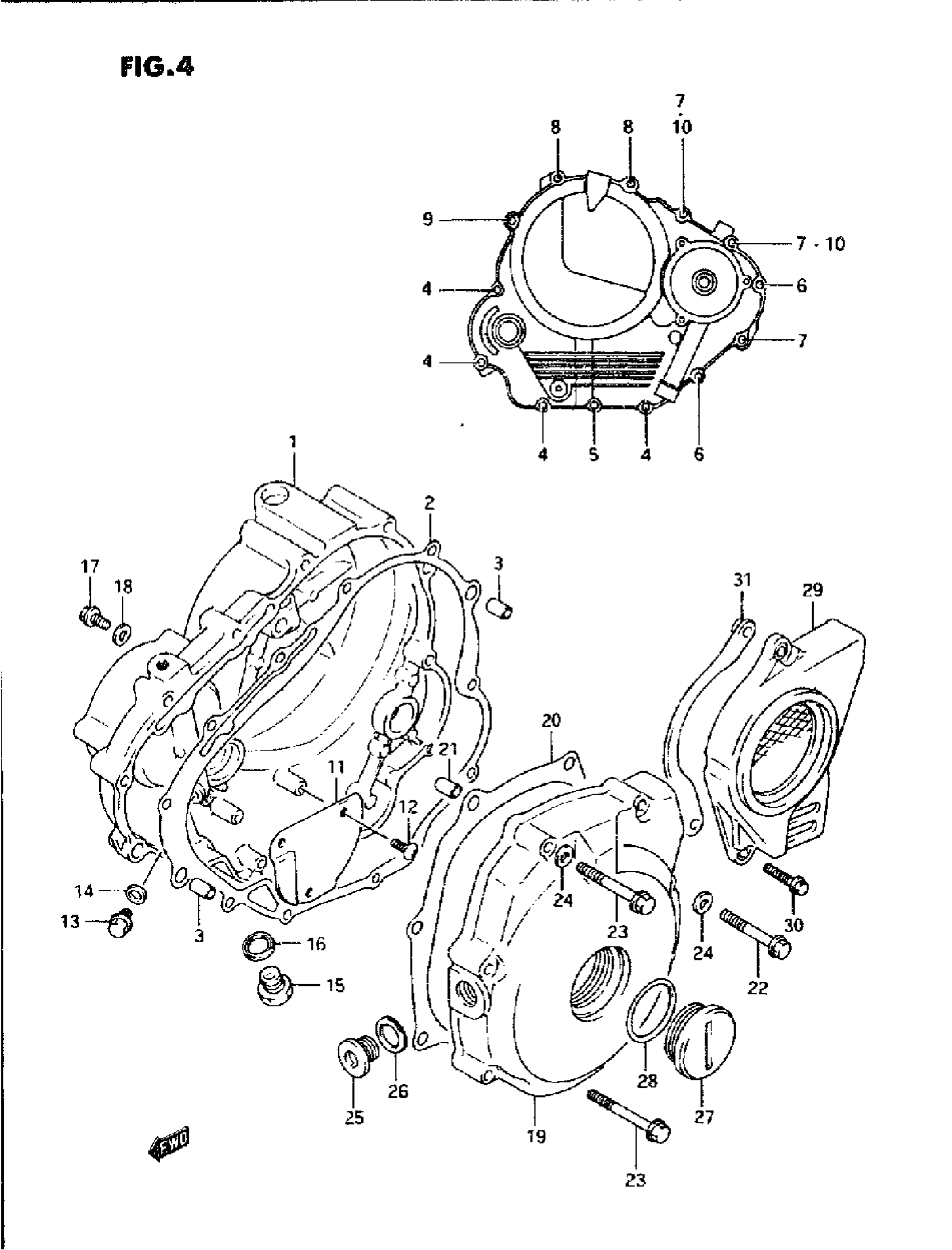

Suzuki DR350 (1995) CRANKCASE COVER Diagram

#

Description
Price

1

COVER SET,CLUTC | MODEL L/M/N This part replaces 11341-14D02.

11340-47811

$322.02

1

COVER SET,CLUTC | MODEL P/RIS/T This part replaces 11341-14D06.

11340-47811

$322.02

2

GASKET, CLUTCH COVER | MODEL L/M/N This part replaces 11482-14D01.

11482-14D03

$17.77

2

GASKET, CLUTCH COVER | MODEL P/R This part replaces 11482-14D02.

11482-14D03

$17.77

2

GASKET, CLUTCH COVER | MODEL S/T

11482-14D03

$17.77

3

PIN

04211-09149

$1.64

4

BOLT | MODEL L/M/N/P

01547-06257

$2.01

4

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

$2.43

5

BOLT | MODEL L/M/N/P

01547-06307

$2.06

5

BOLT, FINAL GEAR CASE | MODEL R/S/T This part replaces 01547-06303.

01547-0630B

$2.73

6

BOLT | MODEL L/M/N/P

01547-06357

$2.01

6

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

$2.73

7

BOLT | MODEL L/M/N/P

01547-06407

$2.34

7

BOLT | MODEL R/S/T This part replaces 01547-06403.

01547-0640B

$2.74

8

BOLT | MODEL L/M/N/P

01547-06607

$3.47

8

BOLT | MODEL R/S/T This part replaces 01547-06603.

01547-0660B

$2.87

9

BOLT | MODEL L/M/N/P/R

01547-06657

$2.77

9

BOLT | MODEL R/S/T This part replaces 01547-06653.

01547-0665B

$2.92

10

GASKET | MODEL L/M/N/P/R

09168-06023

$2.01

10

GASKET | MODEL S/T

09168-06024

$2.19

11

SEPARATOR, OIL RETURN

11349-14D00

Unavailable

12

SCREW (5XLO) | MODEL L/M/N/P

09125-05042

$1.98

12

SCREW | MODEL R/S/7 This part replaces 02142-05103.

02142-0510B

$1.77

13

PLUG, OIL GALLERY

09103-06078

$1.95

14

GASKET

09168-06004

$1.43

15

PLUG, SHAFT | MODEL L/M/N This part replaces 09248-14005.

09248-14011

$2.80

15

PLUG, OIL GALLERY | MODEL P/R/S/T

09248-10007

$7.07

16

GASKET | MODEL L/M/N

09168-14004

$1.69

16

GASKET | MODEL P/R/S/T

09168-10002

$1.96

17

BOLT (6X10) This part replaces 09128-06043.

09128-06058

$2.17

18

GASKET | MODEL L/M/N/P/R

09168-06023

$2.01

18

GASKET | MODEL S/T

09168-06024

$2.19

19

COVER, MAGNETO | MODEL L This part replaces 11351-14D01.

11351-14D02

Unavailable

19

COVER, MAGNETO | MODEL M/N

11351-14D02

Unavailable

19

COVER, MAGNETO | MODEL P/R/S/T

11351-14D10

Unavailable

20

GASKET, MAGNETO COVER | MODEL L/M/N This part replaces 11483-14D01.

11483-14D03

$17.22

20

GASKET, MAGNETO COVER | MODEL P/R/S/T

11483-14D03

$17.22

21

PIN

04211-09149

$1.64

22

BOLT | MODEL L/M/N

01547-06357

$2.01

22

BOLT | MODEL P

01547-06357

$2.01

22

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

$2.73

23

BOLT | MODEL L/M/N

01547-06457

$2.31

23

BOLT | MODEL P

01547-06457

$2.31

23

BOLT | MODEL R/S/T This part replaces 01547-06453.

01547-0645B

$2.73

24

GASKET | MODEL L/M/N/P

09168-06023

$2.01

24

GASKET | MODEL R/S/T

09168-06024

$2.19

25

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

26

GASKET

09168-14002

$2.83

27

PLUG, SHAFT HOLE | MODEL L This part replaces 09259-36016.

09259-36016-20H

$12.45

27

PLUG, CRANK HOLE | MODEL M/N/P/R/S/T

09259-36016-20H

$12.45

28

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

29

COVER, ENGINE SPROCKET

11360-14D01

$100.46

30

BOLT | MODEL L/M/N/P

01547-06257

$2.01

30

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

$2.43

31

PLATE, FRONT CHAIN GUIDE | MODEL L/M/N/P

27640-14D01

Unavailable

31

PLATE, FRONT CHAIN GUIDE | MODEL R/S/T

27640-14D10

$21.28
