2019 Suzuki DR200SL9 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

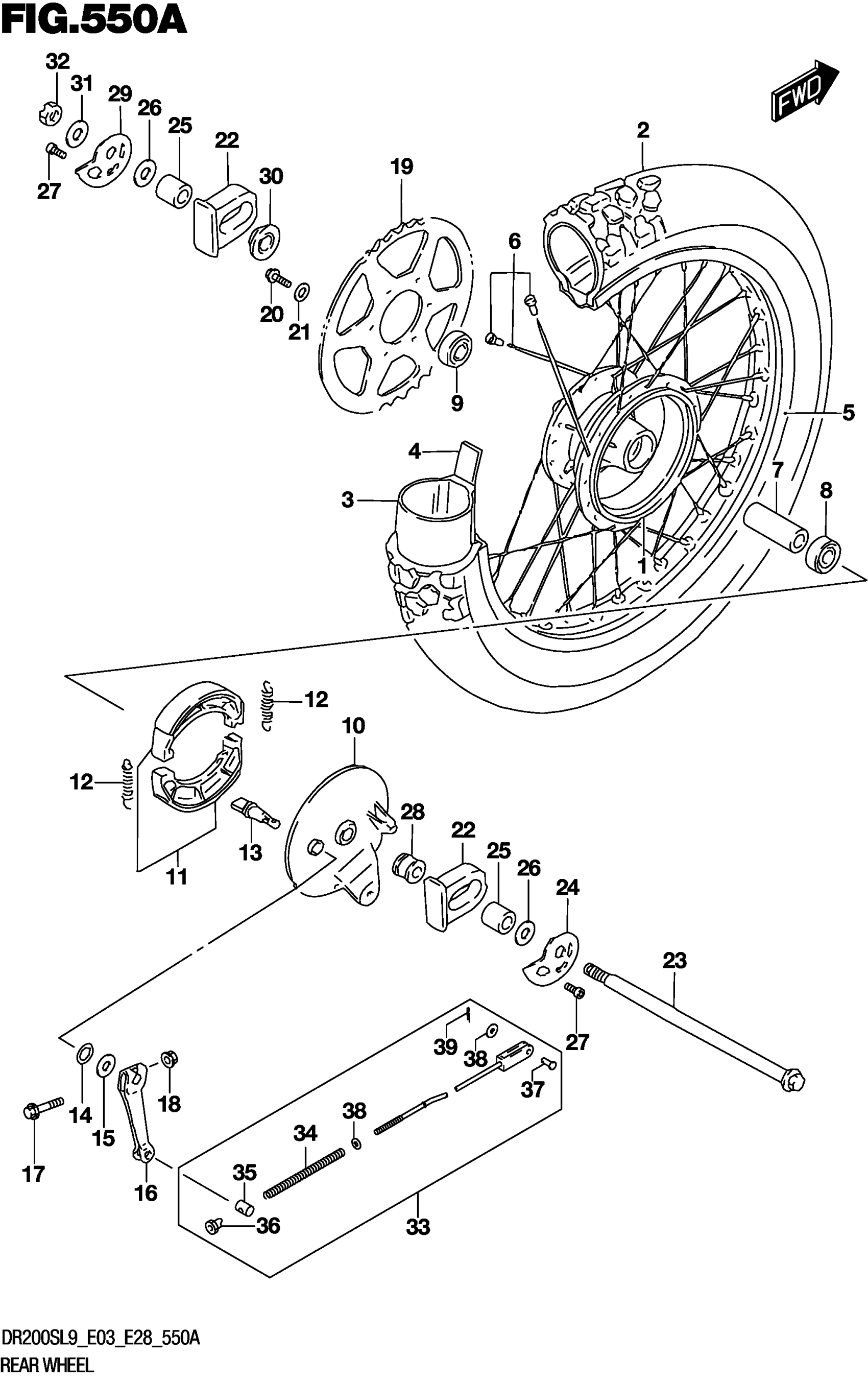

2019 Suzuki DR200SL9 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB

64110-44A10

1
Out of stock

2

TIRE | BRIDGESTONE

65110-42AA0

1

$103.57

In stock

3

TUBE ASSY

65200-42AA1

1
Out of stock

4

PROTECTOR

65261-29231

—
Out of stock

5

RIM

65311-42AA0

1
Out of stock

6

SPOKE ASSY

65320-42AA0

1

$85.09

In stock

7

SPACER (15.3X21.7X107.5)

09180-15013

1
Out of stock

8

BEARING | RH

08143-62027

1
Out of stock

9

BEARING | LH This part replaces 08123-63027.

08123-6302B

1
Out of stock

10

PANEL

64210-44A00

1
Out of stock

11

SHOE SET

54400-07870

1
Out of stock

12

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

13

CAM

54441-29305

1
Out of stock

14

O RING (D:2.5,ID:13.8)

09280-14011

1
Out of stock

15

WASHER (14.5X22X1.6)

09160-14055

1
Out of stock

16

LEVER

64451-30501

1
Out of stock

17

BOLT

01550-0640B

1
Out of stock

18

NUT

08316-1006B

1
Out of stock

19

SPROCKET

64511-42A01

1
Out of stock

20

BOLT (8X30)

09103-08048

6
Out of stock

21

WASHER

09164-08020

6
Out of stock

22

CAP,RR SWINGARM This part replaces 61470-42A00.

61470-42A01

2
Out of stock

23

AXLE

64711-44A11

1
Out of stock

24

ADJUSTER

61411-42A00

1
Out of stock

25

SPACER

61413-42A00

2
Out of stock

26

WASHER (15.5X30X3.2)

09160-15039

2
Out of stock

27

BOLT

61431-42A10

2
Out of stock

28

SPACER

64741-42A00

1
Out of stock

29

ADJUSTER

61421-42A00

1
Out of stock

30

SPACER

64750-42A00

1
Out of stock

31

WASHER (14.5X30X3.2)

09160-14062

1
Out of stock

32

NUT

08319-3114A

1
Out of stock

33

ROD ASSY

43300-42A02

1
Out of stock

34

.SPRING

09440-09004

1
Out of stock

35

.PIN (D:13.0,L:18.0)

09209-13018

1
Out of stock

36

.NUT

09150-06010

1
Out of stock

37

.PIN (10X16)

09200-06013

1
Out of stock

38

WASHER

08322-0106B

2
Out of stock

39

PIN

04111-2020A

1
Out of stock
